PN-1339

BUD | NEMA Polycarbonate | Enclosures
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

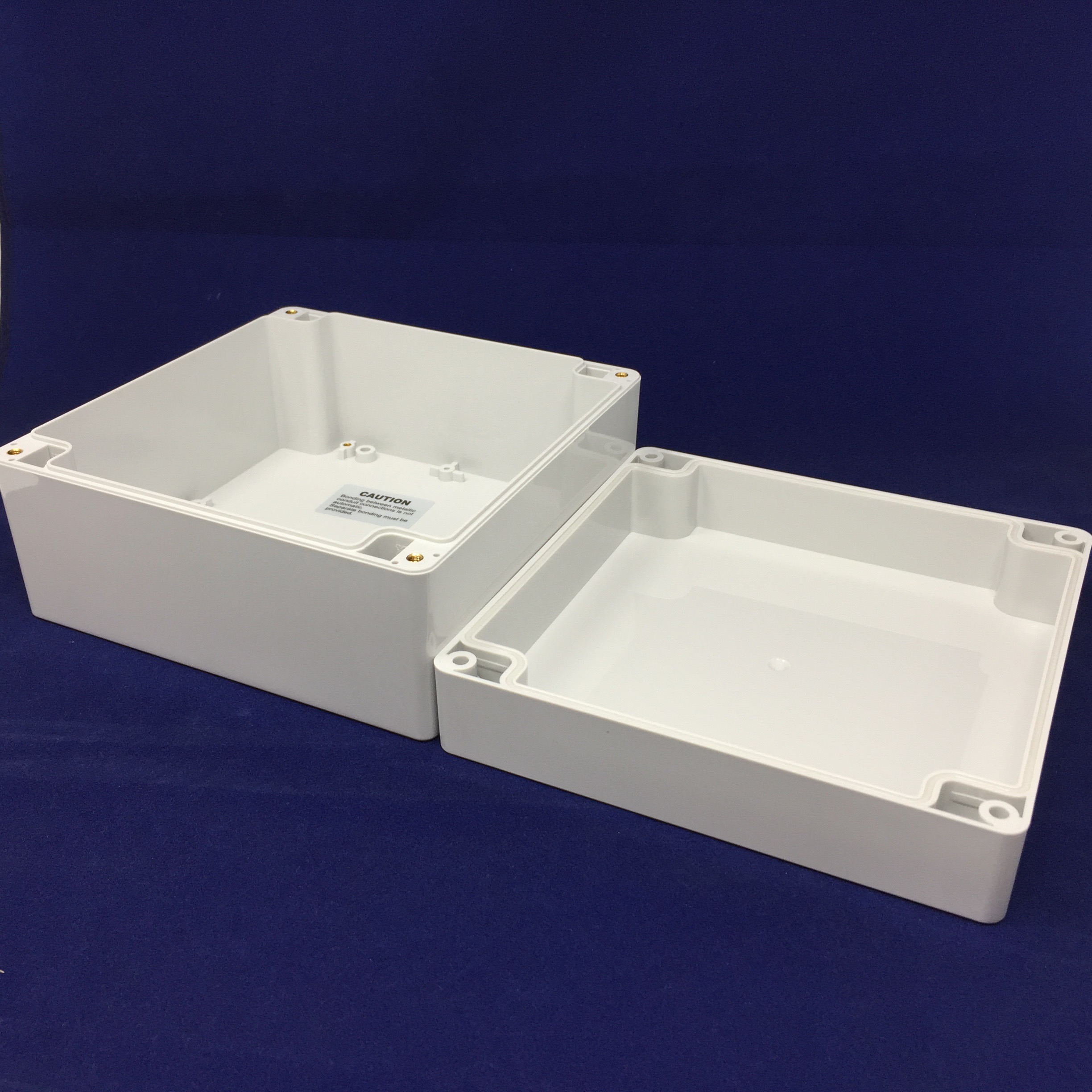

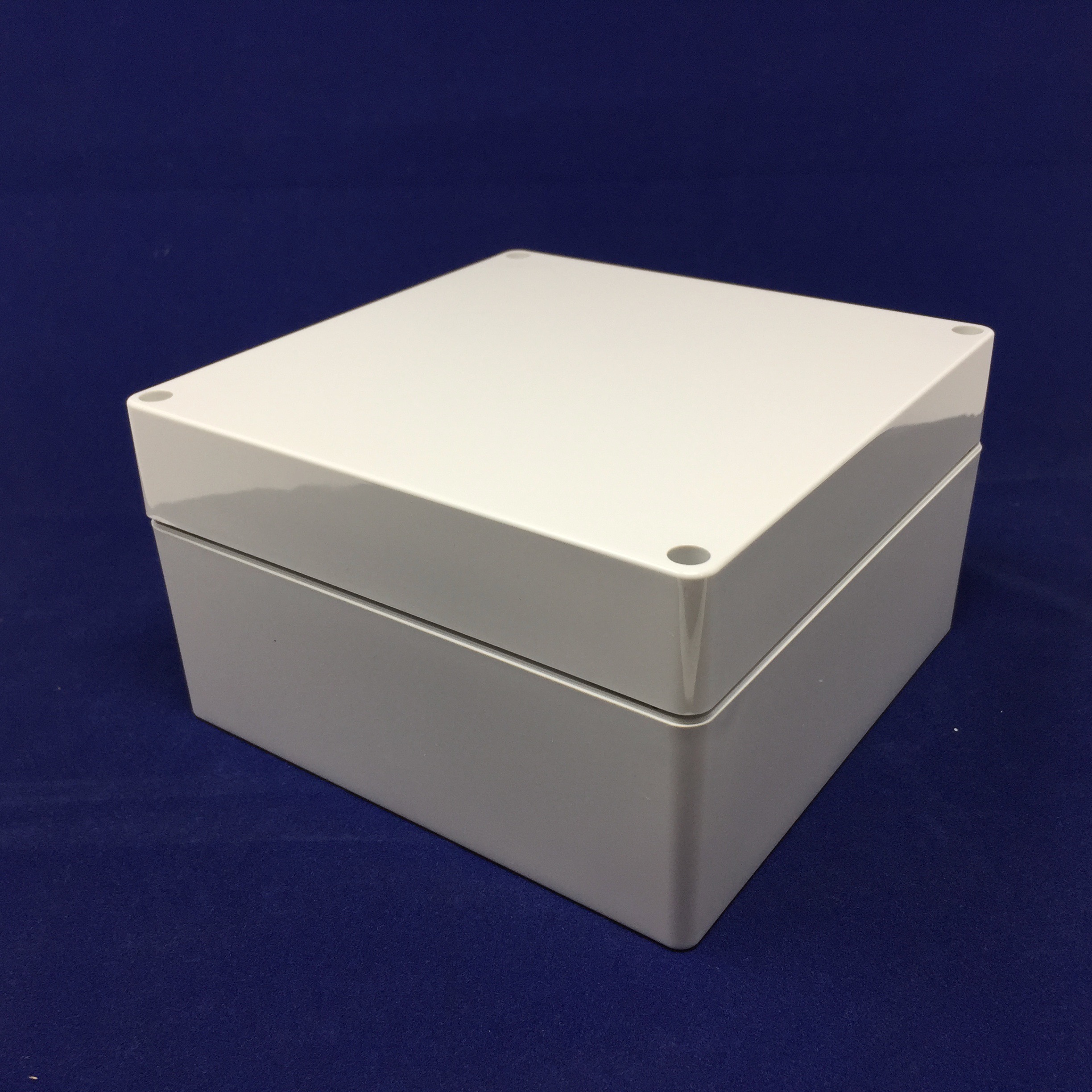

BUD NEMA Polycarbonate 6.06 x 6.06 x 3.31 Inch Internal box with Light gray polycarbonate Body/Cover and No Mounting Bracket

$19.40

Min: 1  Mult: 1

Product Attributes

UPC

666020020017

Color

Light Gray

Material

polycarbonate

Internal Panel PN

PNX-91438

Overall Dim LxWxH

6.30 x 6.30 x 3.54 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

3.54 x 6.3 x 6.3

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

3.54 (In)

External Length

6.30 (In)

External Height (Body Only)

2.36 (In)

External Width

6.30 (In)

Internal Width

6.06 (In)

Internal Length

6.06 (In)

Internal Depth W/Lid

3.31 (In)

Internal Depth (Body only)

2.24 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

13.6 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

6.06 x 6.06 x 3.31 Inch Internal box

Style

Light gray polycarbonate Body/Cover

Mounting Bracket

No Mounting Bracket
