filter--iconPrice List

PN-1338-C

BUD | NEMA Poly. Clear Cover | Enclosures
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

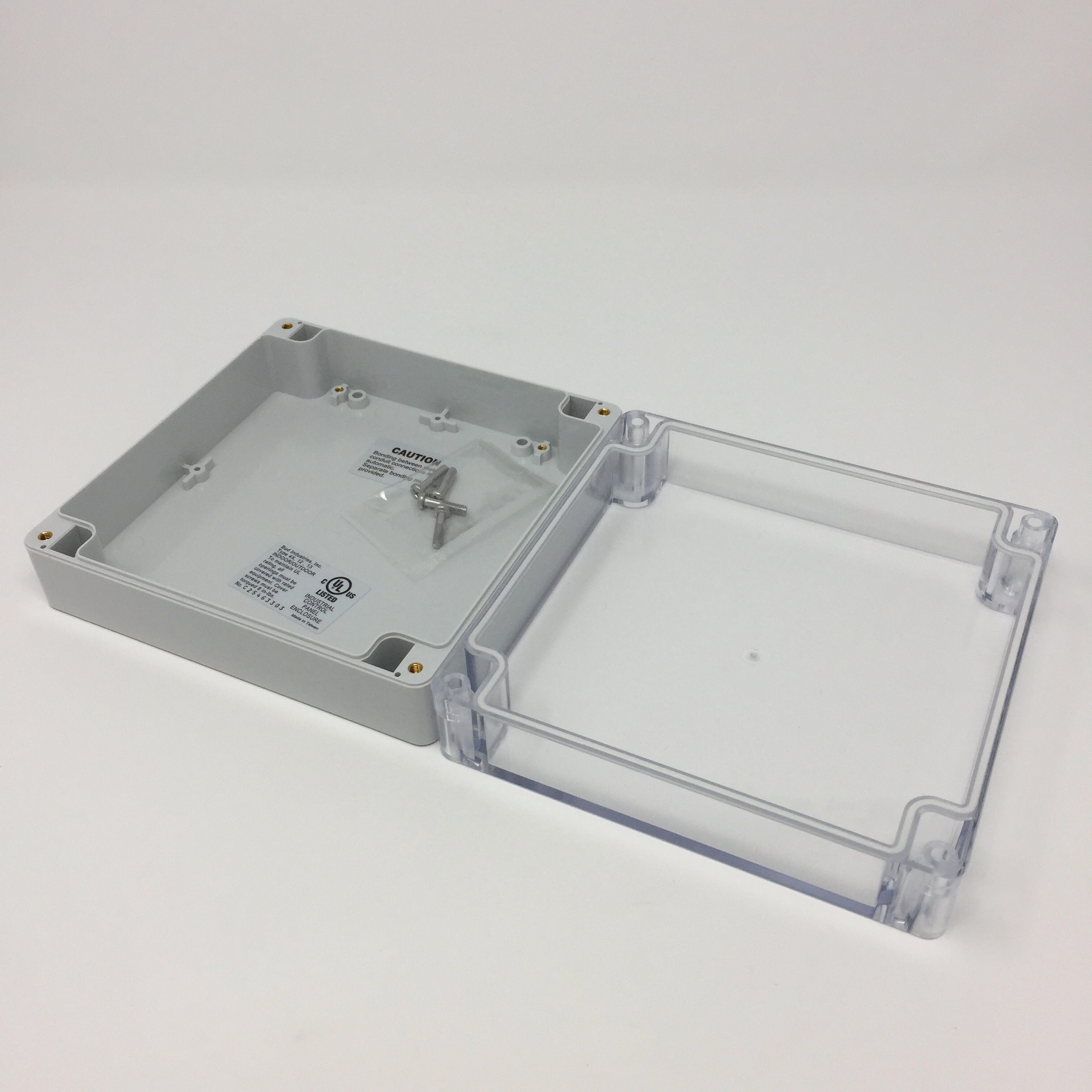

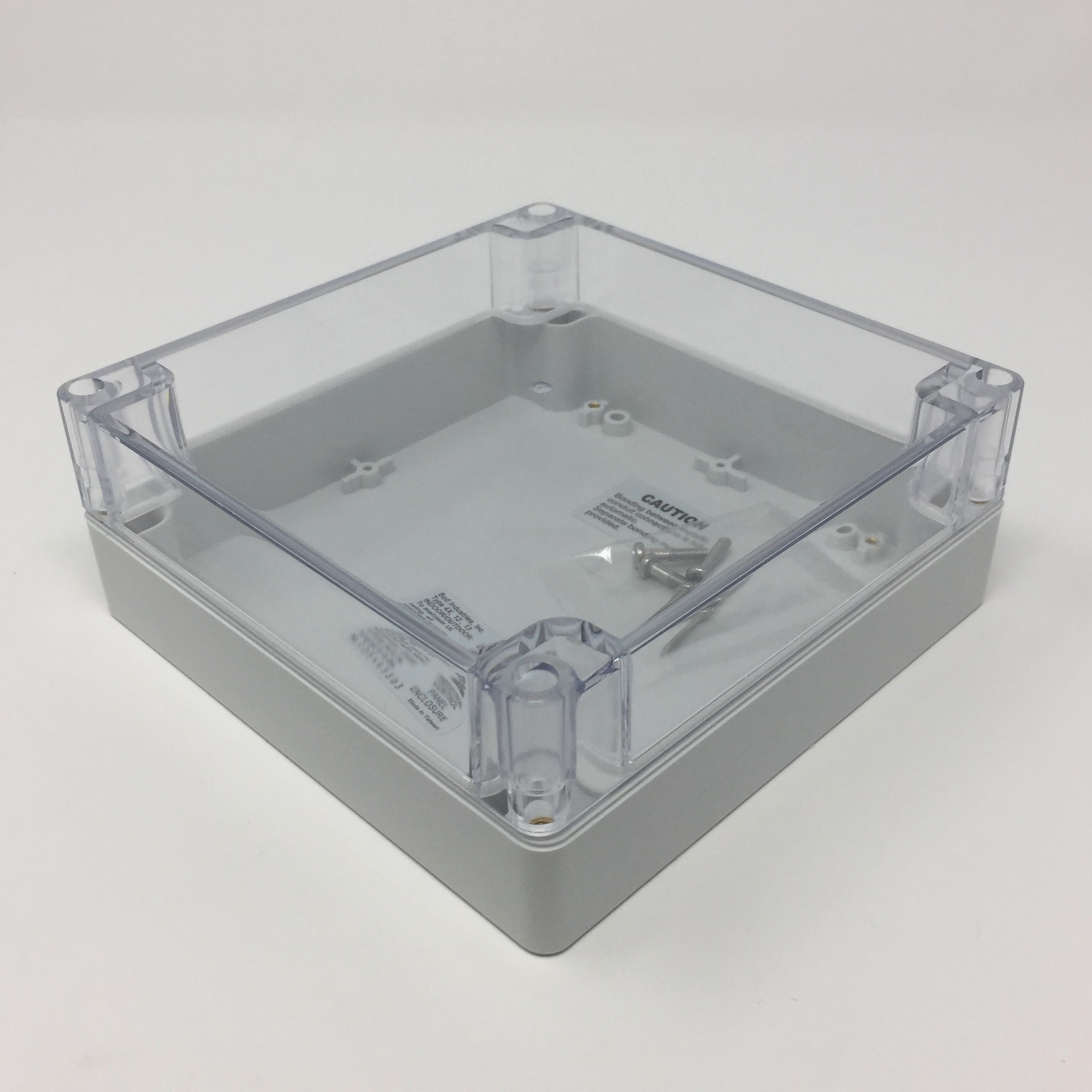

BUD NEMA Polycarbonate 6.06 x 6.06 x 2.12 Inch Internal box with Light Grey body and clear polycarbonate cover and No Mounting Bracket

$18.10

Min: 1  Mult: 1

Product Attributes

UPC

666020026958

Color

Light Gray & Clear Cover

Material

polycarbonate

Internal Panel PN

PNX-91438

Overall Dim LxWxH

6.30 x 6.30 x 2.36 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

2.36 x 6.3 x 6.3

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

2.36 (In)

External Length

6.30 (In)

External Height (Body Only)

1.18 (In)

External Width

6.30 (In)

Internal Width

6.06 (In)

Internal Length

6.06 (In)

Internal Depth W/Lid

2.12 (In)

Internal Depth (Body only)

1.06 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

11.5 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

6.06 x 6.06 x 2.12 Inch Internal box

Style

Light Grey body and clear polycarbonate cover

Mounting Bracket

No Mounting Bracket

Not available at this time.
