PN-1333-DG

BUD | PN-Series Dark Grey | Enclosures
green-check-icon Total Stock: 35
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

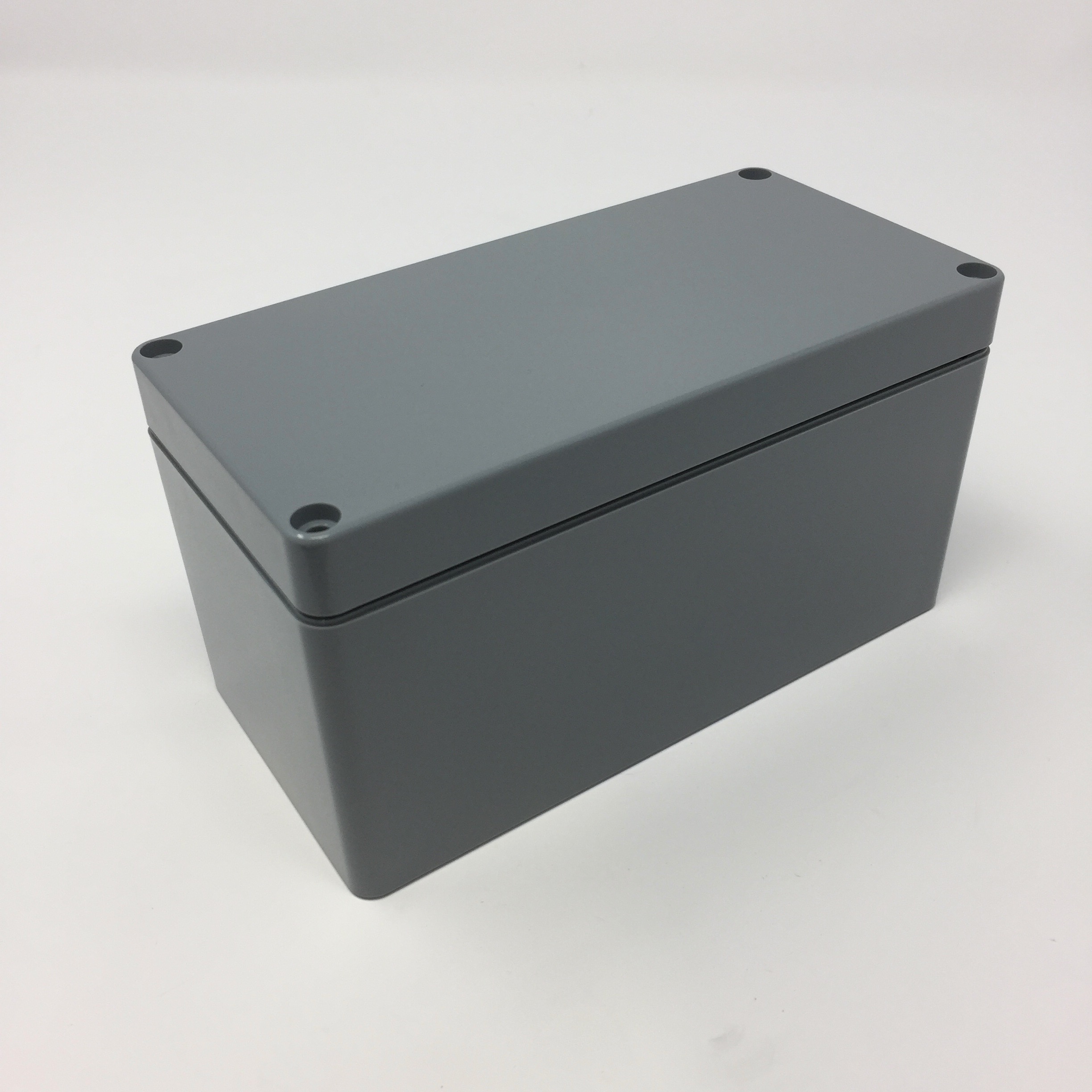

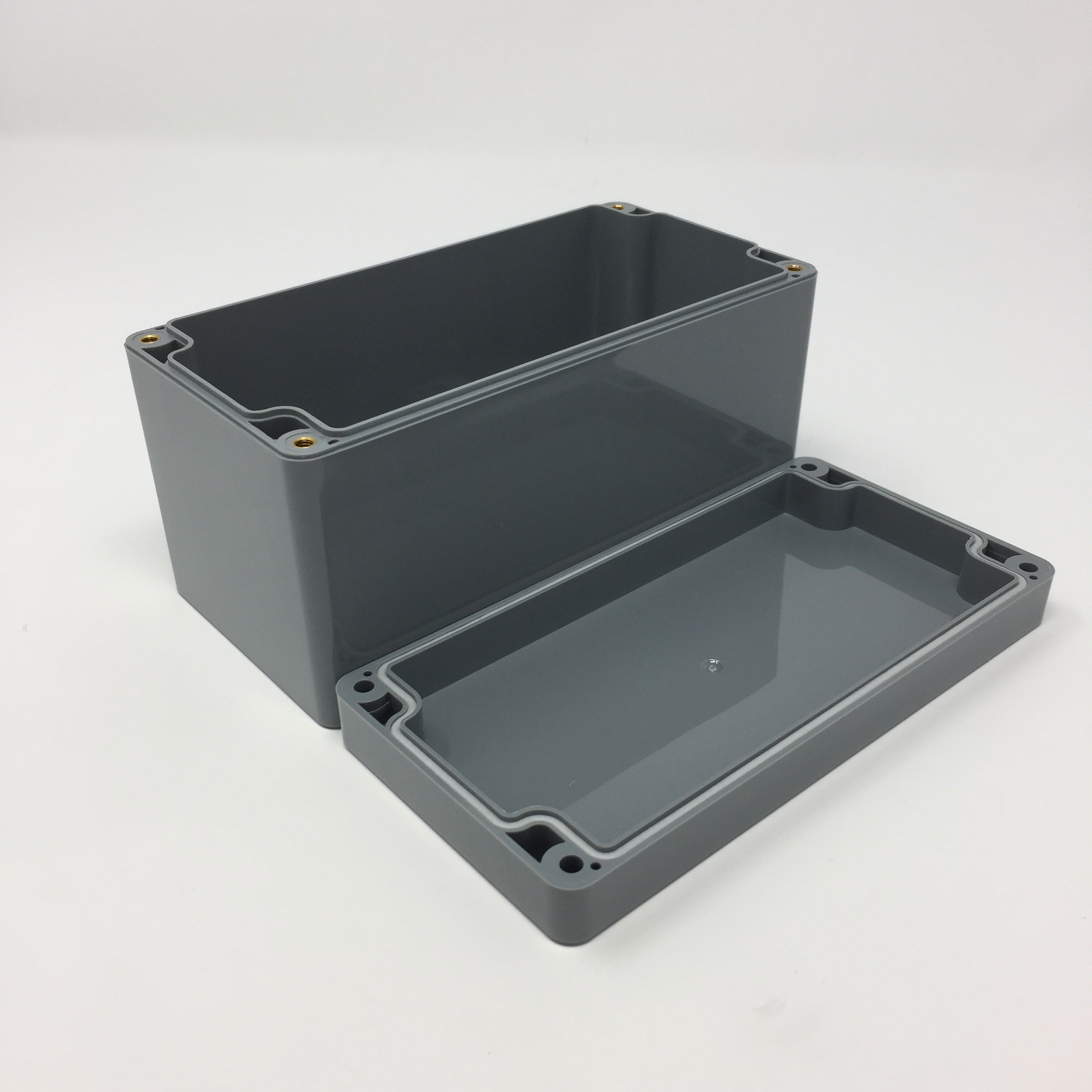

BUD NEMA Polycarbonate 6.60 x 2.91 x 3.08 Inch Internal box with Dark gray ABS body/cover. Indoor Use. and No Mounting Bracket

$10.20

Min: 1  Mult: 1

Product Attributes

UPC

666020015877

Color

Dark Gray

Material

polycarbonate

Internal Panel PN

PNX-91432

Overall Dim LxWxH

6.30 x 3.15 x 3.35 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

3.35 x 3.15 x 6.3

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

3.35 (In)

External Length

6.30 (In)

External Height (Body Only)

2.76 (In)

External Width

3.15 (In)

Internal Width

2.91 (In)

Internal Length

6.60 (In)

Internal Depth W/Lid

3.08 (In)

Internal Depth (Body only)

2.60 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

9.8 (Oz)

Operating Temp.

0C to +80C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

6.60 x 2.91 x 3.08 Inch Internal box

Style

Dark gray ABS body/cover. Indoor Use.

Mounting Bracket

No Mounting Bracket
