filter--iconPrice List

PN-1331-DG

BUD | PN-Series Dark Grey | Enclosures
green-check-icon Total Stock: 20
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

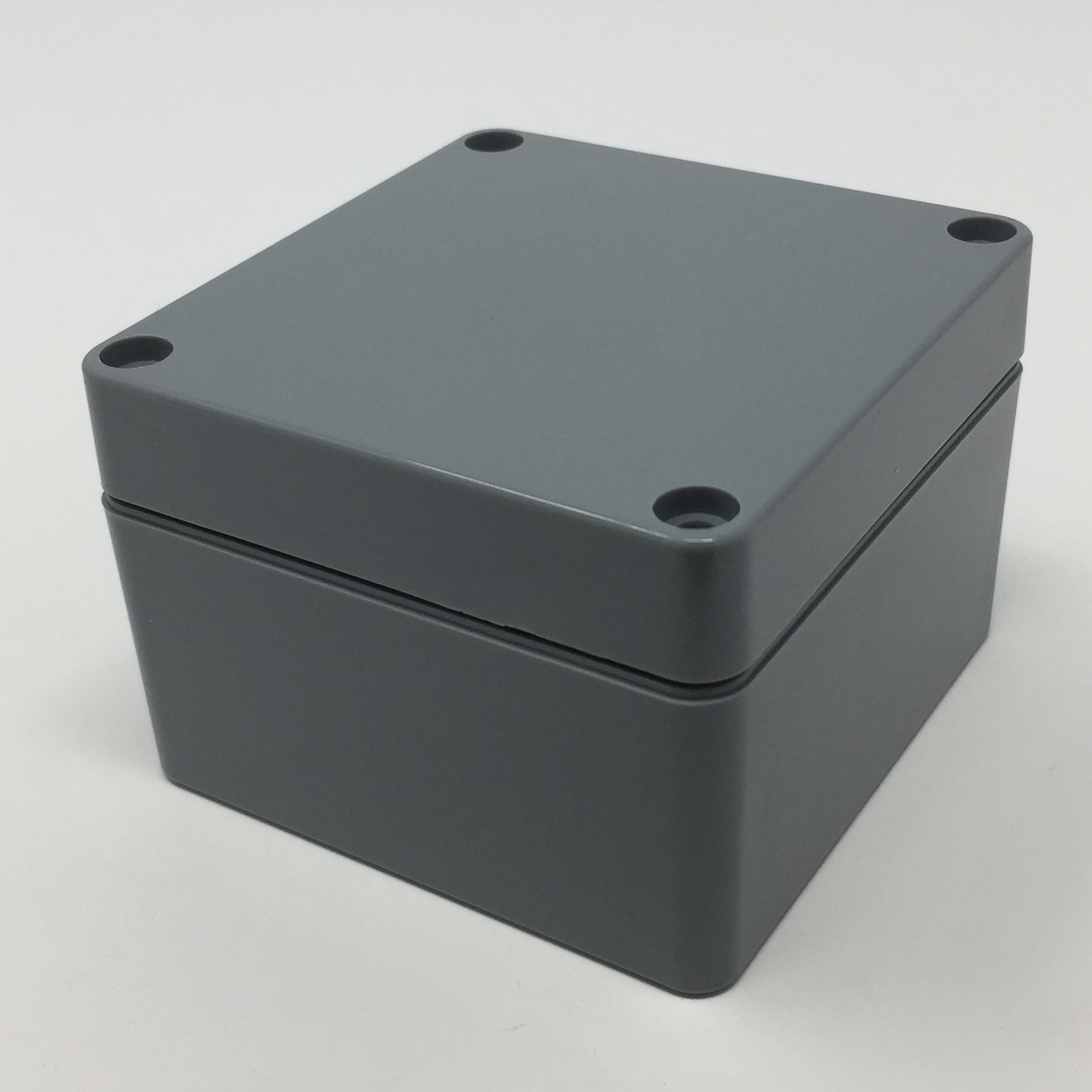

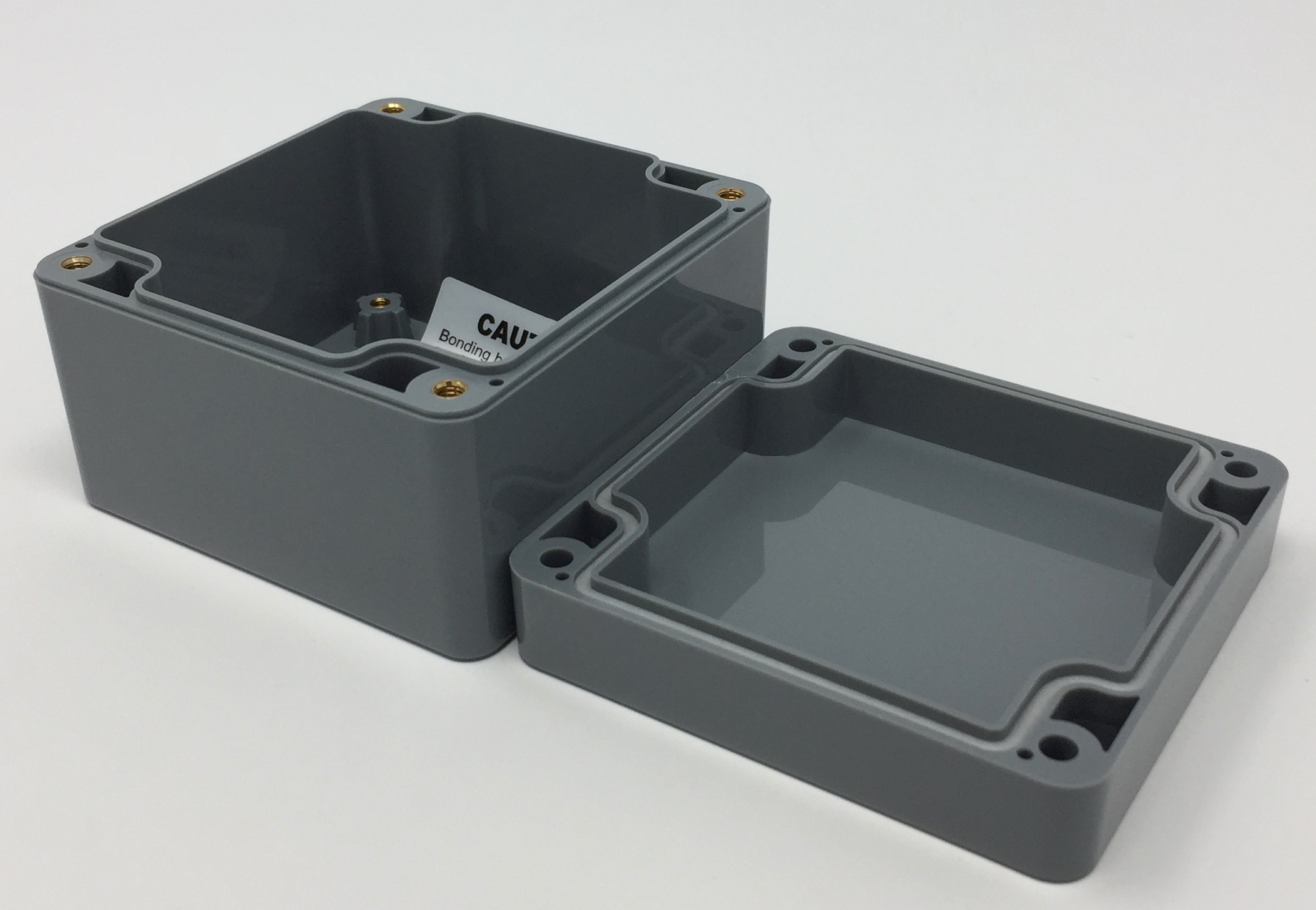

BUD NEMA Polycarbonate 2.99 x 2.91 x 1.89 Inch Internal box with Dark gray ABS body/cover. Indoor Use. and No Mounting Bracket

$6.30

Min: 1  Mult: 1

Product Attributes

UPC

666020026897

Color

Dark Gray

Material

polycarbonate

Internal Panel PN

PNX-91431

Overall Dim LxWxH

3.23 x 3.15 x 2.17 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

2.17 x 3.15 x 3.23

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

2.17 (In)

External Length

3.23 (In)

External Height (Body Only)

1.58 (In)

External Width

3.15 (In)

Internal Width

2.91 (In)

Internal Length

2.99 (In)

Internal Depth W/Lid

1.89 (In)

Internal Depth (Body only)

1.42 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

4.3 (Oz)

Operating Temp.

0C to +80C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

2.99 x 2.91 x 1.89 Inch Internal box

Style

Dark gray ABS body/cover. Indoor Use.

Mounting Bracket

No Mounting Bracket

Not available at this time.
