filter--iconPrice List

PN-1325

BUD | NEMA Polycarbonate | Enclosures
green-check-icon Total Stock: 195
blue-timer-icon Drop Ship Quantity: 175
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

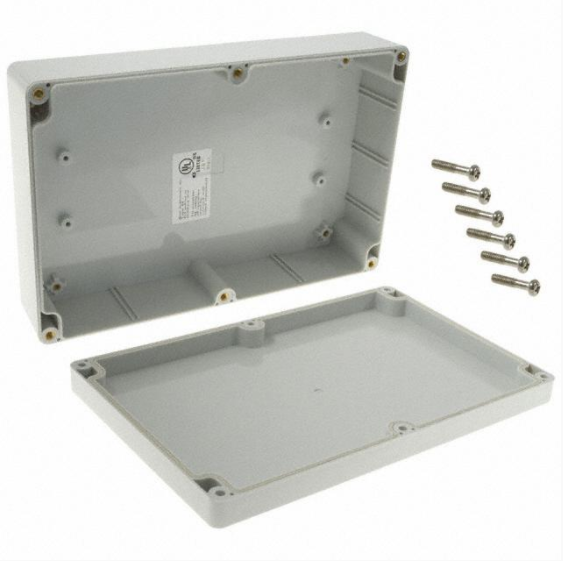

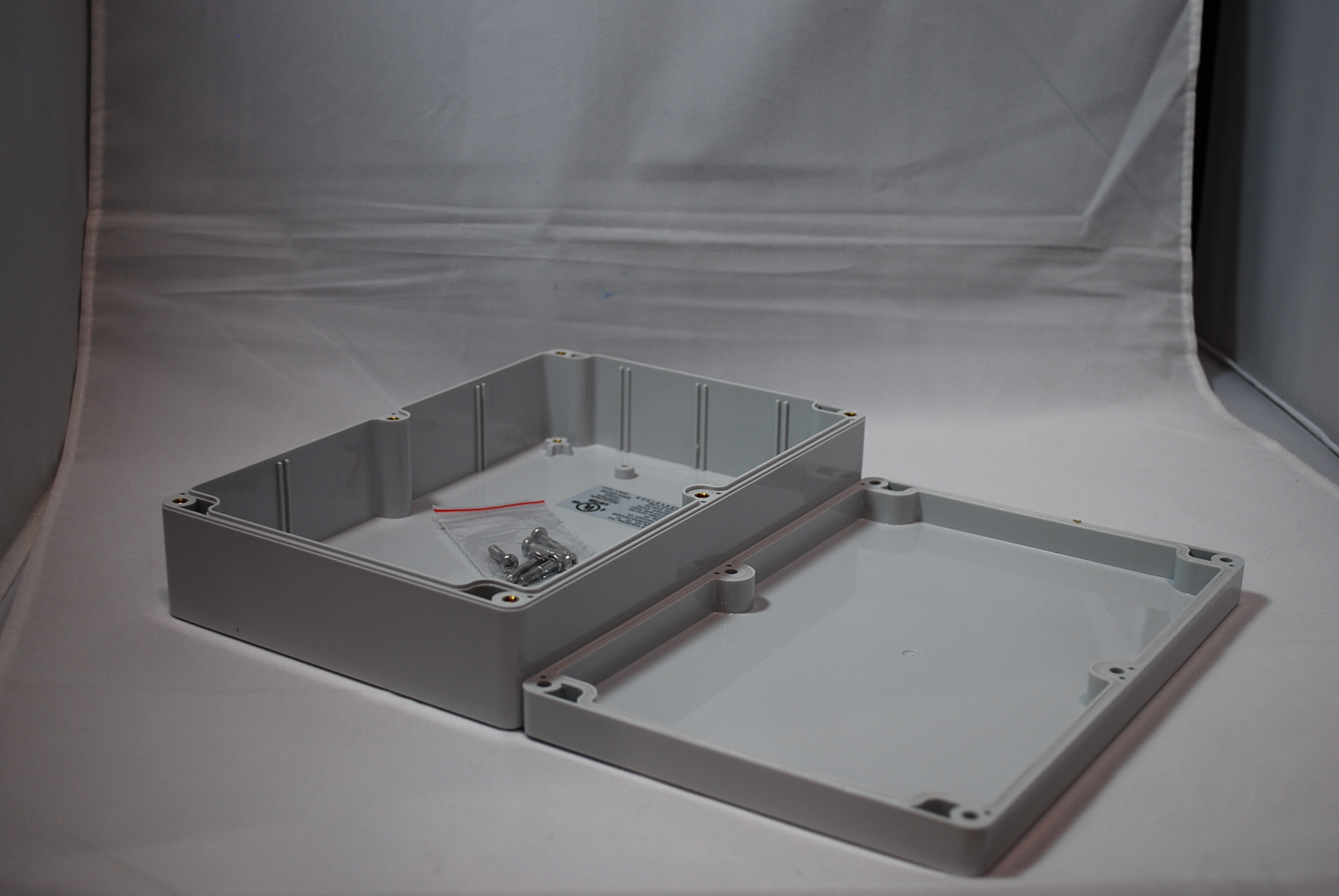

BUD NEMA Polycarbonate 8.37 x 5.39 x 1.93 Inch Internal box with Light gray polycarbonate Body/Cover and No Mounting Bracket

$19.30

Min: 1  Mult: 1

Product Attributes

UPC

666020015761

Color

Light Gray

Material

polycarbonate

Internal Panel PN

PNX-91425

Overall Dim LxWxH

8.74 x 5.75 x 2.17 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

2.17 x 5.75 x 8.74

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

2.17 (In)

External Length

8.74 (In)

External Height (Body Only)

1.58 (In)

External Width

5.75 (In)

Internal Width

5.39 (In)

Internal Length

8.37 (In)

Internal Depth W/Lid

1.93 (In)

Internal Depth (Body only)

1.46 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

15.5 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

8.37 x 5.39 x 1.93 Inch Internal box

Style

Light gray polycarbonate Body/Cover

Mounting Bracket

No Mounting Bracket

Not available at this time.
