PN-1321-C

BUD | NEMA Poly. Clear Cover | Enclosures
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

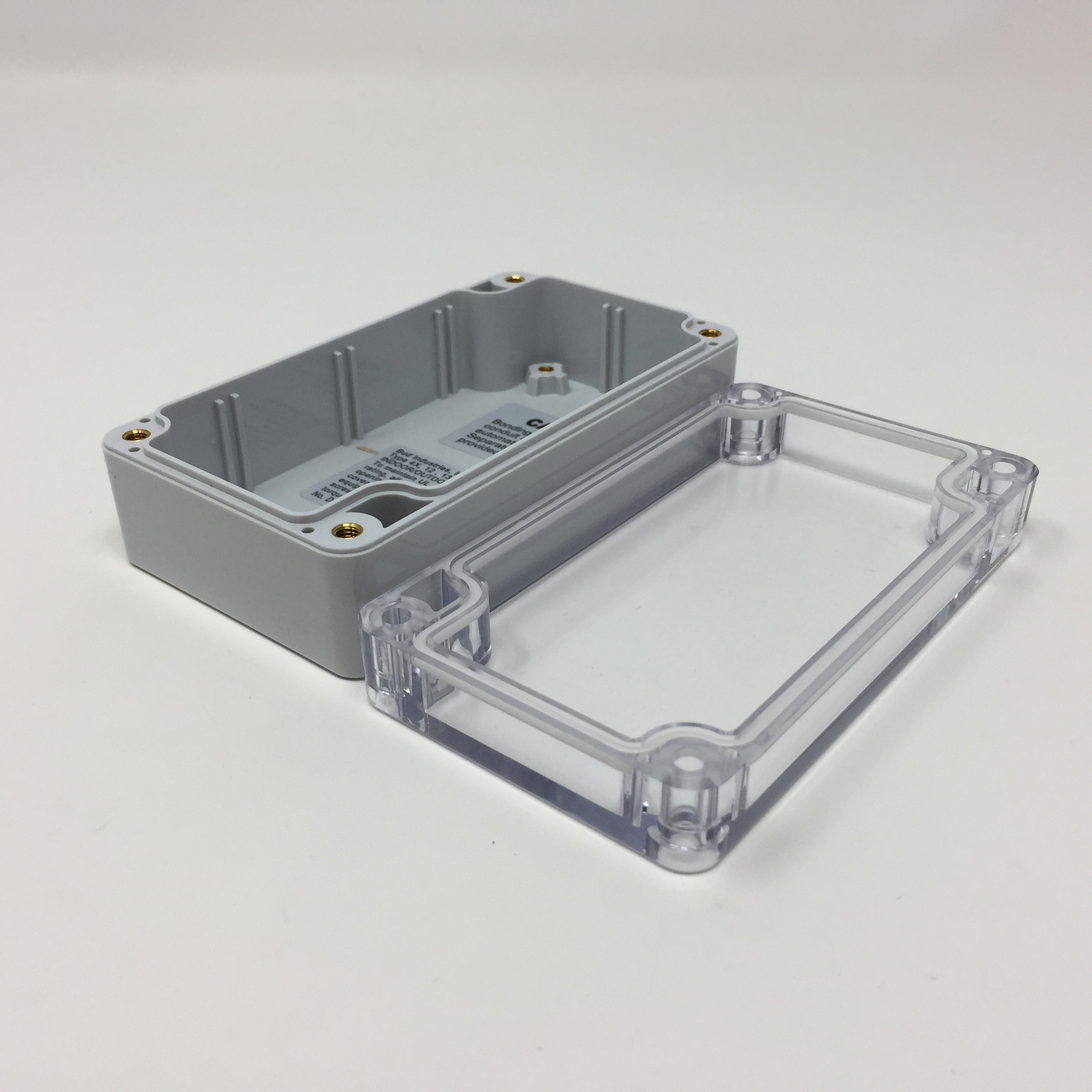

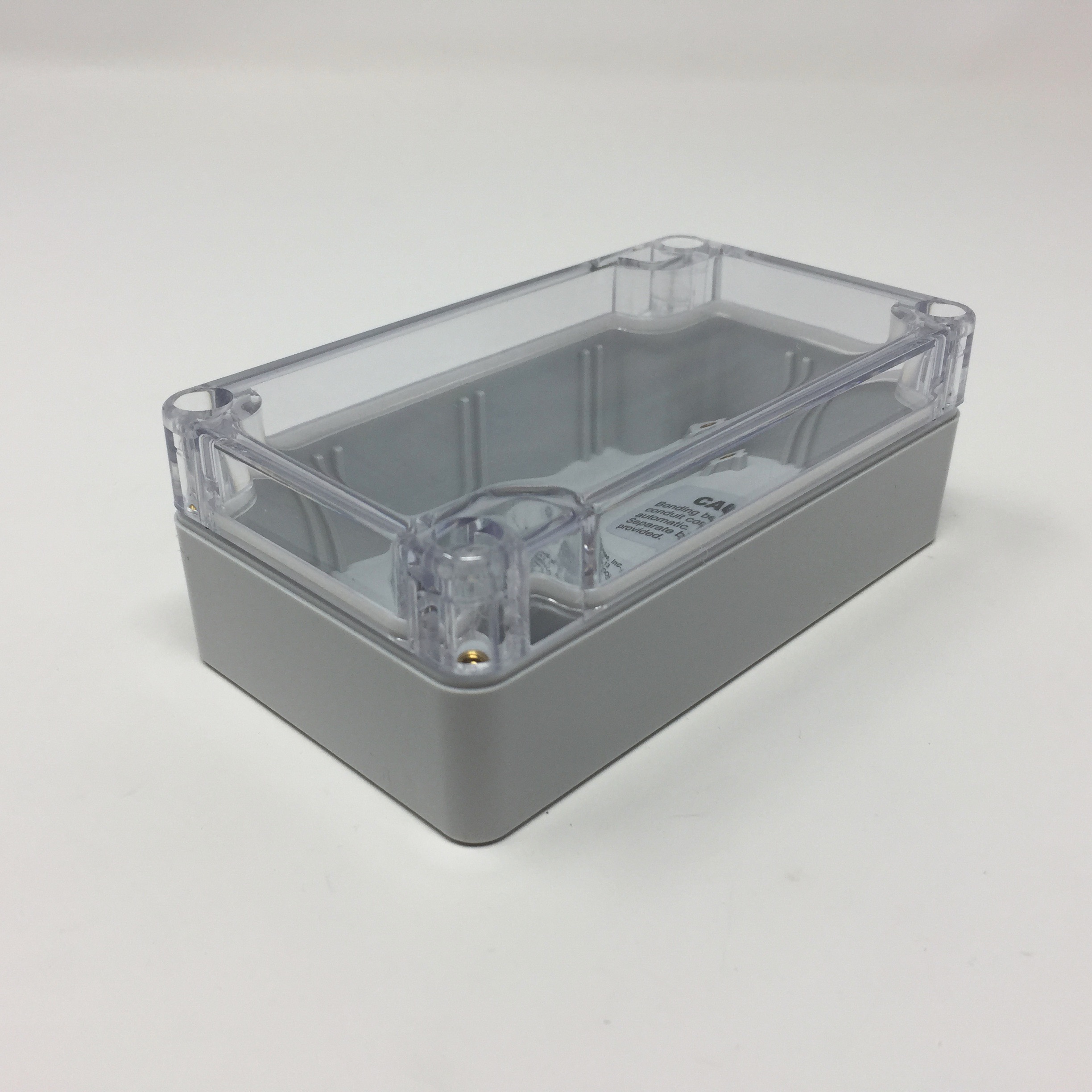

BUD NEMA Polycarbonate 2.28 x 2.04 x 1.18 Inch Internal box with Light Grey body and clear polycarbonate cover and No Mounting Bracket

$8.60

Min: 1  Mult: 1

Product Attributes

UPC

666020019790

Color

Light Gray & Clear Cover

Material

polycarbonate

Internal Panel PN

PNX-91421

Overall Dim LxWxH

4.53 x 2.56 x 1.57 (In)

NEMA Ratings

1,2,4,4x,12 and 13

Overall Dims

1.57 x 2.56 x 4.53

Lid Style

Flat

IP Rating

IP65

External Height W/Lid

1.57 (In)

External Length

4.53 (In)

External Height (Body Only)

0.99 (In)

External Width

2.56 (In)

Internal Width

2.19 (In)

Internal Length

4.16 (In)

Internal Depth W/Lid

1.37 (In)

Internal Depth (Body only)

0.89 (In)

Cover Inset Length

N/A

Cover Inset Width

N/A

Weight (Oz)

4.0 (Oz)

Operating Temp.

-40C to +120C

Hardware

Cover Screws M-4 SS Included

Flammability Rating

UL94-HB

Size

2.28 x 2.04 x 1.18 Inch Internal box

Style

Light Grey body and clear polycarbonate cover

Mounting Bracket

No Mounting Bracket
