PIP-11772-C

BUD | PIP | Enclosures
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

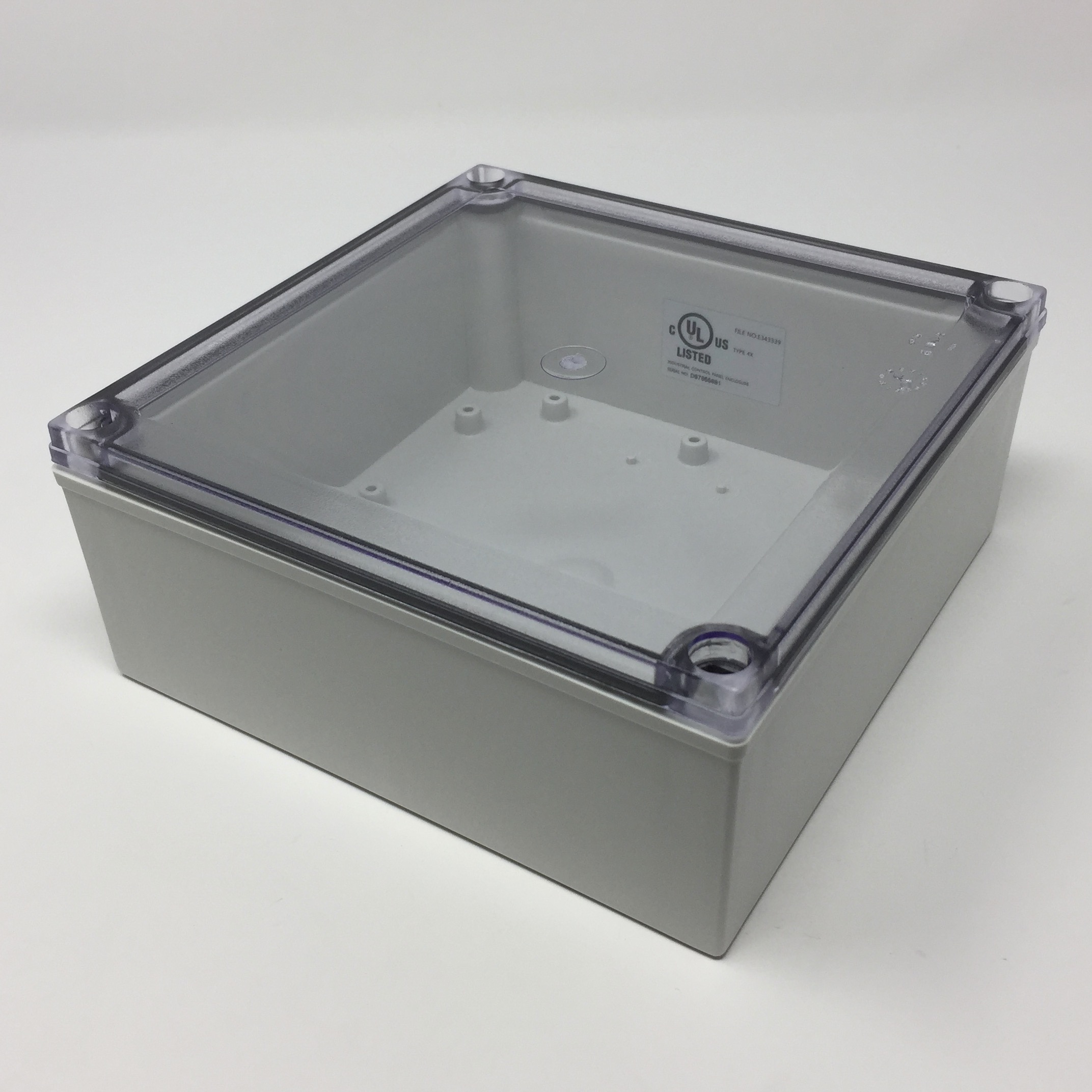

BUD 7.087 x 7.087 x 2.953 NEMA 4X High impact resistance Gray Polycarbonate (PC) resin 10% glass fiber filled molded IP67 enclosure with, Clear Cover

$18.50

Min: 1  Mult: 1

Product Attributes

Cover

Clear

Weight LBs

0.19

Steel Internal Pannel

PIX-11772

Seal Rating

IP67 (TUV) and meet NEMA 1, 2, 4, 4x and 6 specifications

Screws

Nonmetallic captive screws without the risk of stripping

ROHS

Compliant

Overall LxWxH (In)

7.087 x 7.087 x 2.953

Optional Steel Mounting Bracket

NBX10922

Optional Plastic Mounting Bracket

Pix-4117

Operating Temperature

-40C to 120C

Material Cover

Polycarbonate (PC)

Material Body

Polycarbonate (PC) resin 10% glass fiber filled

Length (In)

7.087

Gasket

Continuous gasket

Depth (In)

2.953

Width (In)

7.087

UPC

666020019707
