PIP-11767

BUD | PIP | Enclosures
green-check-icon Total Stock: 7
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

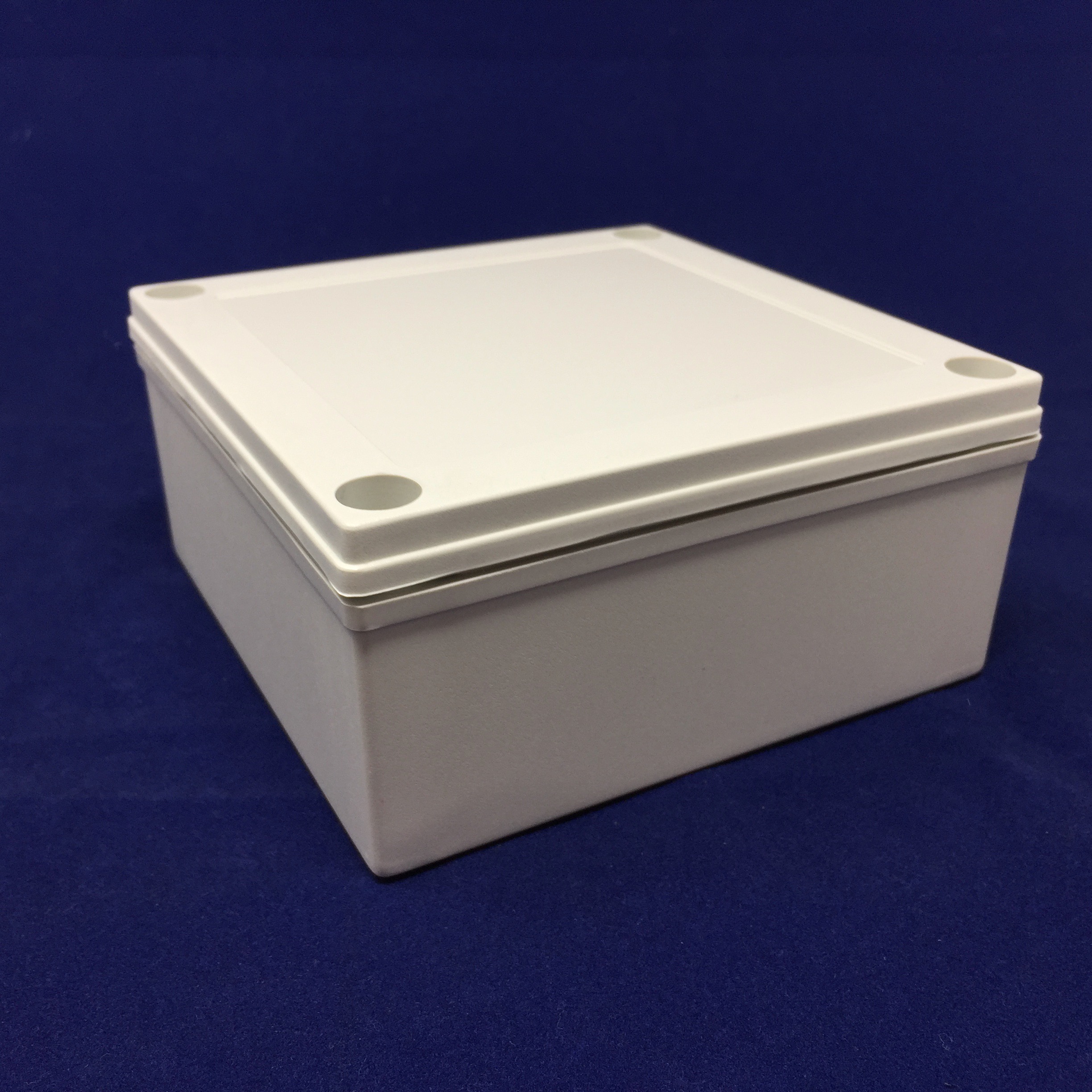

BUD 5.118 x 5.118 x 2.362 NEMA 4X High impact resistance Gray Polycarbonate (PC) resin 10% glass fiber filled molded IP67 enclosure with, Grey Cover

$11.20

Min: 1  Mult: 1

Product Attributes

Cover

Grey

Weight LBs

0.14

Steel Internal Pannel

PIX-11766

Seal Rating

IP67 (TUV) and meet NEMA 1, 2, 4, 4x and 6 specifications

Screws

Nonmetallic captive screws without the risk of stripping

ROHS

Compliant

Overall LxWxH (In)

5.118 x 5.118 x 2.362

Optional Steel Mounting Bracket

NBX10922

Optional Plastic Mounting Bracket

Pix-4117

Operating Temperature

-40C to 120C

Material Cover

Polycarbonate (PC)

Material Body

Polycarbonate (PC) resin 10% glass fiber filled

Length (In)

5.118

Gasket

Continuous gasket

Depth (In)

2.362

Width (In)

5.118

UPC

666020006820

Not available at this time.
