Price List
NBF-32414
Factory Lead Time: TBD
RoHs Compliant

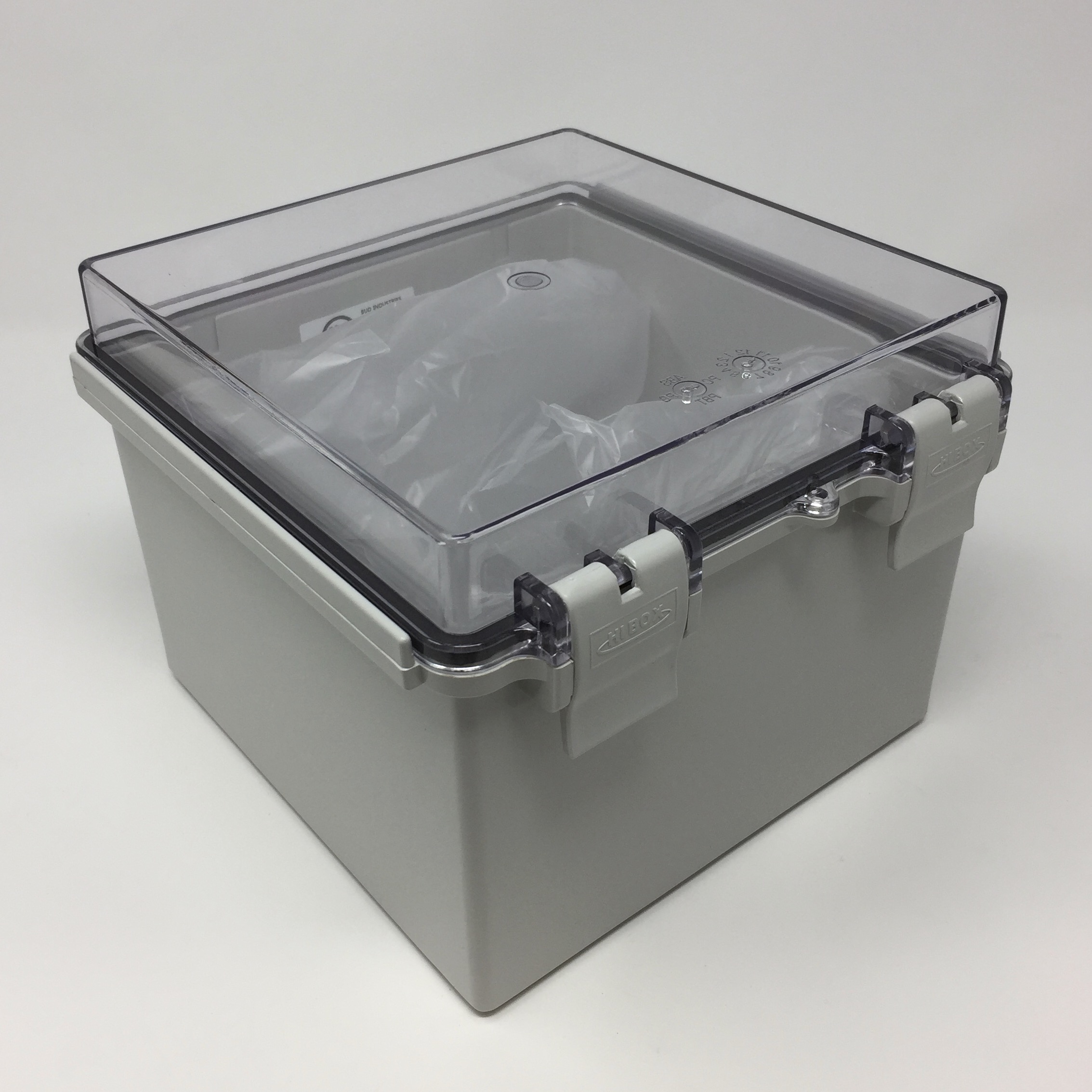

BUD NEMA Enclosure Poly PTB Blend with Clear Polycabonate Door (7.7 X 7.7 X 5.7 In) Item Number : NBF-32414
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UPC
666020025647
Overall Dims
5.9 x 7.08 x 7.08
Material/Style
PC/BPT (Outdoor) Clear Cover
Color
light gray & clear door
Flammability Rating
UL94-V0
Temperature Rating
-40C to +75C
Size
7.71 x 7.71 x 5.90
Optional Plate
Width (In)
7.71
Length (mm)
[200]
Length (In)
7.71
Latches
2 or 3 Plastic
L x W x H (mm)
[200] x [200] x [150]
Internal Width(In)
7.09
Internal Length(In)
7.09
Internal Height(In)
5.67
Height (mm)
[150]
Height (In)
5.90
Width (mm)
[200]
Series Attributes
Hardware
(4) M5 x 10mm LG Included
IP Rating
IP66 of IEC 529
Mounting Brackets
stainless steel Included
NEMA
1,2,4,4x
