Price List
NBF-32402
Factory Lead Time: TBD
RoHs Compliant

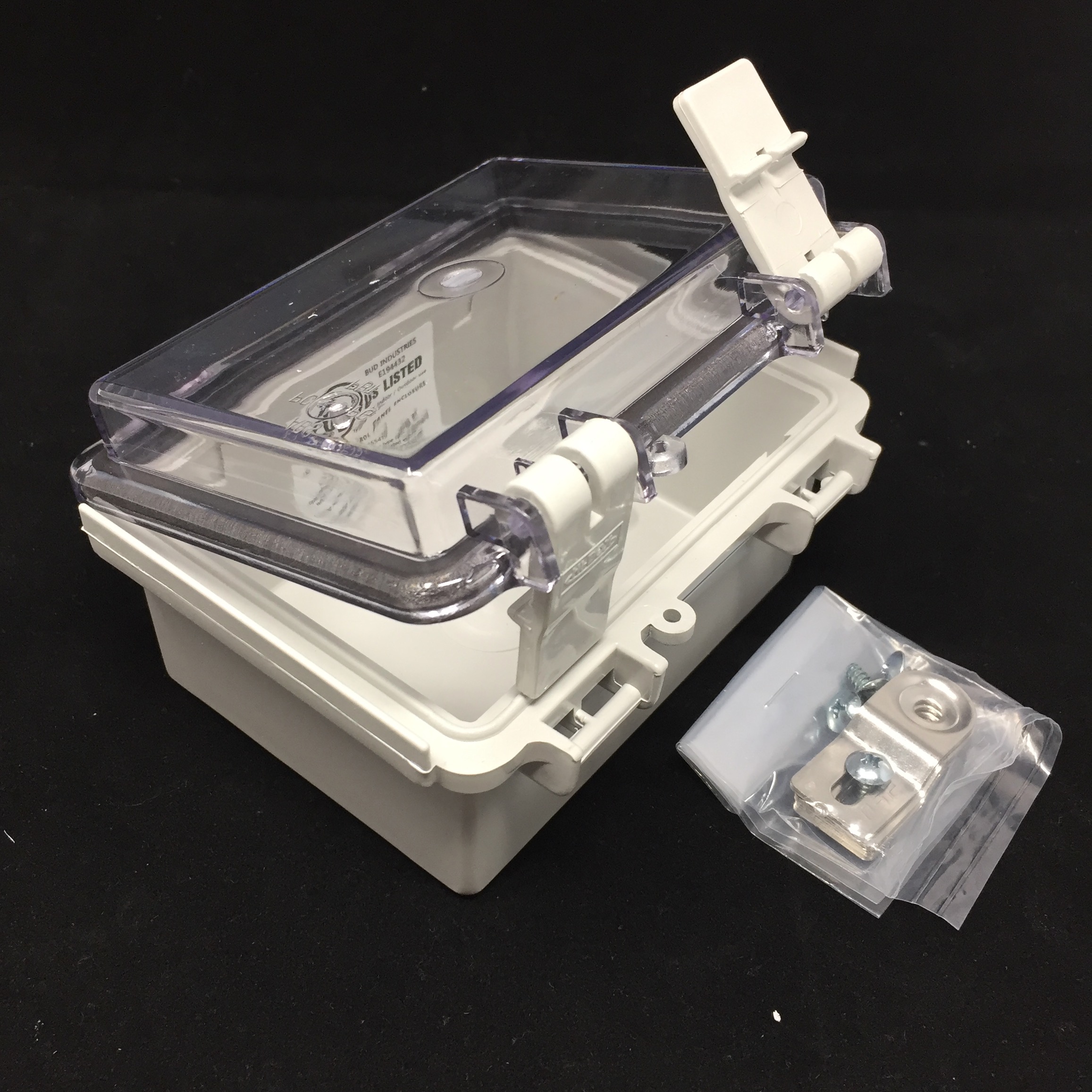

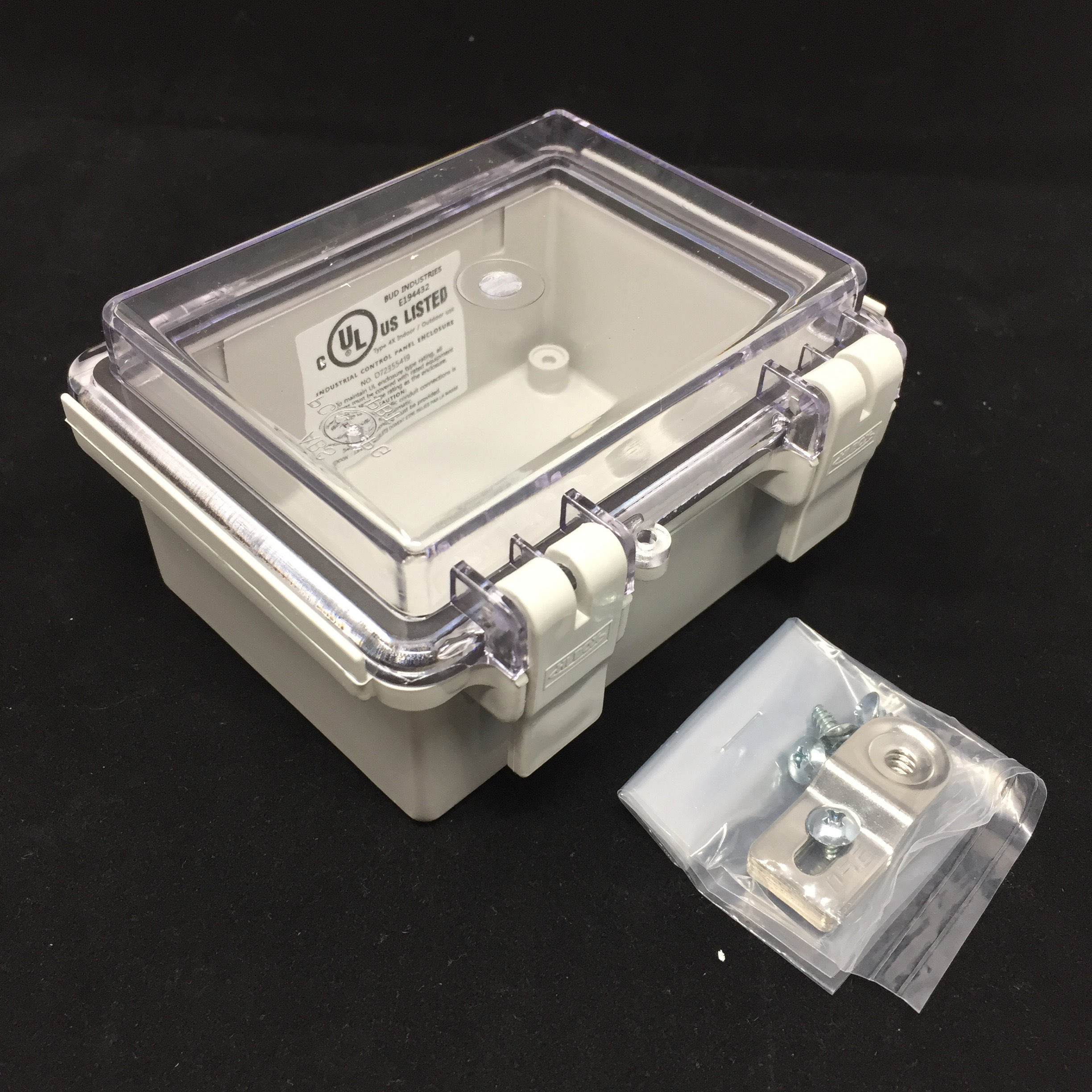

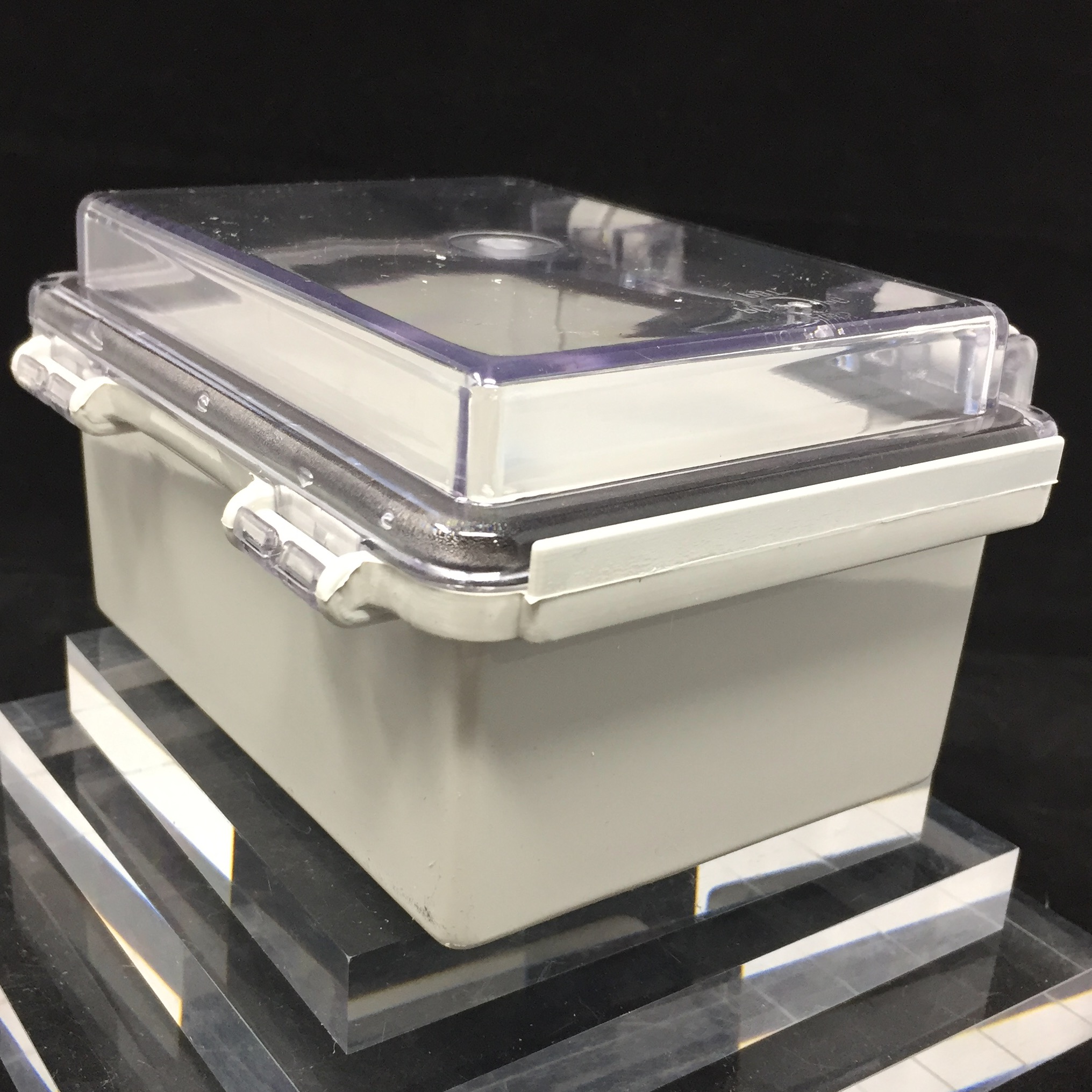

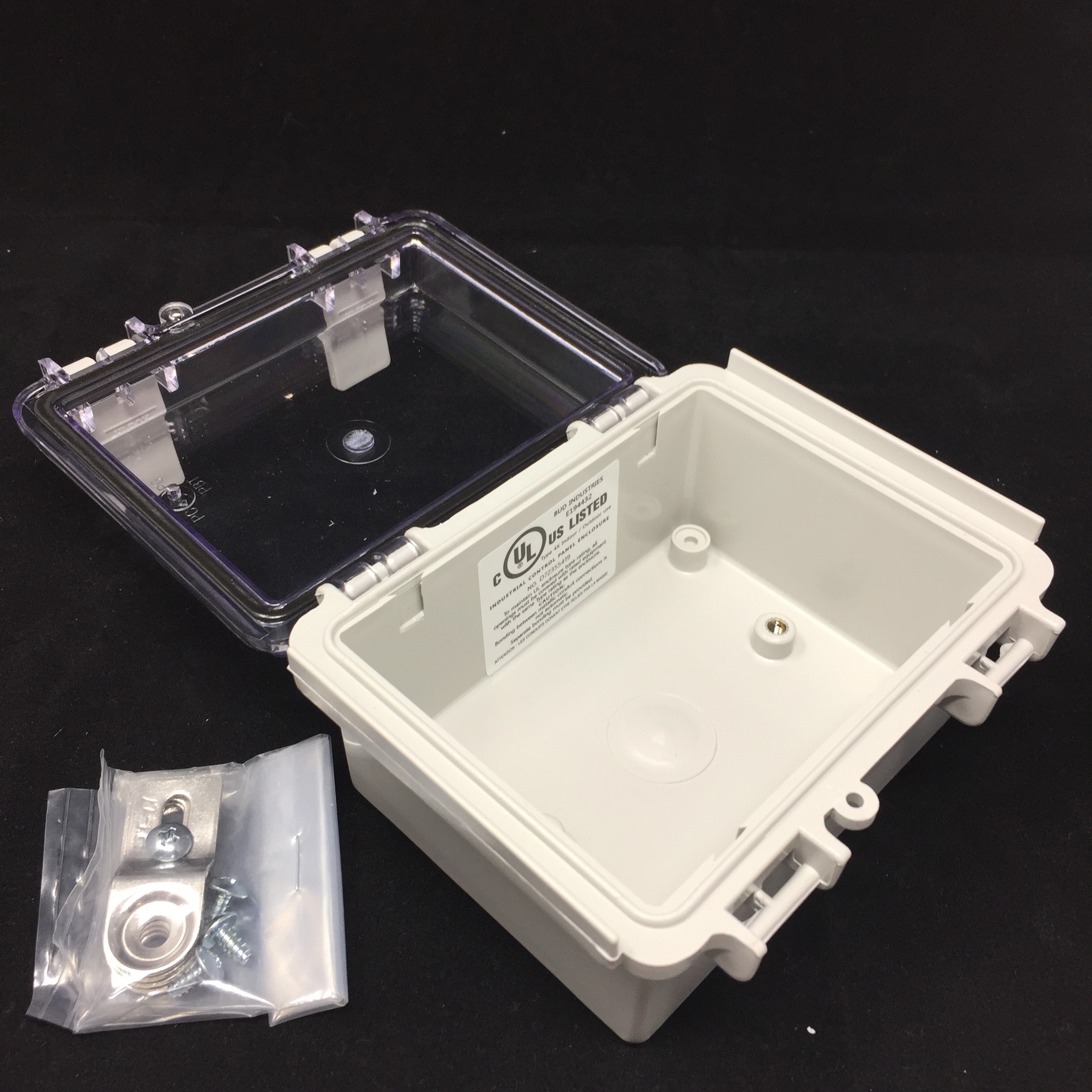

BUD NEMA Enclosure Poly PTB Blend with Clear Polycabonate Door (5.1 X 4.9 X 2.8 In) Item Number : NBF-32402
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UPC
666020025623
Overall Dims
2.75 x 3.93 x 5.11
Material/Style
PC/BPT (Outdoor) Clear Cover
Color
light gray & clear door
Flammability Rating
UL94-V0
Temperature Rating
-40C to +75C
Size
5.11 x 3.93 x 2.75
Optional Plate
Width (In)
3.93
Length (mm)
[130]
Length (In)
5.11
Latches
2 or 3 Plastic
L x W x H (mm)
[130] x [100] x [70]
Internal Width(In)
3.42
Internal Length(In)
4.55
Internal Height(In)
2.52
Height (mm)
[70]
Height (In)
2.75
Width (mm)
[100]
Series Attributes
Hardware
(4) M5 x 10mm LG Included
IP Rating
IP66 of IEC 529
Mounting Brackets
stainless steel Included
NEMA
1,2,4,4x
