Price List
NBF-32312
Total Stock: 18
Factory Lead Time: TBD
RoHs Compliant

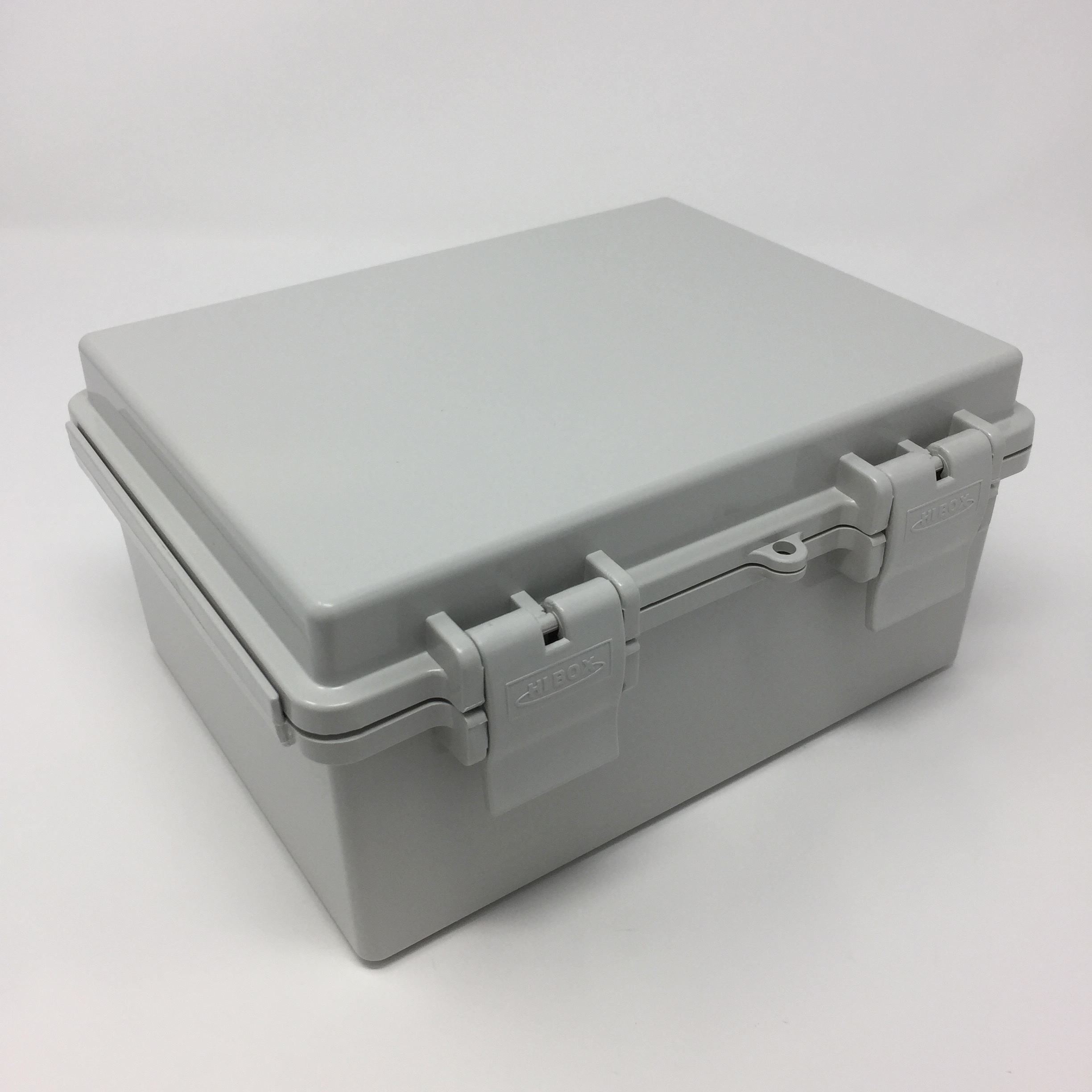

BUD NEMA Enclosure Poly PTB Blend (8.3 X 6.4 X 3.9 In) Item Number : NBF-32312
Hawk Electronics
Total Stock: 18
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UPC
666020018830
Overall Dims
3.93 x 5.9 x 7.87
Material/Style
PC/BPT (Outdoor) Solid Cover
Color
light gray
Flammability Rating
UL94-5VA + UV (f1)
Temperature Rating
-40C to +75C
Size
7.87 x 5.90 x 3.93
Optional Plate
Width (In)
5.90
Length (mm)
[200]
Length (In)
7.87
Latches
2 or 3 Plastic
L x W x H (mm)
[200] x [150] x [100]
Internal Width(In)
5.73
Internal Length(In)
7.70
Internal Height(In)
3.70
Height (mm)
[100]
Height (In)
3.93
Width (mm)
[150]
Series Attributes
Hardware
(4) M5 x 10mm LG Included
IP Rating
IP66 of IEC 529
Mounting Brackets
stainless steel Included
NEMA
1,2,4,4x
