Price List
NBF-32032
Factory Lead Time: TBD
RoHs Compliant

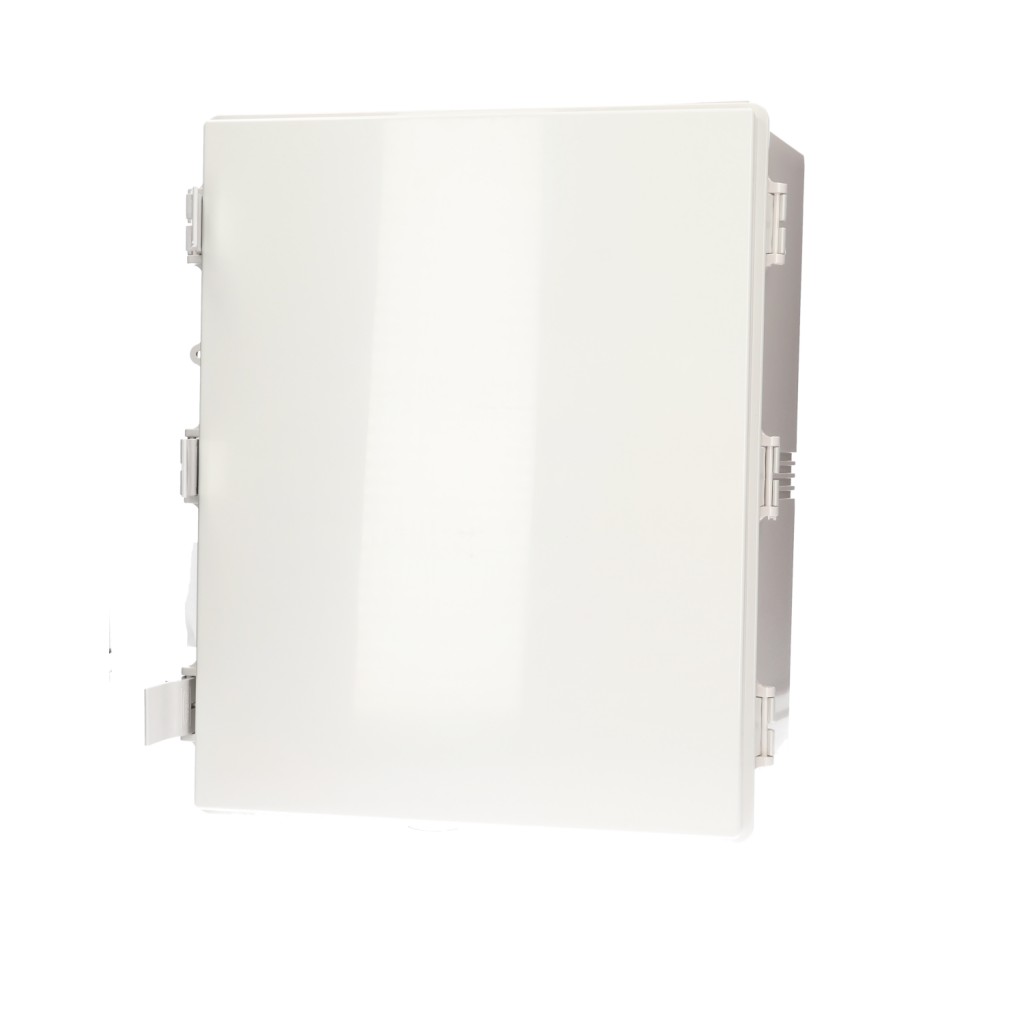

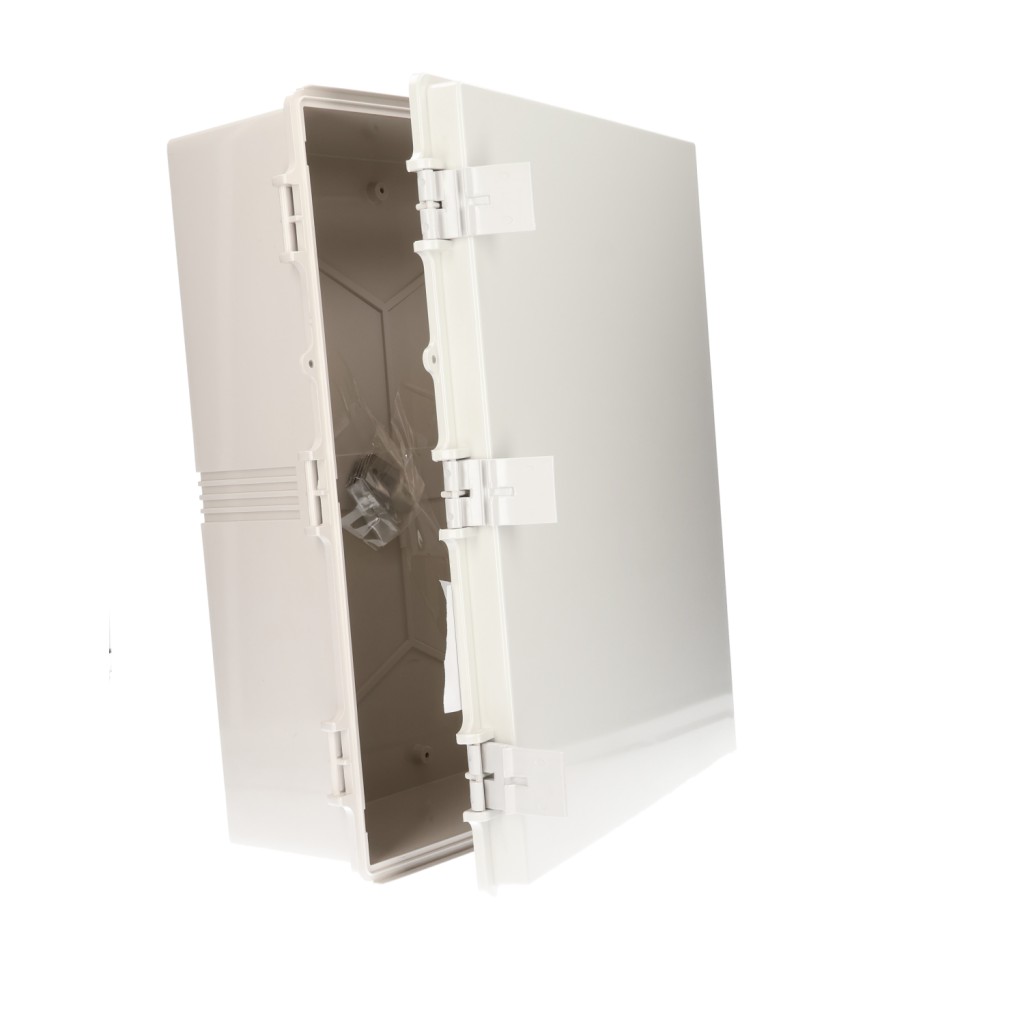

BUD NEMA Enclosure ABS Plastic (19.7 X 15.8 X 6.3 In) Item Number : NBF-32032
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UPC
666020018731
Overall Dims
6.29 x 15.74 x 19.68
Material/Style
ABS (Indoor) Solid Cover
Color
light gray
Flammability Rating
UL94-HB
Temperature Rating
-40C to +60C
Size
19.68 x 15.74 x 6.29
Optional Plate
Width (In)
15.74
Length (mm)
[500]
Length (In)
19.68
Latches
2 or 3 Plastic
L x W x H (mm)
[500] x [400] x [160]
Internal Width(In)
14.88
Internal Length(In)
18.82
Internal Height(In)
5.96
Height (mm)
[160]
Height (In)
6.29
Width (mm)
[400]
Series Attributes
Hardware
(4) M5 x 10mm LG Included
IP Rating
IP66 of IEC 529
Mounting Brackets
stainless steel Included
NEMA
1,2,4,4x
