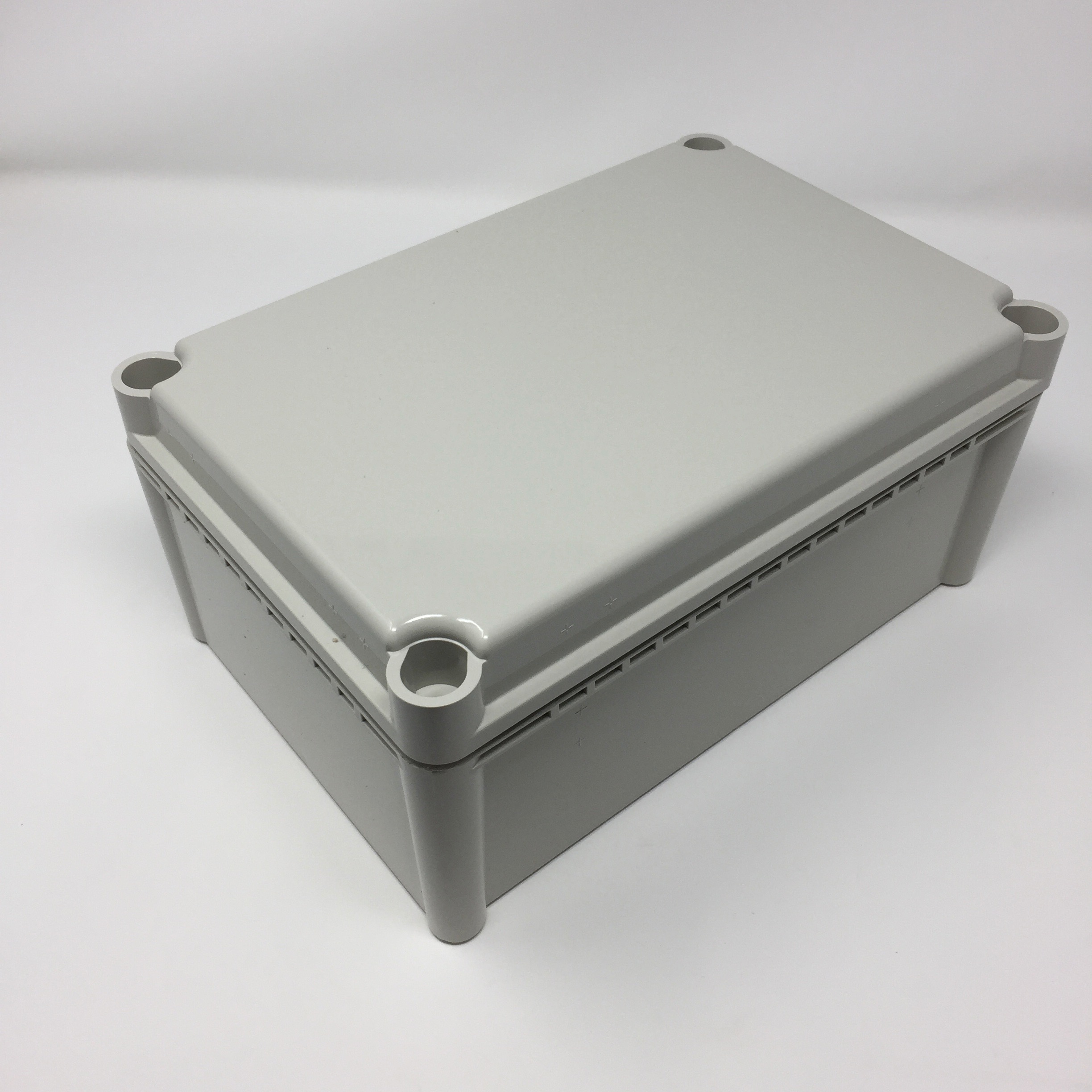

BUD NEMA Enclosure with Screw-Down Cover (11 X 7.5 X 5 In) Item Number : NBD-10442
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UPC
666020013620
Size (LxWxD)
11.02" x 7.48" x 5.03"
Color
Light Grey
Door
Solid
Overall Dims
5.03 x 7.48 x 11.2
For Use
Indoor
NEMA Ratings
NEMA 1, 4 and 4x
Material Body
ABS/PC UL94-5VA
IP Rating
IP66 of IEC 529
UL Listed
UL508-4x requirements
Operating Temperature
-40C to +70C
Weight (Lbs)
2.0
Internal Width
6.66"
External Depth
5.03"
External Depth Body
3.85"
External Width
7.48"
Internal Depth
4.81"
Internal Length
10.47"
Actual External Length
11.02"
Nominal Width
190mm
Nominal Length
280mm
Nominal Depth
130mm
