AN-2805-AB

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 13
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

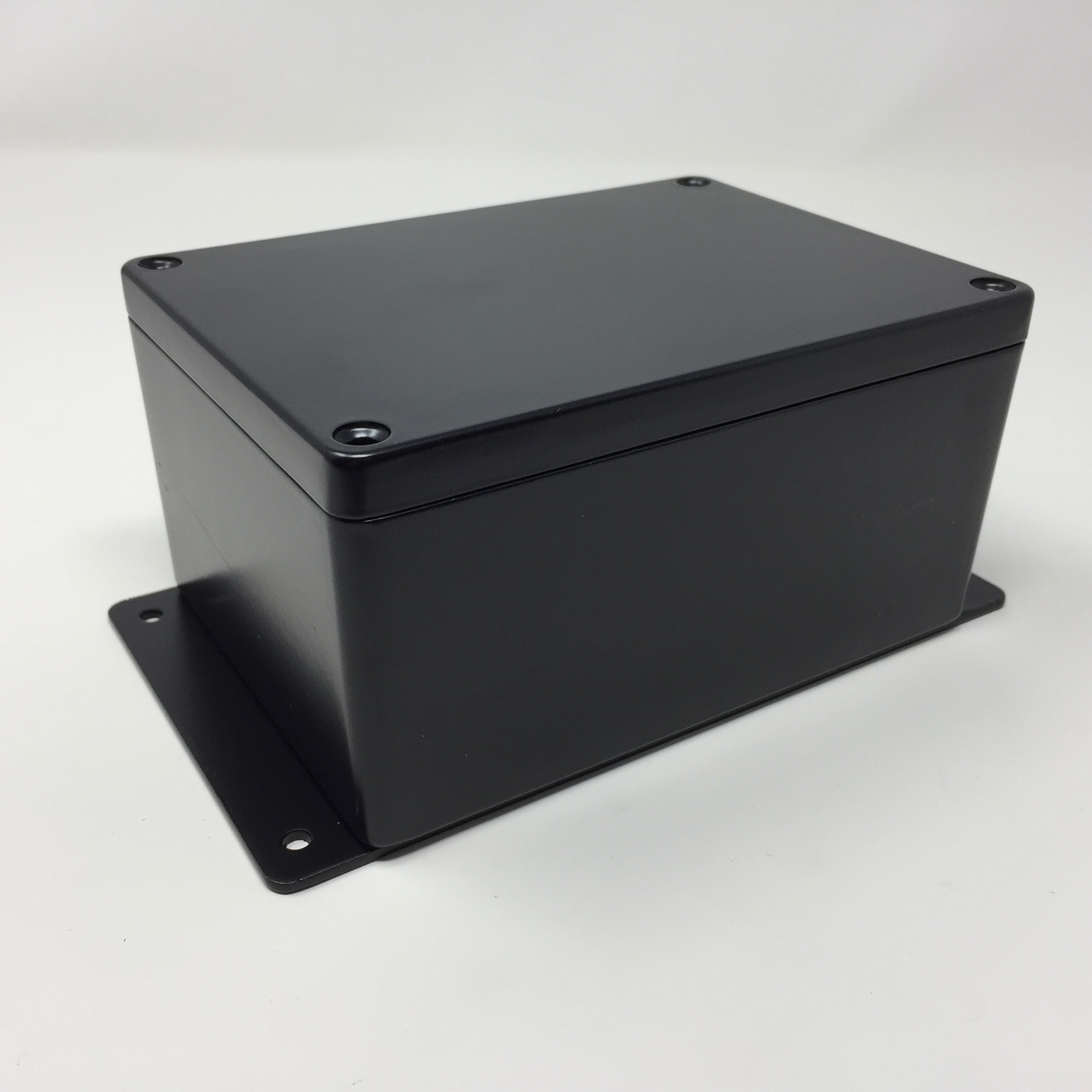

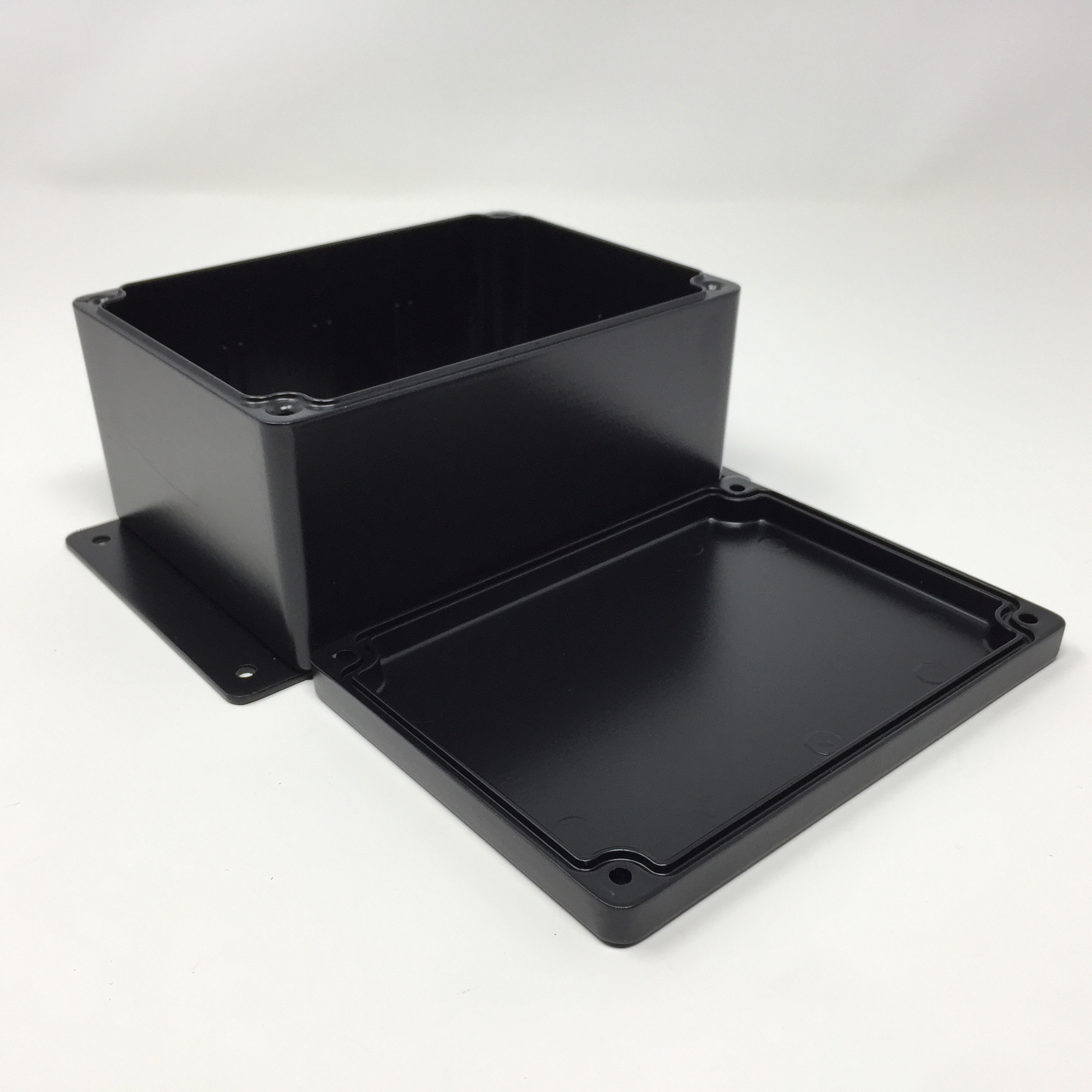

BUD 5.83" x 4.25" x 2.95" Aluminum Die Cast Box with Mounting Bracket in Black Smooth Powder Coat with premolded silicon gasket.

$34.40

Min: 1  Mult: 1

Product Attributes

UPC

666020001689

Overall Dims

2.17 x 4.76 x 6.73

Style (ipns)

Box with Mounting Bracket

Dim LxWxD (ipns)

5.83" x 4.25" x 2.95"

Weight - Ounces (ipns)

24

Depth (ipns)

2.95"

Mounting Hole Option (ipns)

NO wall-mounting Holes

Length (ipns)

5.83"

Width (ipns)

4.25"

Finish (ipns)

Black Smooth Powder Coat

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
