AN-2801-AB

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

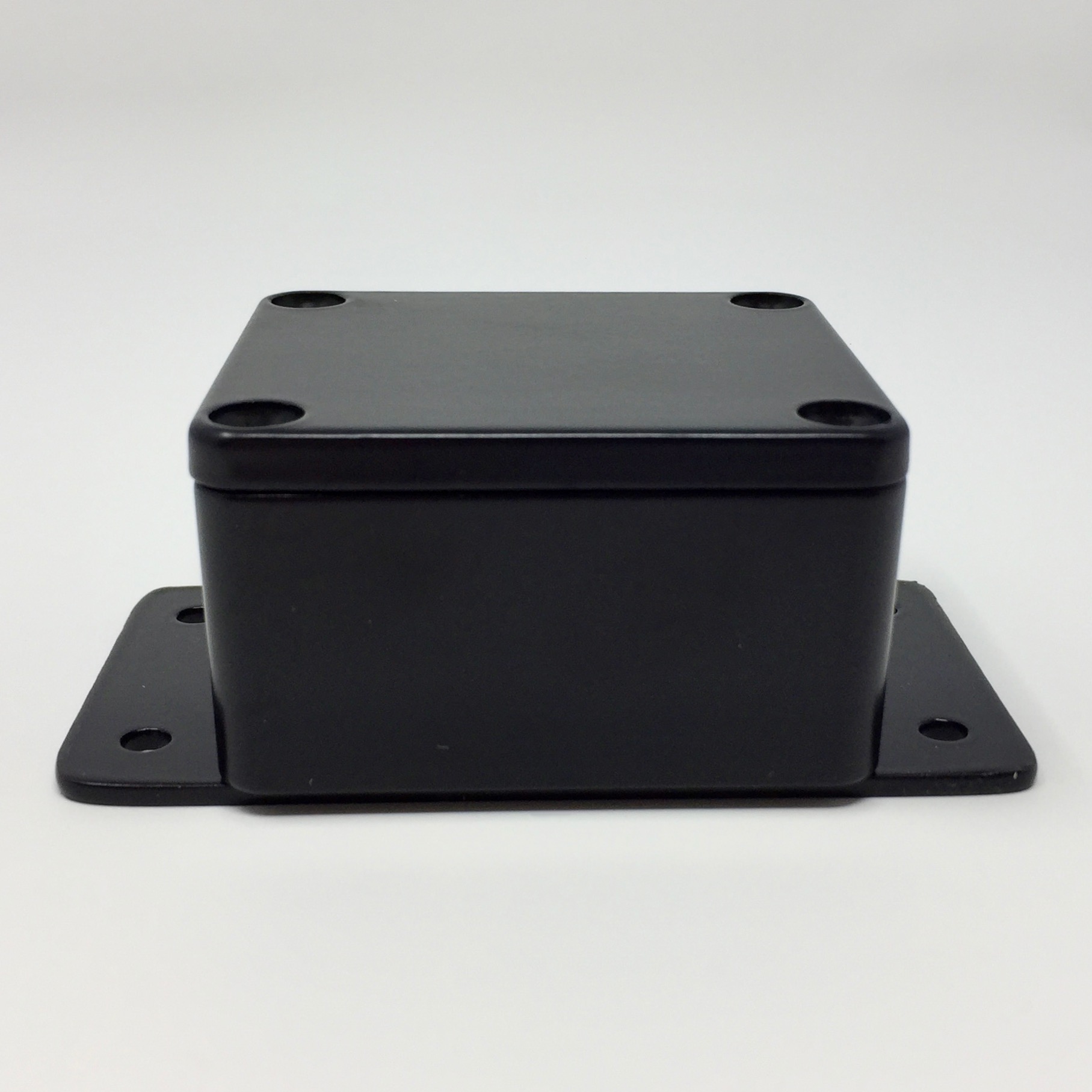

BUD 2.52" x 2.28" x 1.38" Aluminum Die Cast Box with Mounting Bracket in Black Smooth Powder Coat with premolded silicon gasket.

$13.70

Min: 1  Mult: 1

Product Attributes

UPC

666020011756

Overall Dims

1.18 x 2.56 x 4.53

Style (ipns)

Box with Mounting Bracket

Dim LxWxD (ipns)

2.52" x 2.28" x 1.38"

Weight - Ounces (ipns)

5

Depth (ipns)

1.38"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

2.52"

Width (ipns)

2.28"

Finish (ipns)

Black Smooth Powder Coat

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
