AN-1314-A

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 4
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

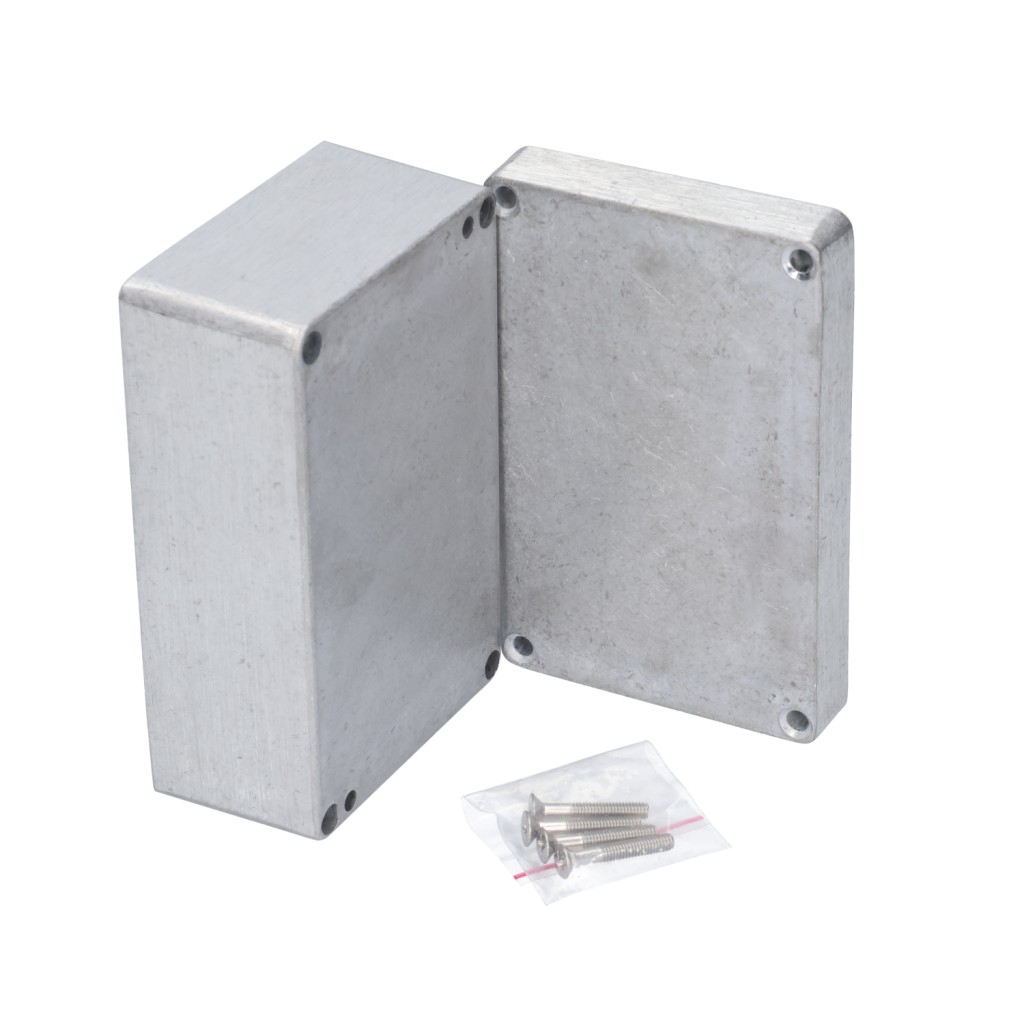

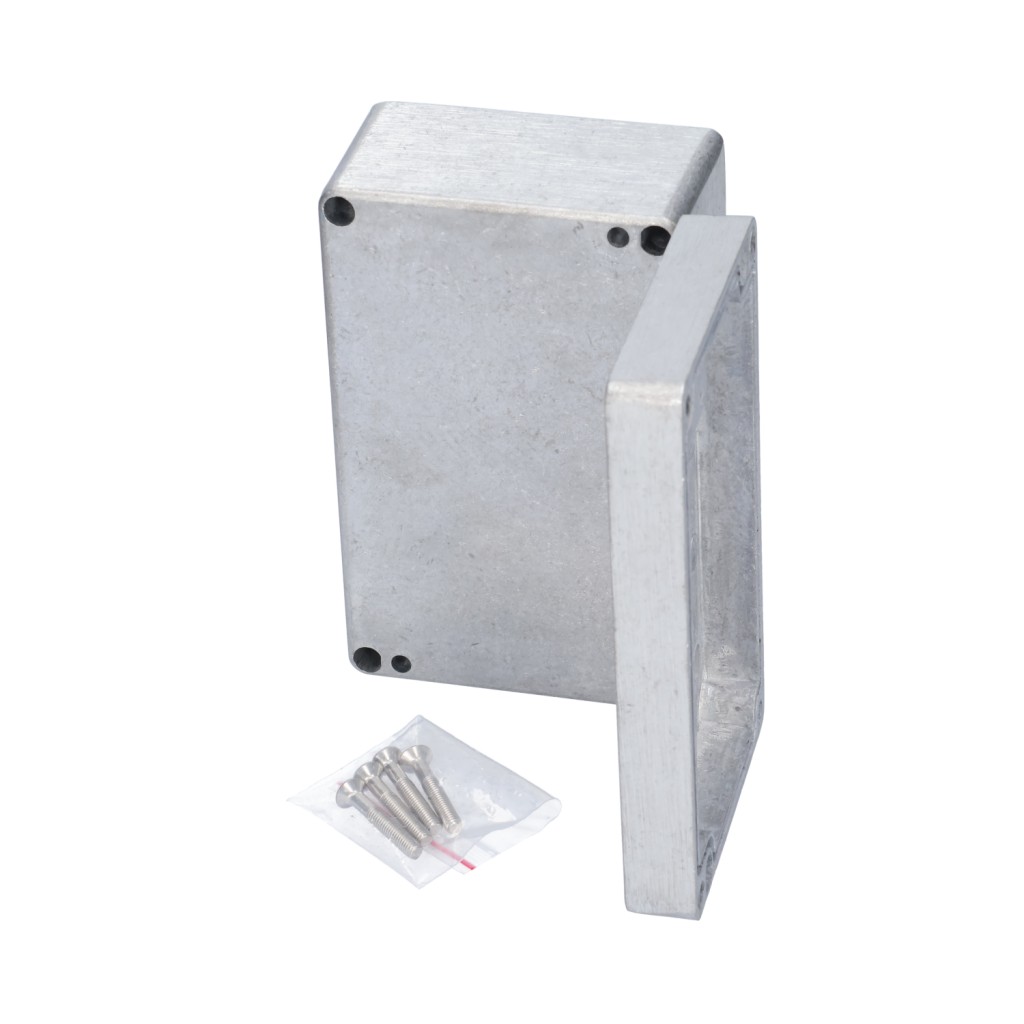

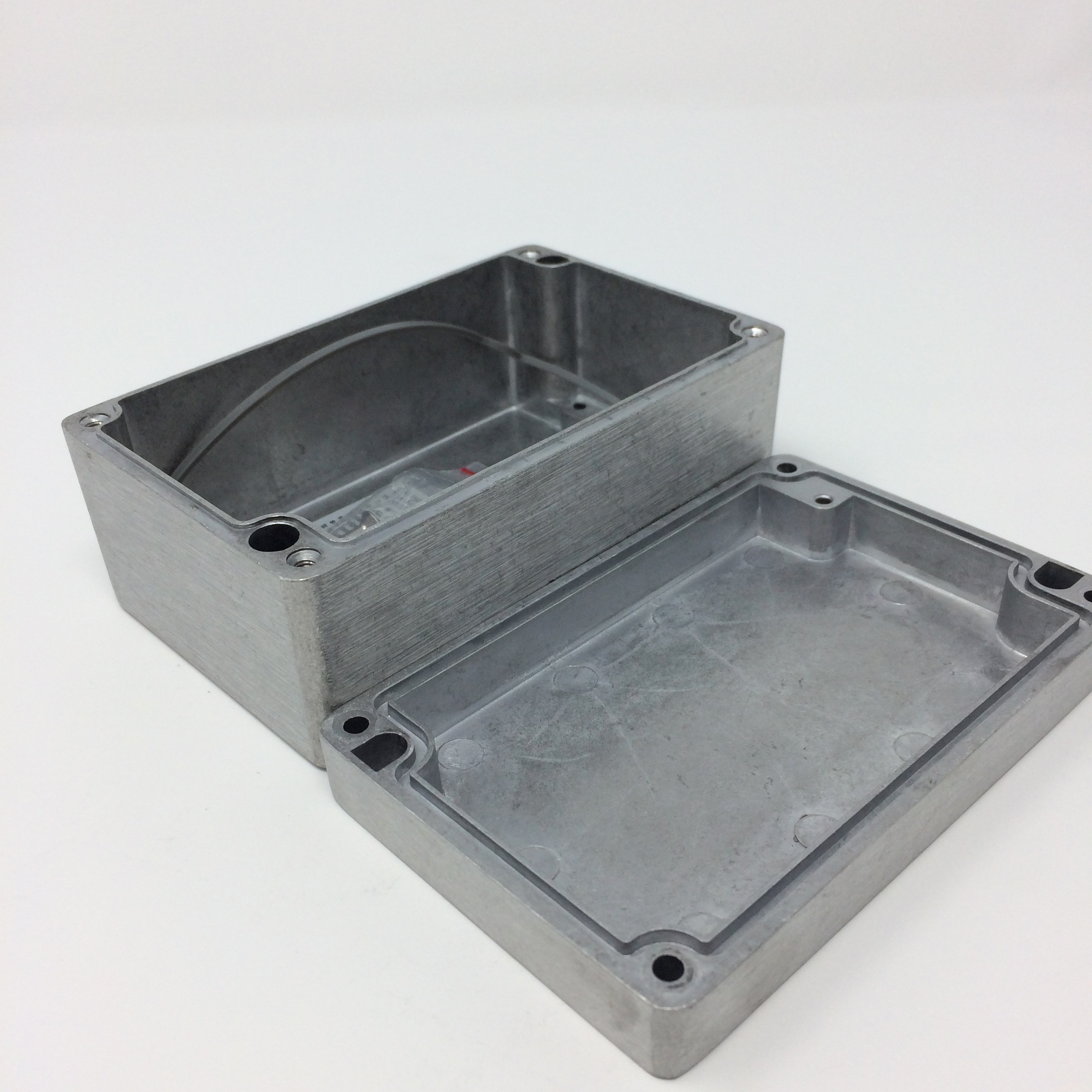

BUD 4.90" x 3.14" x 2.26" Aluminum Die Cast Standard Box in Natural Finish with premolded silicon gasket.

$11.70

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

4.90 x 3.14 x 2.26

Ext. Length

4.90

Finish

Natural (aluminum)

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

YES

UPC

666020021922

Overall Dims

2.26 x 3.14 x 4.9

Style (ipns)

Standard Box

Dim LxWxD (ipns)

4.90" x 3.14" x 2.26"

Weight - Ounces (ipns)

15

Depth (ipns)

2.26"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

4.90"

Width (ipns)

3.14"

Finish (ipns)

Natural Finish

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
