AN-1312-AB

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 5
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

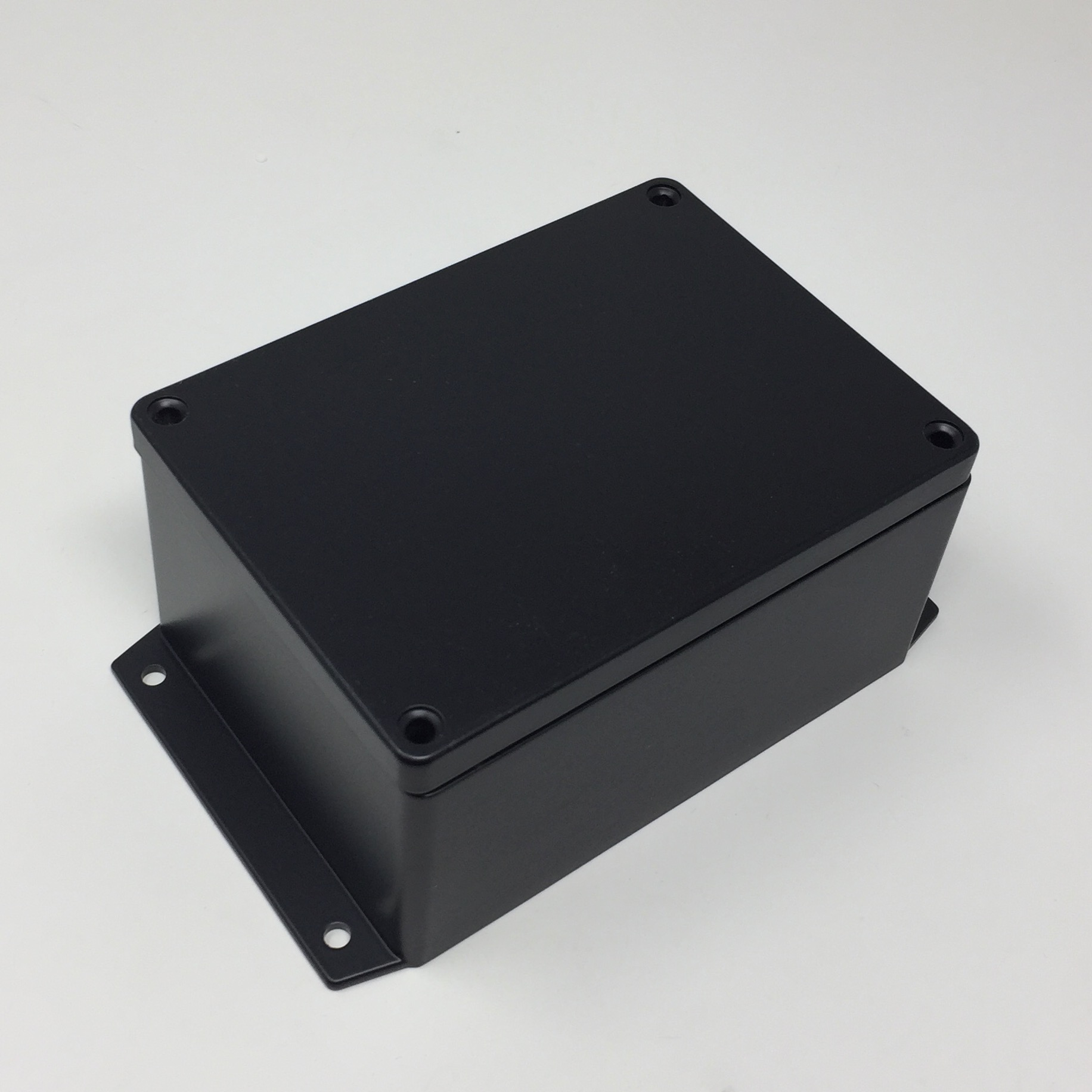

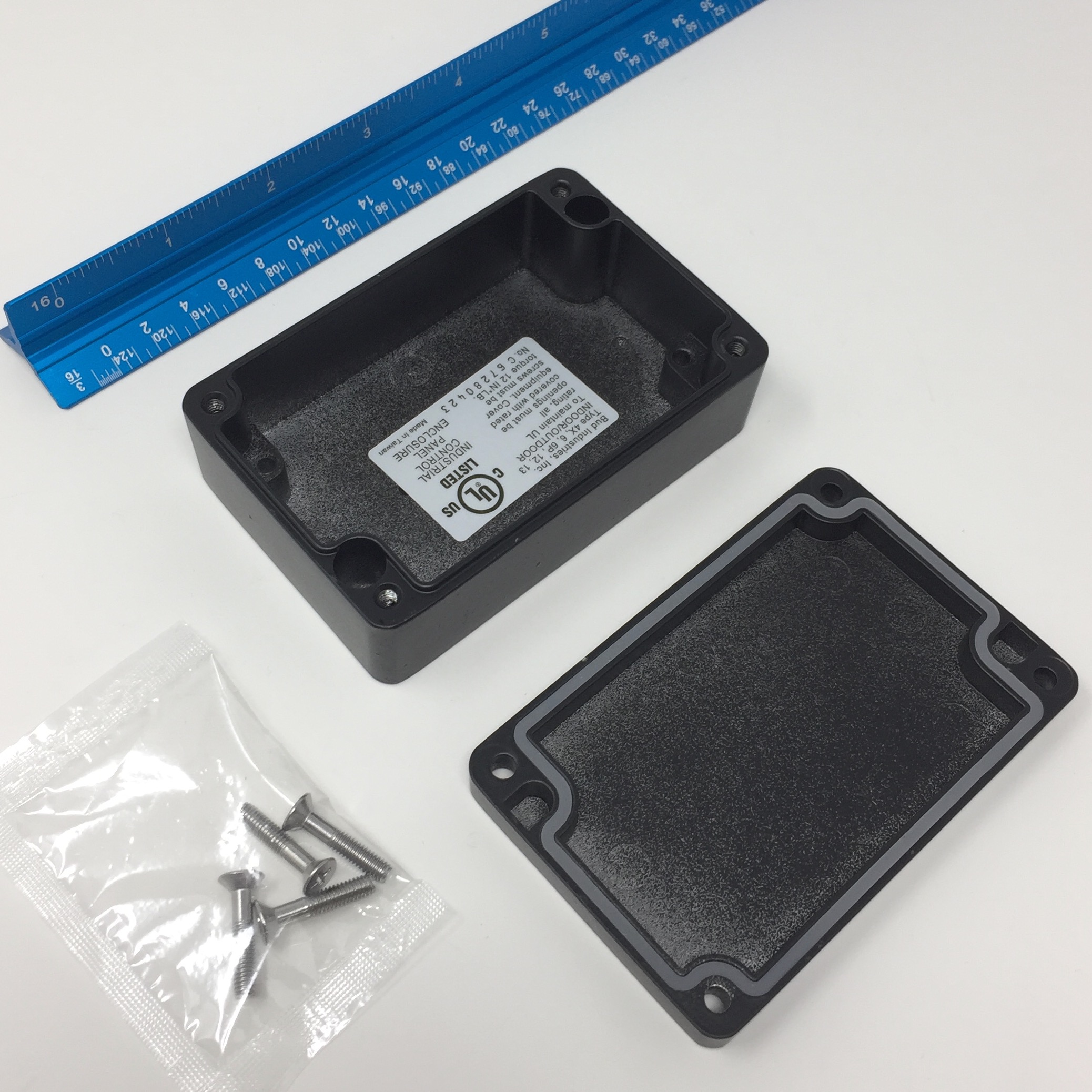

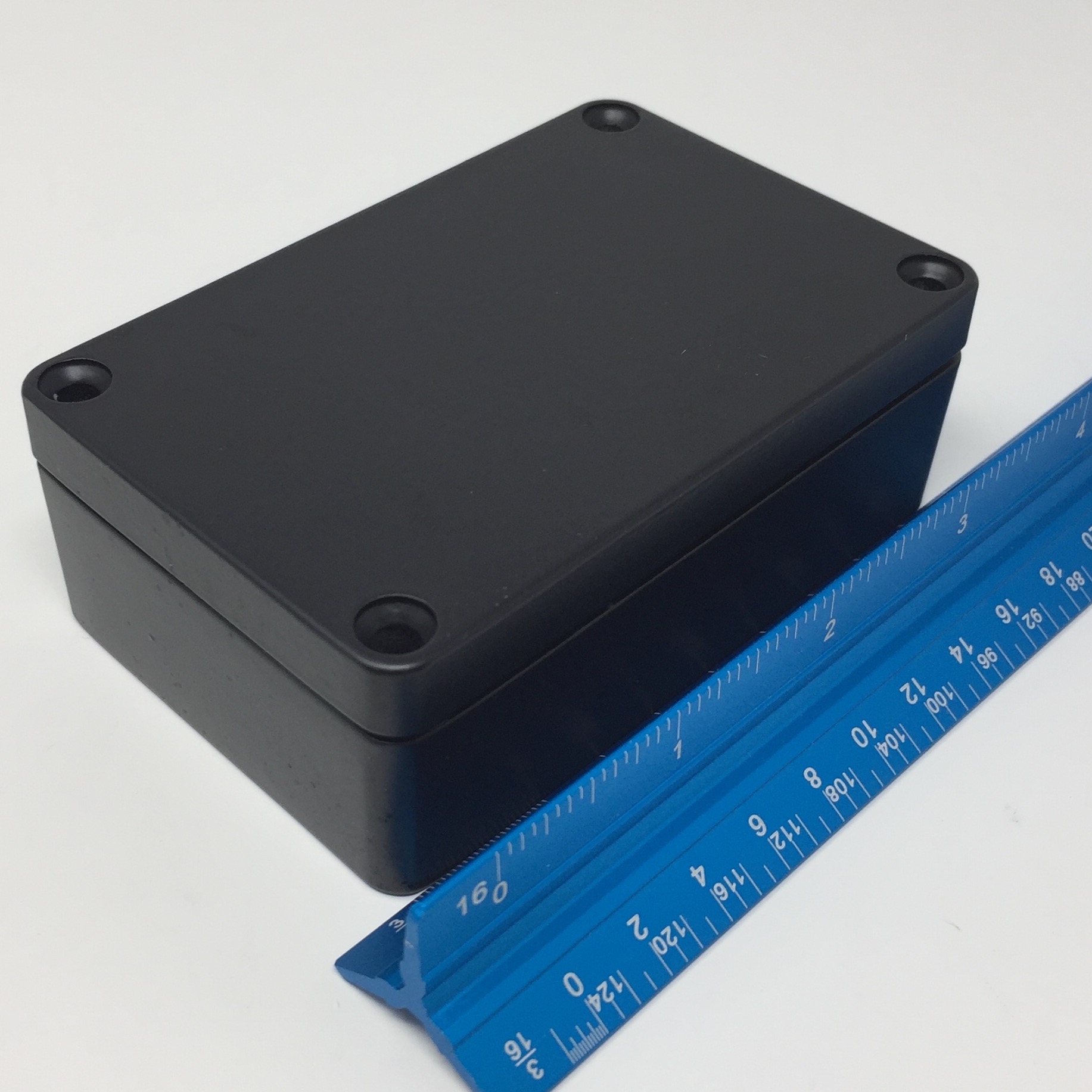

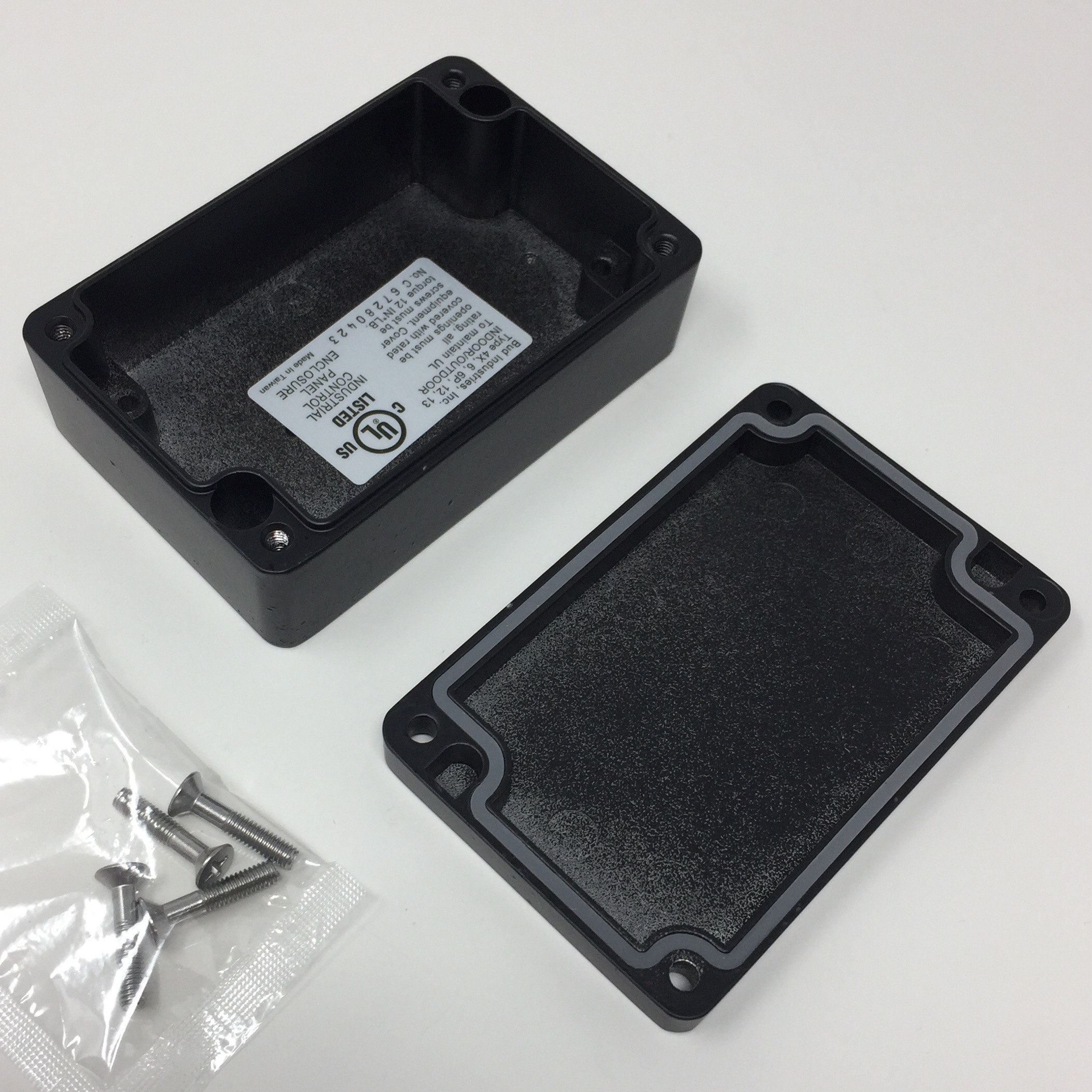

BUD 3.85" x 2.52" x 1.35" Aluminum Die Cast Standard Box in Black Smooth Powder Coat with premolded silicon gasket.

$10.60

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

3.85 x 2.52 x 1.35

Ext. Length

3.85

Finish

Powder coated Black

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

YES

UPC

666020001559

Overall Dims

1.35 x 2.52 x 3.85

Style (ipns)

Standard Box

Dim LxWxD (ipns)

3.85" x 2.52" x 1.35"

Weight - Ounces (ipns)

7

Depth (ipns)

1.35"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

3.85"

Width (ipns)

2.52"

Finish (ipns)

Black Smooth Powder Coat

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
