AN-1310-A

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 453
blue-timer-icon Drop Ship Quantity: 450
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

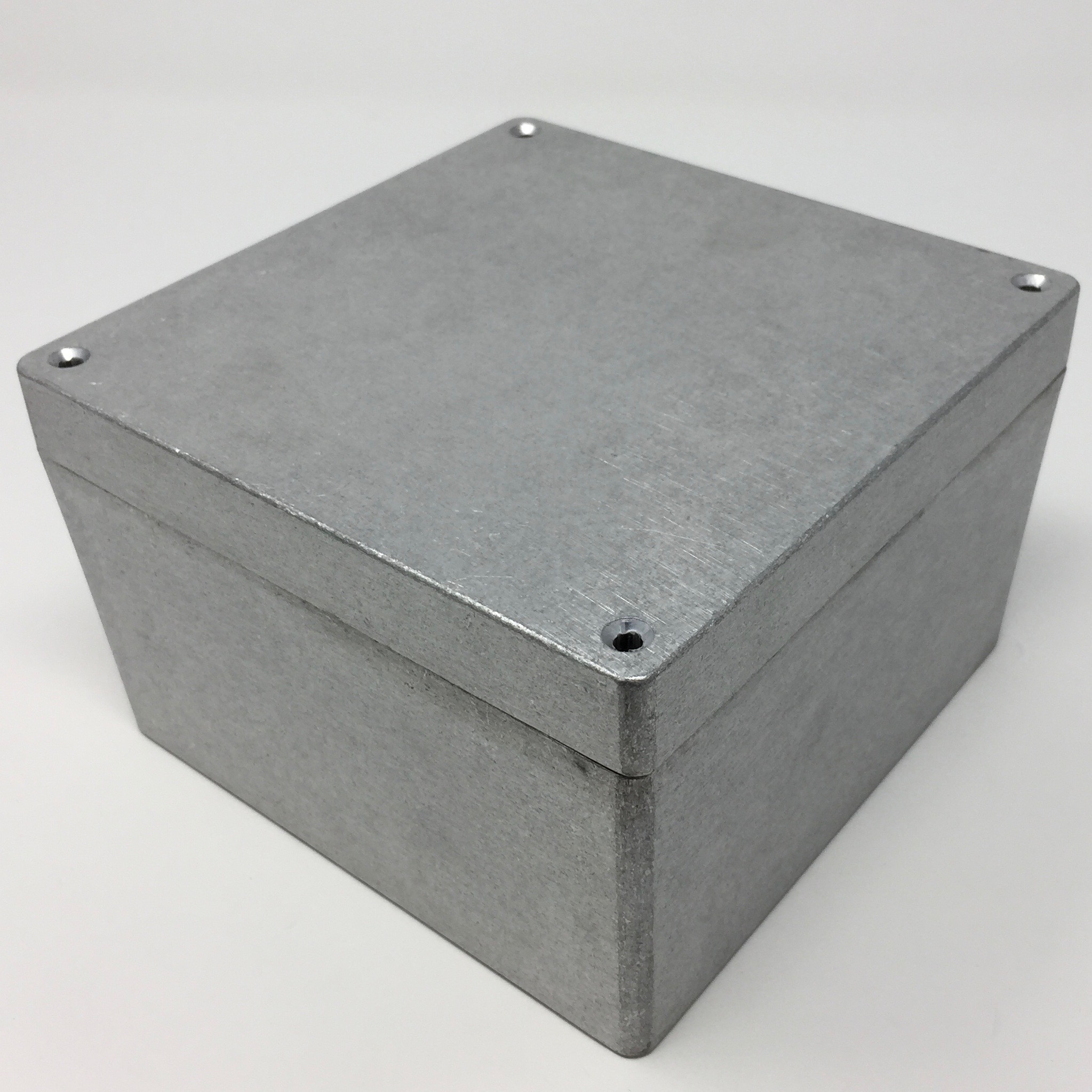

BUD 6.25" x 6.25" x 4.00" Aluminum Die Cast Standard Box in Natural Finish with premolded silicon gasket.

$25.10

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

6.25 x 6.25 x 4.00

Ext. Length

6.25

Finish

Natural (aluminum)

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

YES

UPC

666020001535

Overall Dims

4 x 6.25 x 6.25

Style (ipns)

Standard Box

Dim LxWxD (ipns)

6.25" x 6.25" x 4.00"

Weight - Ounces (ipns)

35

Depth (ipns)

4.00"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

6.25"

Width (ipns)

6.25"

Finish (ipns)

Natural Finish

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
