filter--iconPrice List

AN-1307-AB

BUD | AN-A Series | Enclosures
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

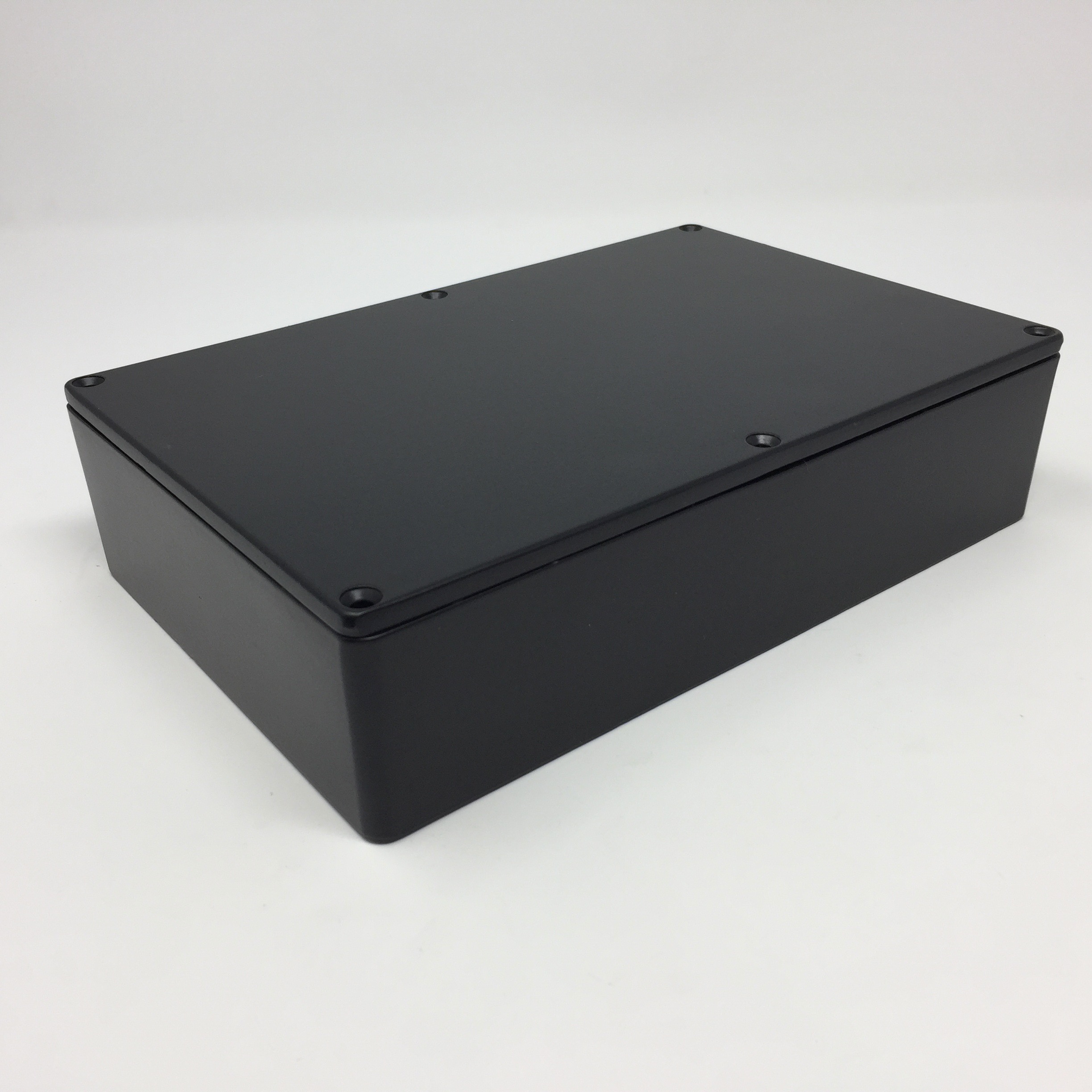

BUD 8.75" x 5.75" x 2.17" Aluminum Die Cast Standard Box in Black Smooth Powder Coat with premolded silicon gasket.

$31.50

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

8.76 x 5.75 x 2.17

Ext. Length

8.76

Finish

Powder coated Black

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

YES

UPC

666020011640

Overall Dims

2.17 x 5.75 x 8.75

Style (ipns)

Standard Box

Dim LxWxD (ipns)

8.75" x 5.75" x 2.17"

Weight - Ounces (ipns)

49

Depth (ipns)

2.17"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

8.75"

Width (ipns)

5.75"

Finish (ipns)

Black Smooth Powder Coat

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
