Price List
AN-1307-A
Factory Lead Time: 42
RoHs Compliant

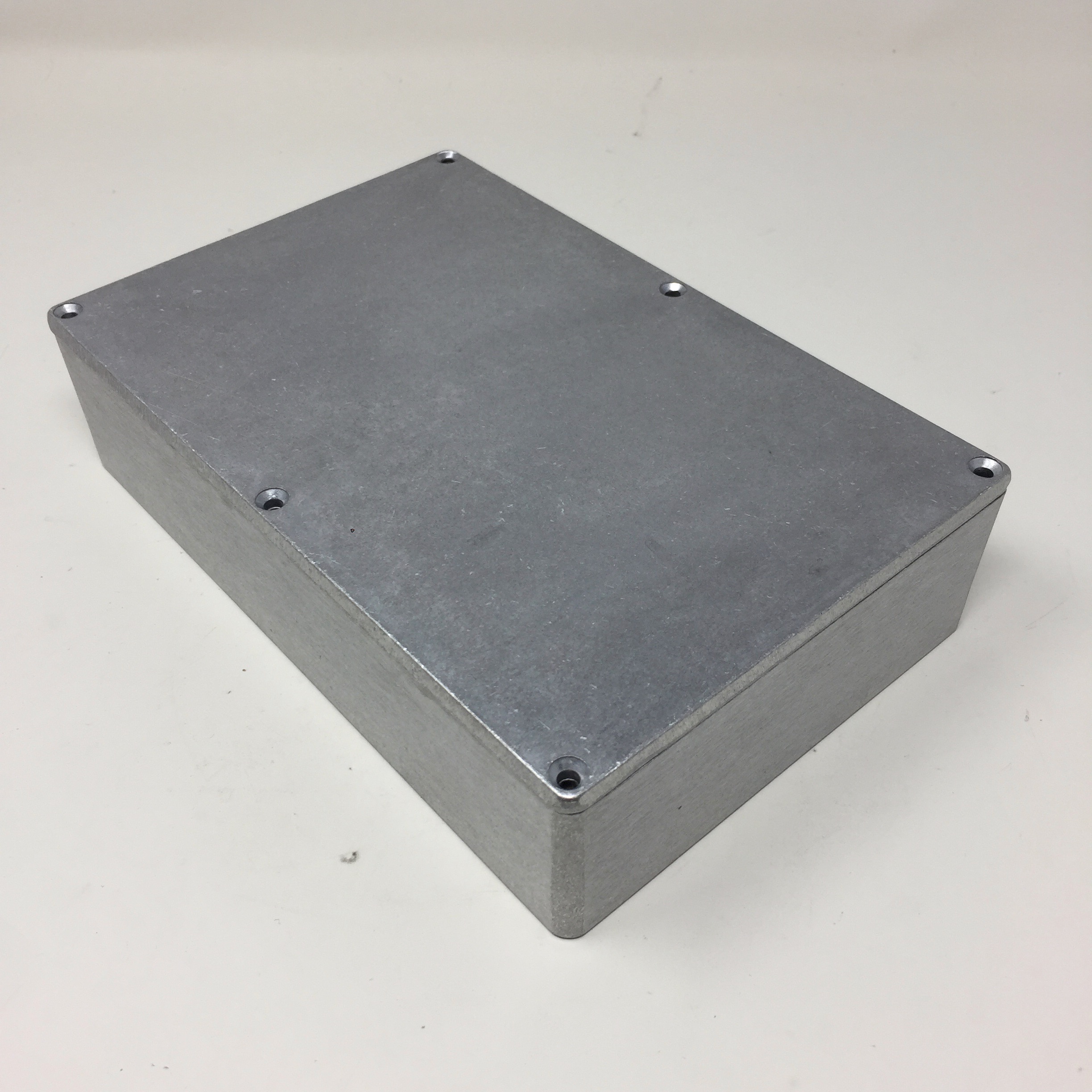

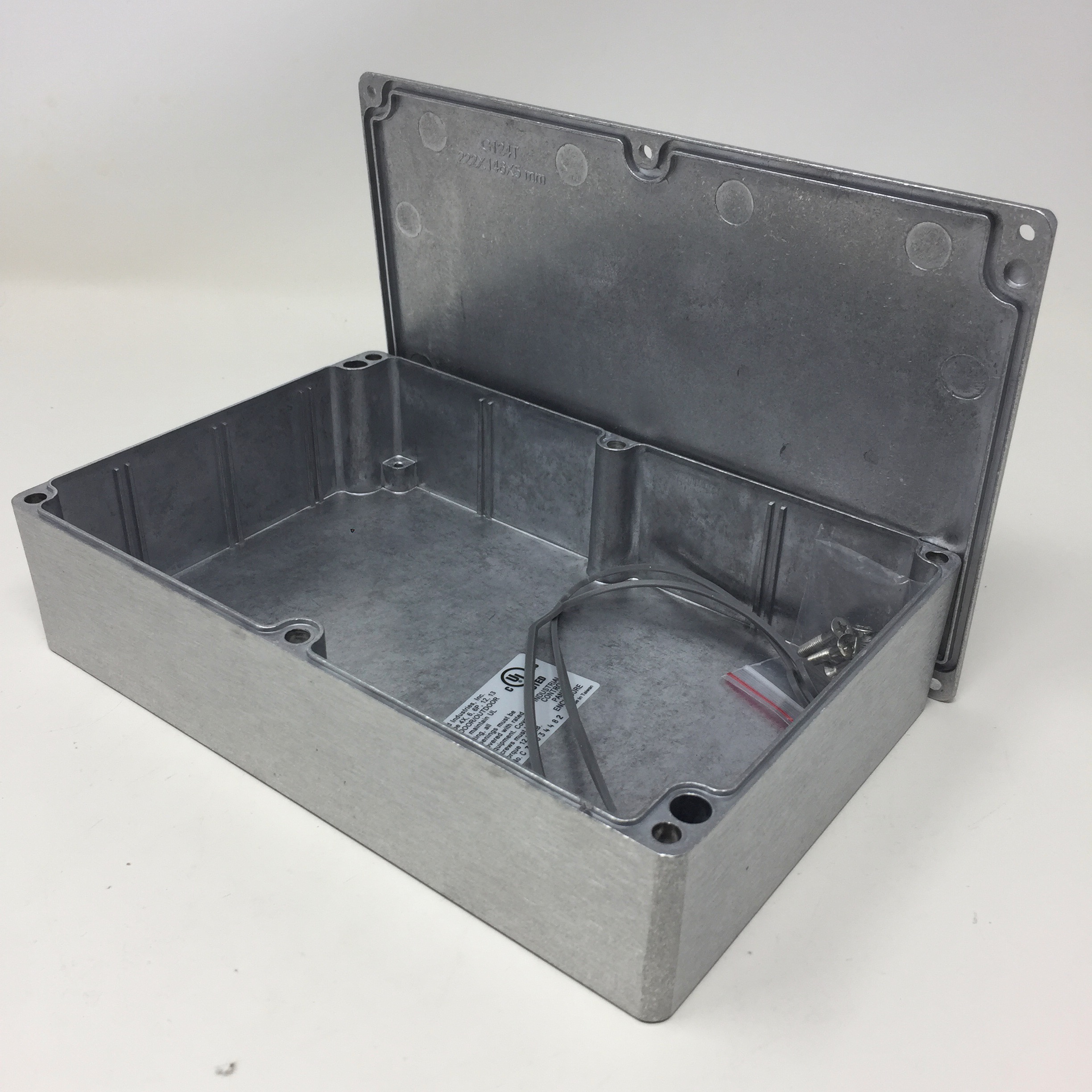

AN-ABUD 8.75" x 5.75" x 2.17" Aluminum Die Cast Standard Box in Natural Finish with premolded silicon gasket.
Hawk Electronics
Factory Lead Time: 42
RoHs Compliant
Product Attributes
Gasket
Silicon Pre molded continuous, Included
Ext. Dim (L†x W†x Dâ€)
8.76 x 5.75 x 2.17
Ext. Length
8.76
Finish
Natural (aluminum)
NEMA/UL
TYPE 4X, 6, 6P, 12, 13
Wall Mounting Holes
YES
UPC
666020011633
Overall Dims
2.17 x 5.75 x 8.75
Style (ipns)
Standard Box
Dim LxWxD (ipns)
8.75" x 5.75" x 2.17"
Weight - Ounces (ipns)
49
Depth (ipns)
2.17"
Mounting Hole Option (ipns)
WITH wall-mounting holes
Length (ipns)
8.75"
Width (ipns)
5.75"
Finish (ipns)
Natural Finish
Series Attributes
Body Material (ipns)
Aluminum Alloy #ADC-12
Cover Material (ipns)
Aluminum Alloy #ADC-12
Cover Screw Material (ipns)
M4 Stainless Steel, Non Magnetic
Gasket Material (ipns)
Silicone molded into base
Maximum Operating Temp (ipns)
+80C
NEMA Rating (ipns)
1, 2, 4, 4X, 12, 13
Protection Rating (ipns)
IP65 of IEC 529
UL Rating (ipns)
508-4
