filter--iconPrice List

AN-1305-A

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

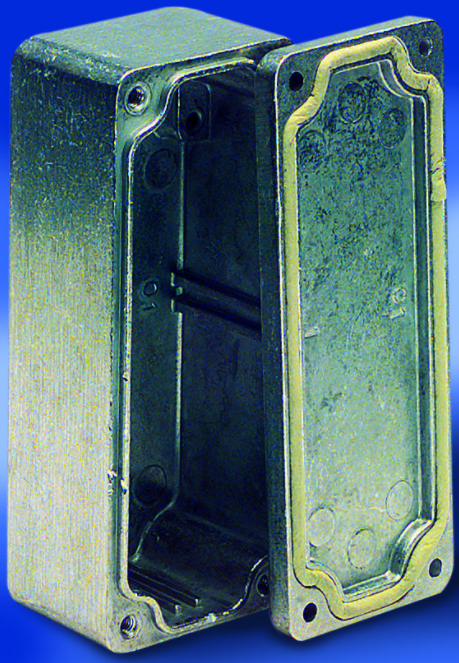

BUD 5.83" x 4.25" x 2.95" Aluminum Die Cast Standard Box in Natural Finish with premolded silicon gasket.

$19.20

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

5.83 x 4.25 x 2.95

Ext. Length

5.83

Finish

Natural (aluminum)

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

No

UPC

666020021885

Overall Dims

2.95 x 4.25 x 5.83

Style (ipns)

Standard Box

Dim LxWxD (ipns)

5.83" x 4.25" x 2.95"

Weight - Ounces (ipns)

24

Depth (ipns)

2.95"

Mounting Hole Option (ipns)

NO wall-mounting Holes

Length (ipns)

5.83"

Width (ipns)

4.25"

Finish (ipns)

Natural Finish

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
