AN-1303-A

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 10
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

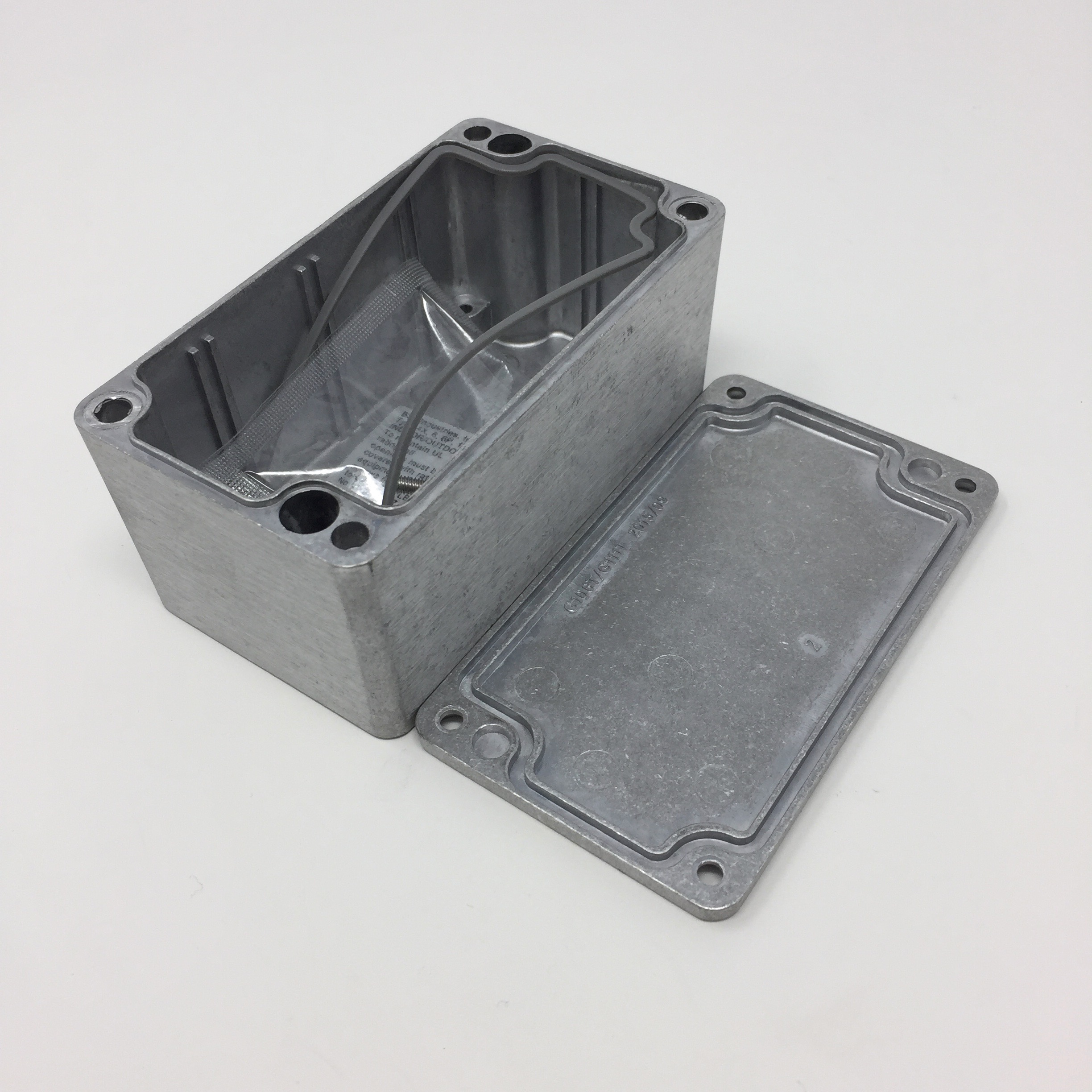

BUD 4.53" x 2.56" x 2.17" Aluminum Die Cast Standard Box in Natural Finish with premolded silicon gasket.

$9.20

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

4.53 x 2.56 x 2.17

Ext. Length

4.53

Finish

Natural (aluminum)

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

YES

UPC

666020021878

Overall Dims

2.17 x 2.56 x 4.53

Style (ipns)

Standard Box

Dim LxWxD (ipns)

4.53" x 2.56" x 2.17"

Weight - Ounces (ipns)

12

Depth (ipns)

2.17"

Mounting Hole Option (ipns)

WITH wall-mounting holes

Length (ipns)

4.53"

Width (ipns)

2.56"

Finish (ipns)

Natural Finish

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
