AN-1300-AB

BUD | AN-A Series | Enclosures
green-check-icon Total Stock: 3
yellow-timer-icon Factory Lead Time: 42
onlycheckmark RoHs Compliant
AN-A

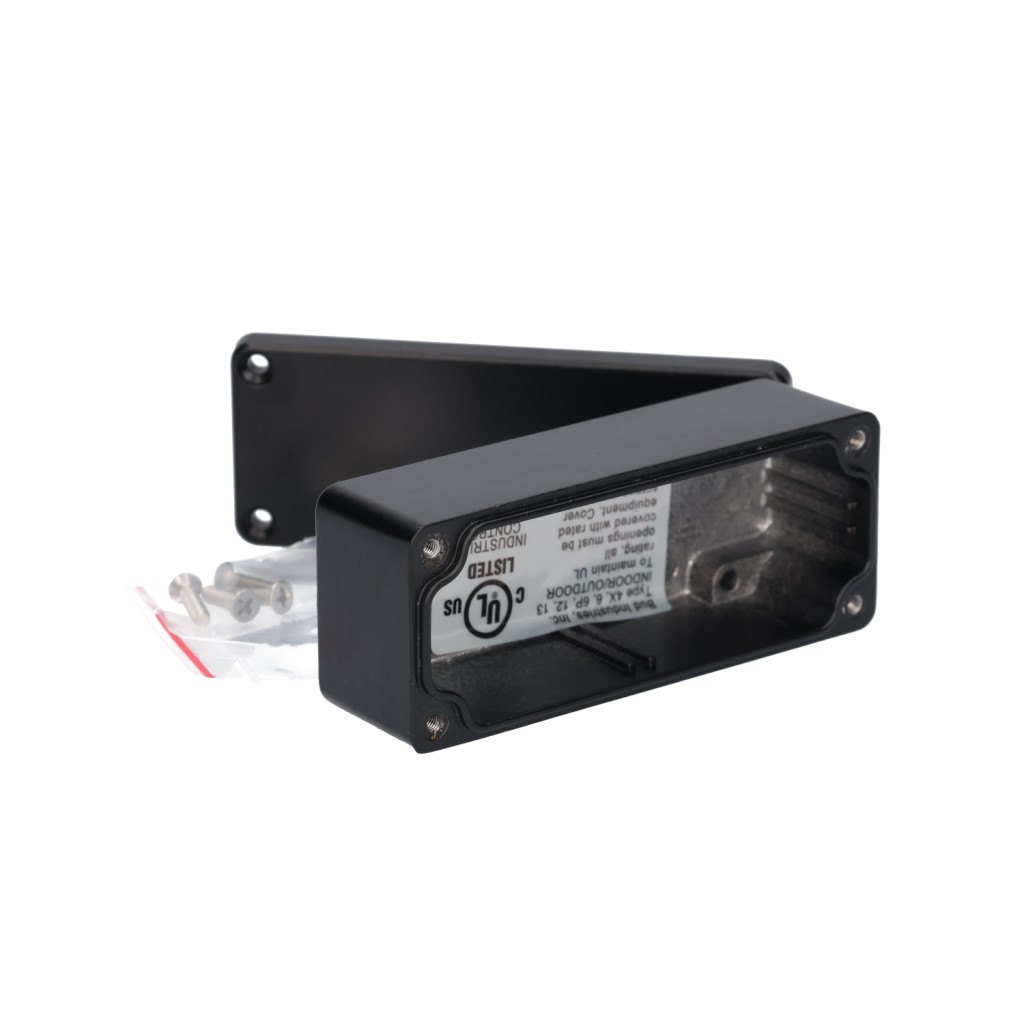

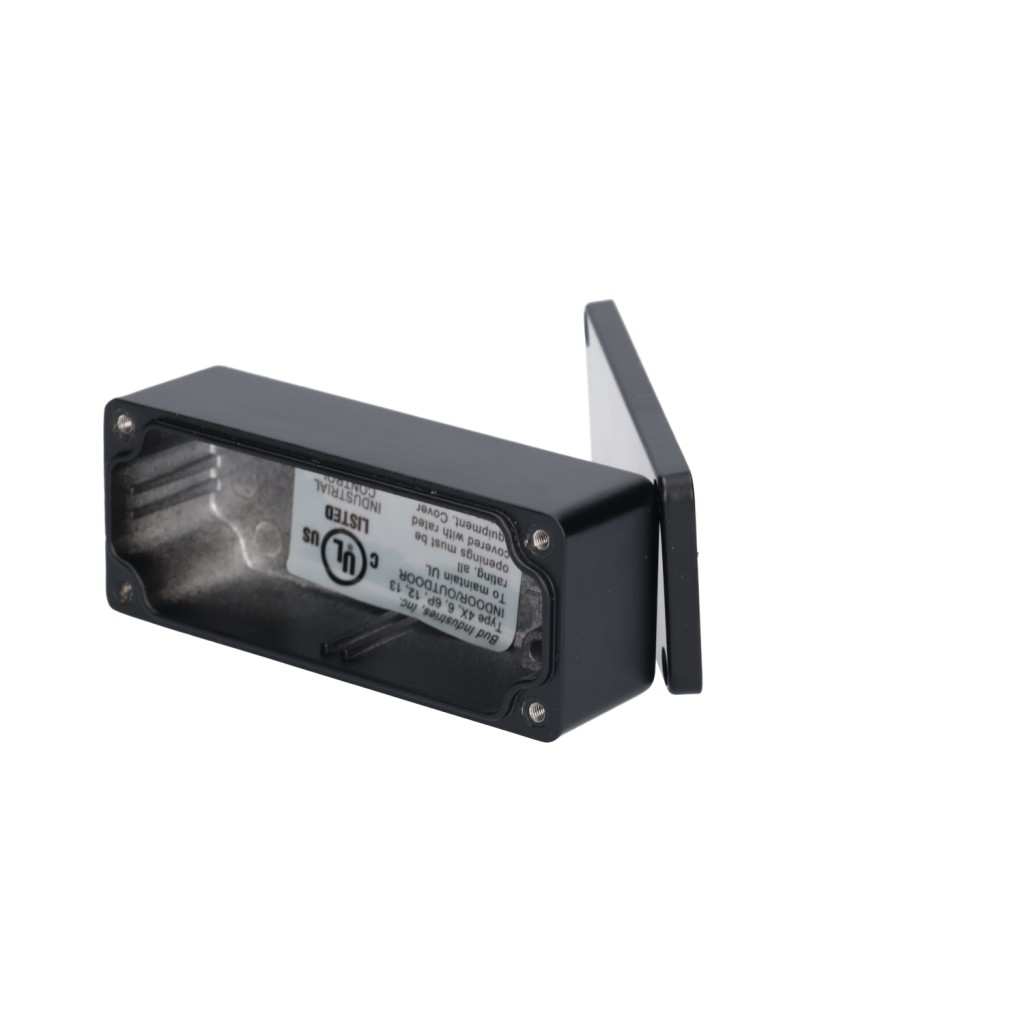

BUD 3.54" x 1.42" x 1.18" Aluminum Die Cast Standard Box in Black Smooth Powder Coat with premolded silicon gasket.

$8.60

Min: 1  Mult: 1

Product Attributes

Gasket

Silicon Pre molded continuous, Included

Ext. Dim (L” x W” x D”)

3.54 x 1.42 x 1.18

Ext. Length

3.54

Finish

Powder coated Black

NEMA/UL

TYPE 4X, 6, 6P, 12, 13

Wall Mounting Holes

No

UPC

666020021861

Overall Dims

1.18 x 1.42 x 3.54

Style (ipns)

Standard Box

Dim LxWxD (ipns)

3.54" x 1.42" x 1.18"

Weight - Ounces (ipns)

5

Depth (ipns)

1.18"

Mounting Hole Option (ipns)

NO wall-mounting Holes

Length (ipns)

3.54"

Width (ipns)

1.42"

Finish (ipns)

Black Smooth Powder Coat

Body Material (ipns)

Aluminum Alloy #ADC-12

Cover Material (ipns)

Aluminum Alloy #ADC-12

Cover Screw Material (ipns)

M4 Stainless Steel, Non Magnetic

Gasket Material (ipns)

Silicone molded into base

Maximum Operating Temp (ipns)

+80C

NEMA Rating (ipns)

1, 2, 4, 4X, 12, 13

Protection Rating (ipns)

IP65 of IEC 529

UL Rating (ipns)

508-4
