Price List
0621
Total Stock: 1
Factory Lead Time: 4
RoHs Compliant

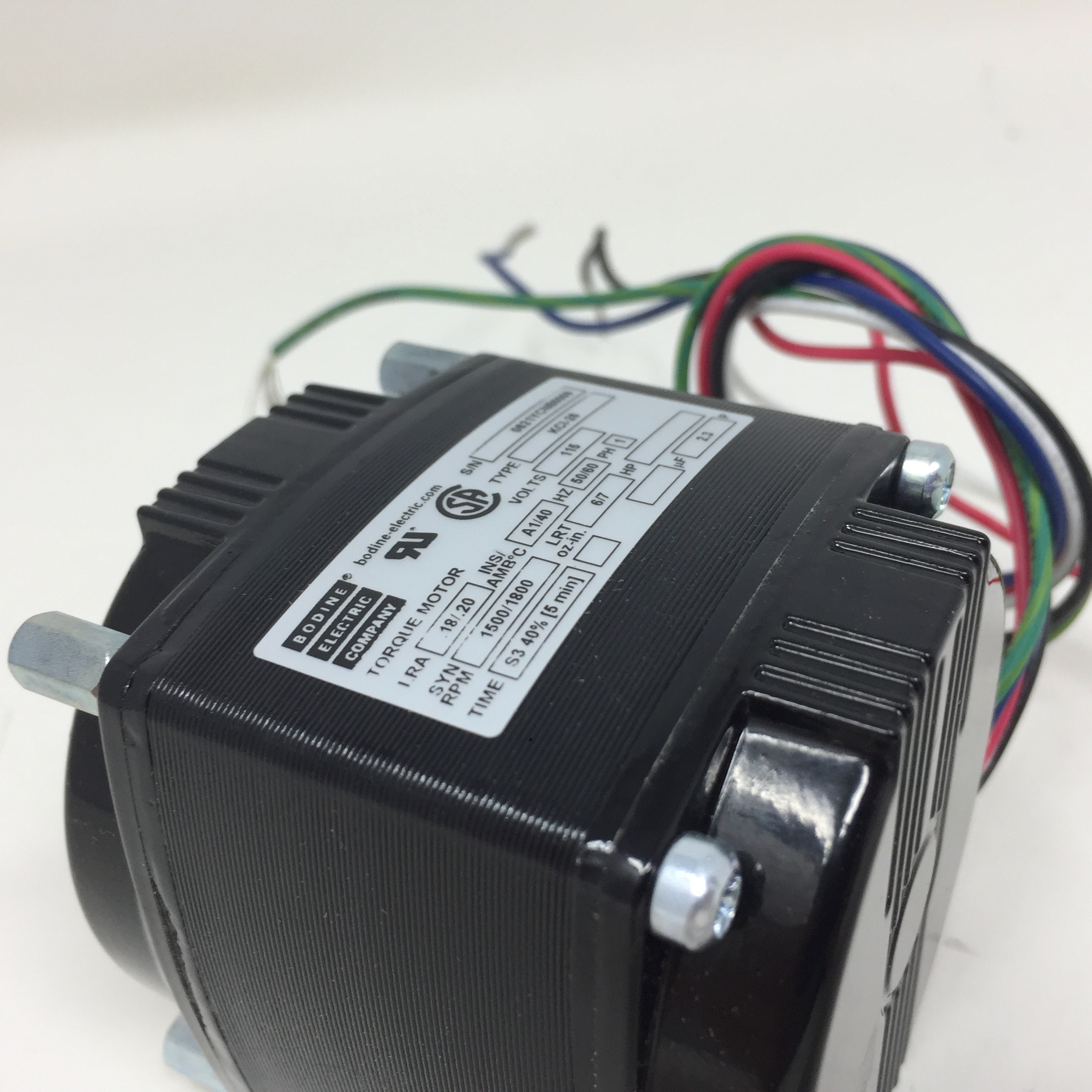

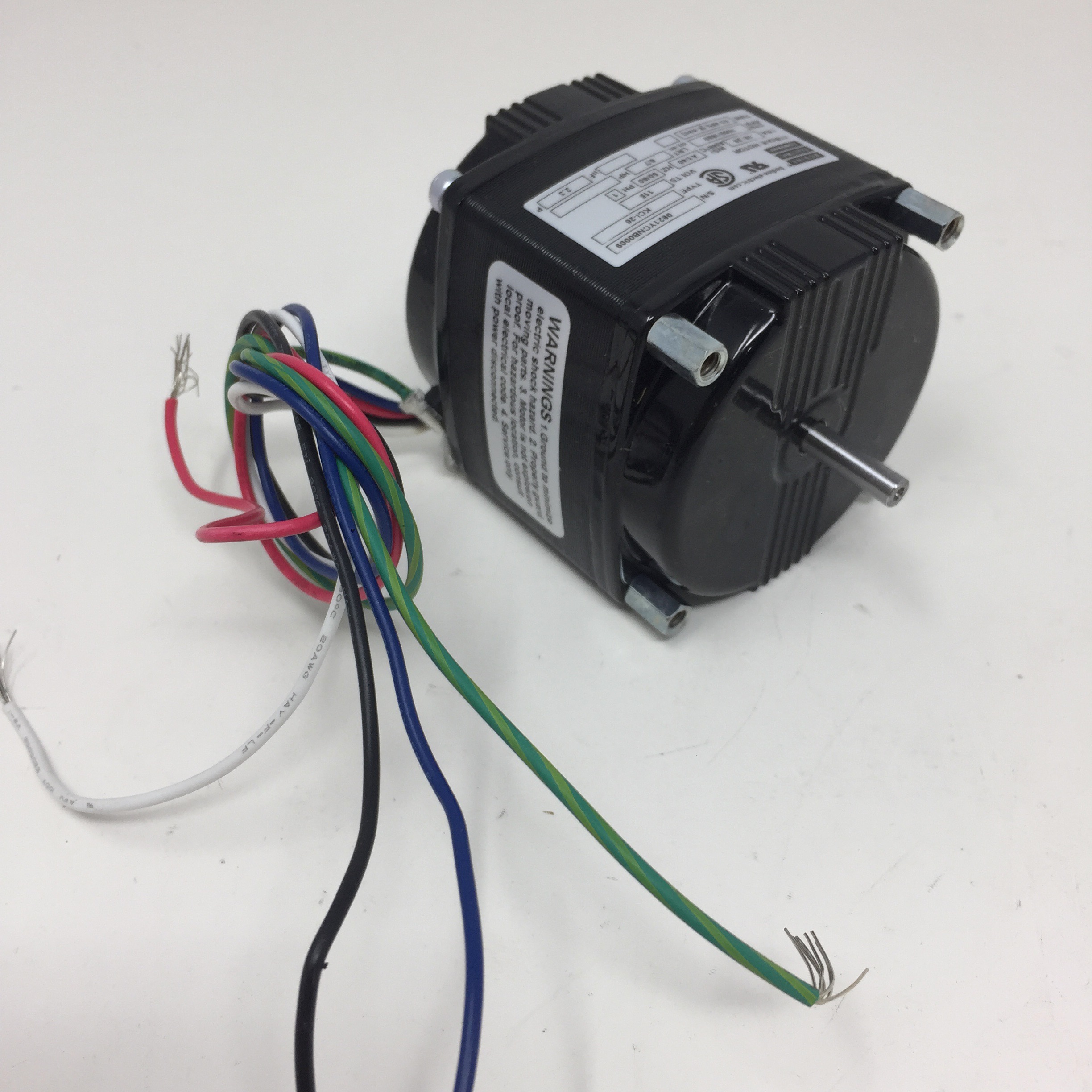

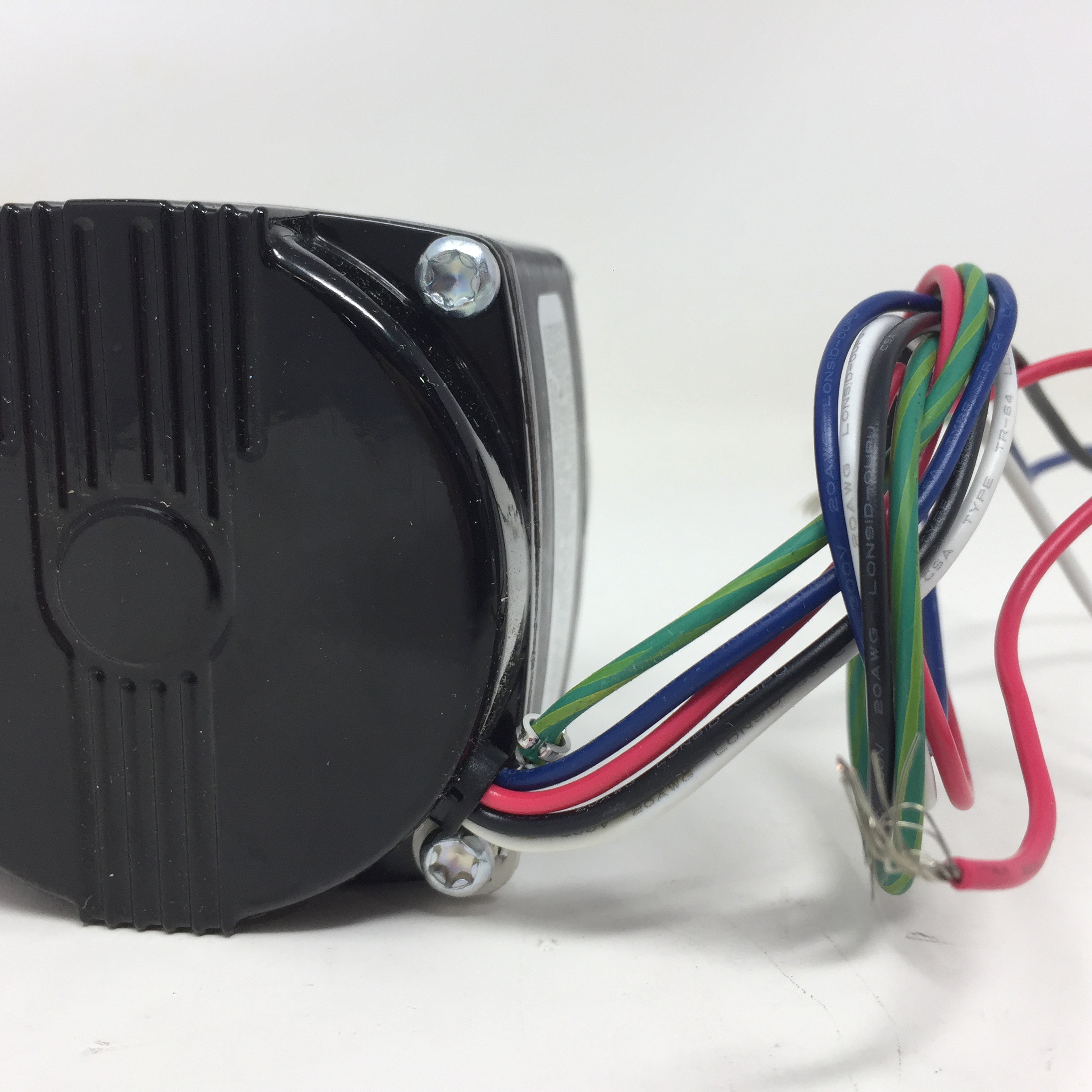

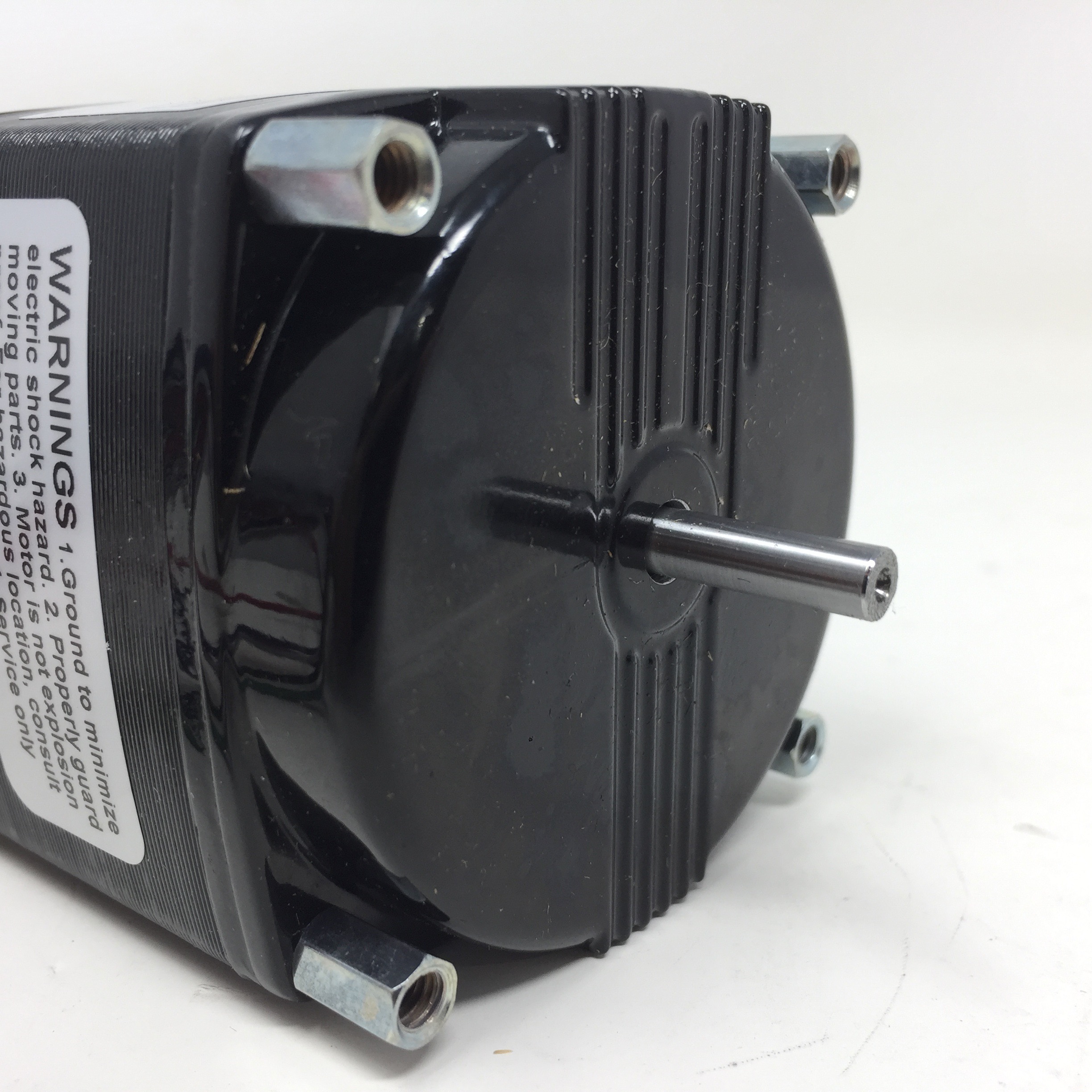

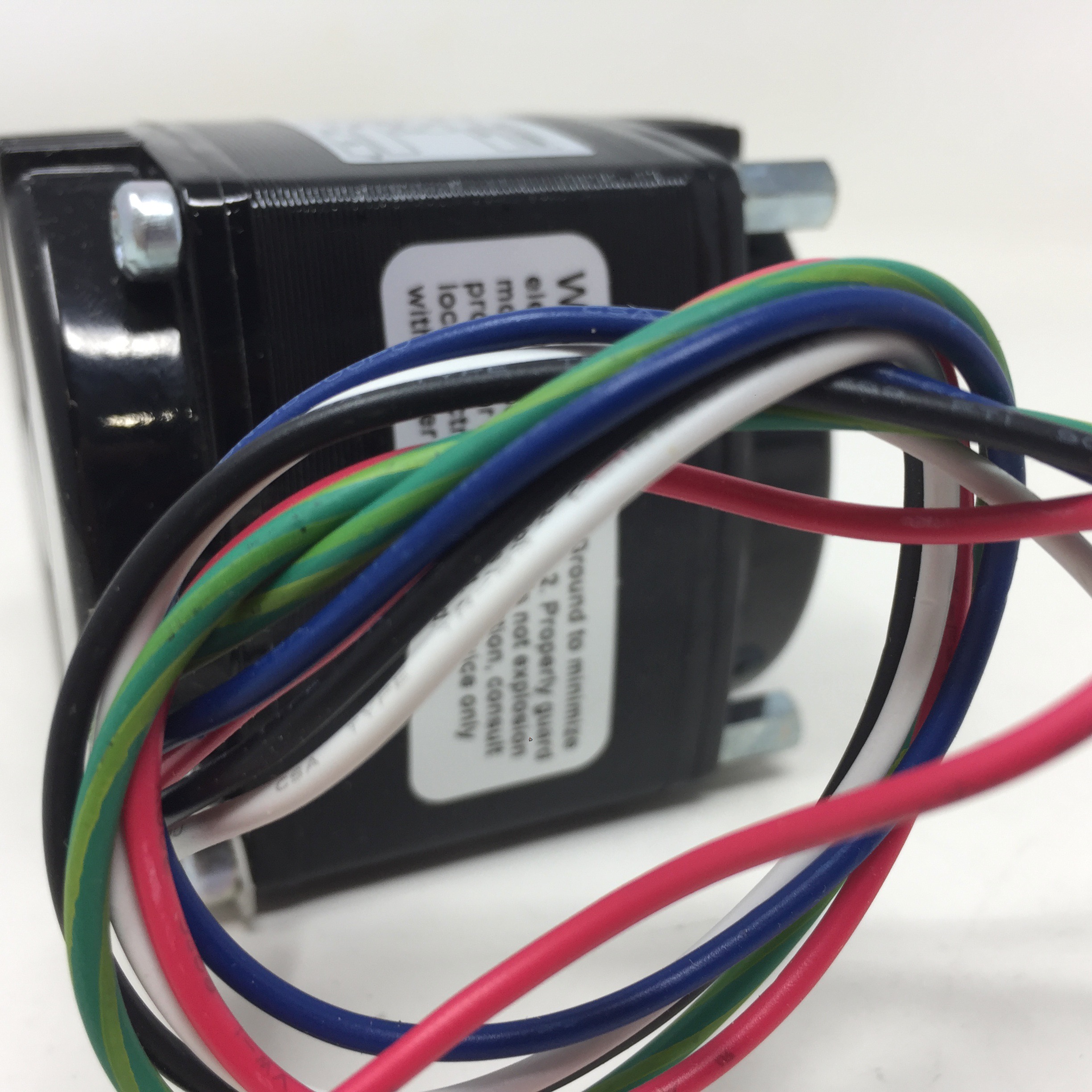

Bodine 1/300 Hp 115 V AC, Permanent Split Capacitor Motor MOD#0621 KCI-26
Hawk Electronics
Total Stock: 1
Factory Lead Time: 4
RoHs Compliant
Product Attributes
Power AC/DC
AC
List Price
$189.17
Model
0621
Supply Voltage
115 V
Input HP
1/300 Hp
Output RPM
1580 RPM
Gear Ratio
N/A
Motor Phase
1 ph
IP Rating
IP20
Stage
N/A
Application Info
Capacitor is included with motor.Face mounting is standard.
Full Load Torque
7 oz-in
Catalog Page
18
Enclosure Type
TENV (Totally Enclosed Non-Ventilated)
Full Load Current
0.74 A
Duty Cycle
Continuos
Mounting Type
Face
WEIGHT
2.25 LBS
Standards
CSA;CURUS;ROHS;UL
Frequency Rating
60
Insulation Class
A
Over Hung Load
0 LBS
NEMA Frame
KCI
Capacitor
494 01047 Included
CAD DRAWING
BODIN PAGE
Wiring Diagram
Series Attributes
Not available at this time.
