Price List
PSQ020M1-ON
Total Stock: 200
Factory Lead Time: TBD
RoHs Compliant

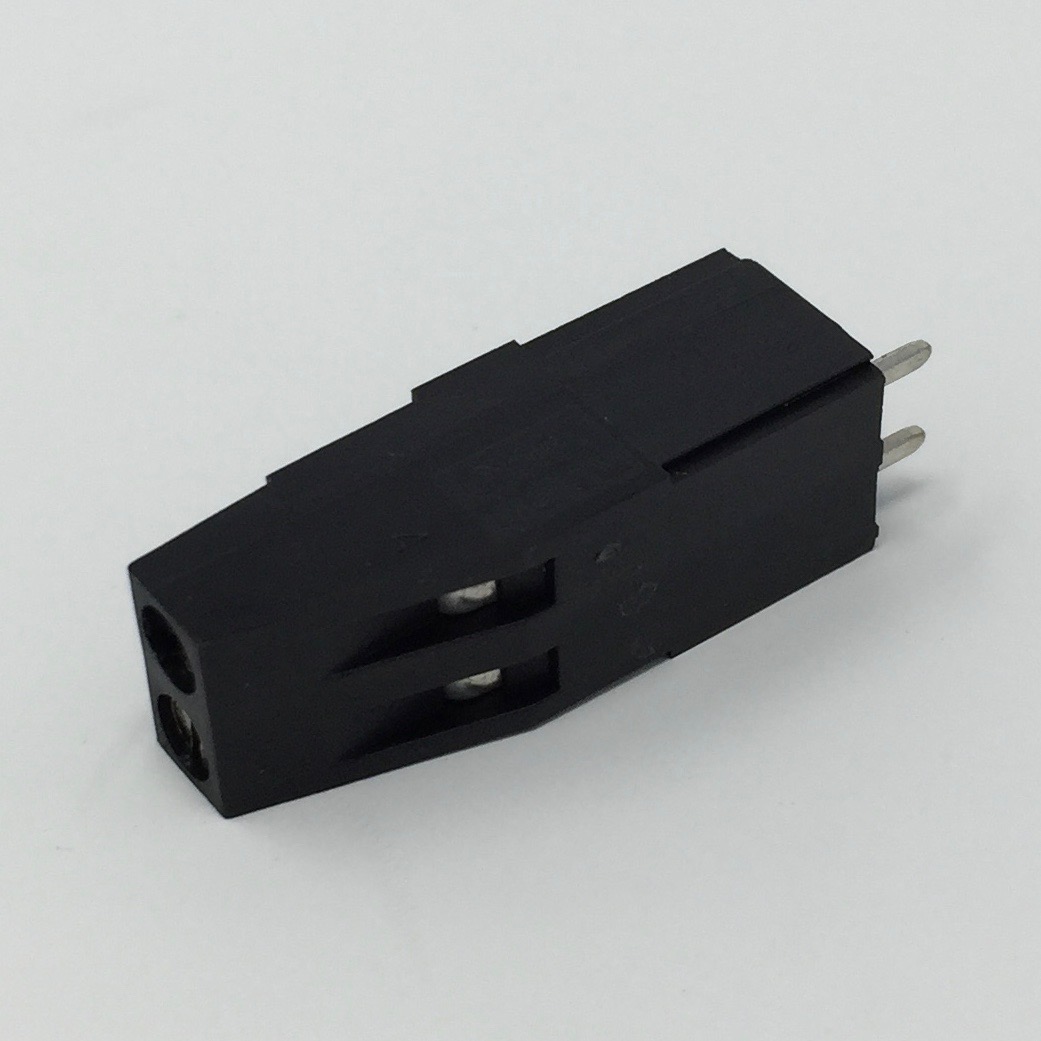

EB 02P 5.00mm Black Medium Tower Blockmaster PN: PSQ020M1-ON
Hawk Electronics
Total Stock: 200
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Black
Torque
0.5 Nm
Strip length
6.5mm
Spacing
5.00mm
Positions
2
Pin Dim.
1mm x 0.8mm
PCB thickness
max 2.4mm
PCB holes
min 1.4mm
Operating Temp
-40C to +110C
Material Terminal
Copper alloy, Tin plated
Material Screw
M3, copper alloy, Ni plated
Material Housing
Polyamide 6,6 (UL94V-0)
Material Clamp
Copper alloy, Ni plated
List Price@Factory Min
0.83
Current
24A @ 300V
Wire Range
12 to 30 AWG
Series Attributes
Not available at this time.
