MTB0200T
Total Stock: 49
Factory Lead Time: TBD
RoHs Compliant

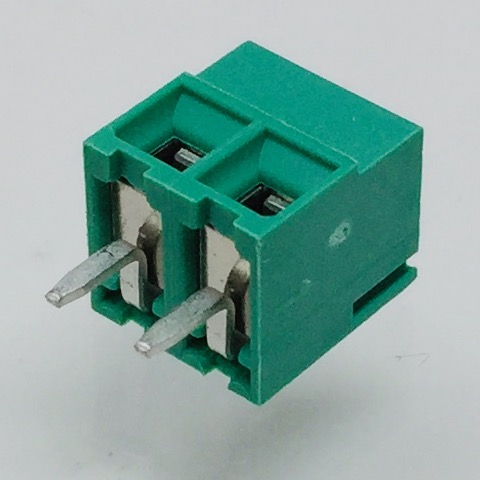

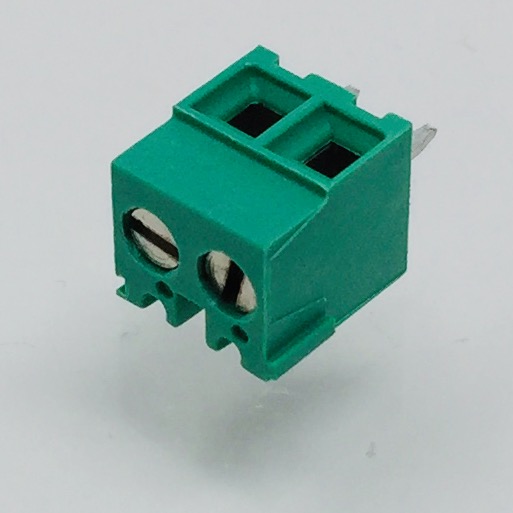

EB 02P 3.81mm Green Low Profile Blockmaster PN: MTB0200T
Hawk Electronics
Total Stock: 49
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Green
Torque
0.25Nm
Strip length
5mm
Spacing
3.81mm
Positions
2
Pin Dim.
0.9mm x 0.5mm
PCB thickness
max 1.8mm
PCB holes
min 1.1mm
Operating Temp
-40C to +110C
Material Terminal
Copper alloy, Ni plated
Material Screw
M2, copper alloy, Ni plated
Material Housing
Polyamide 6,6 (UL94V-0)
Material Clamp
Copper alloy, Ni plated
List Price@Factory Min
0.46
Current
12A @ 300V
Wire Range
14 to 30 AWG
Series Attributes
Not available at this time.
