CVF040L1

Blockmaster | CVF | Terminal Blocks
green-check-icon Total Stock: 50
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

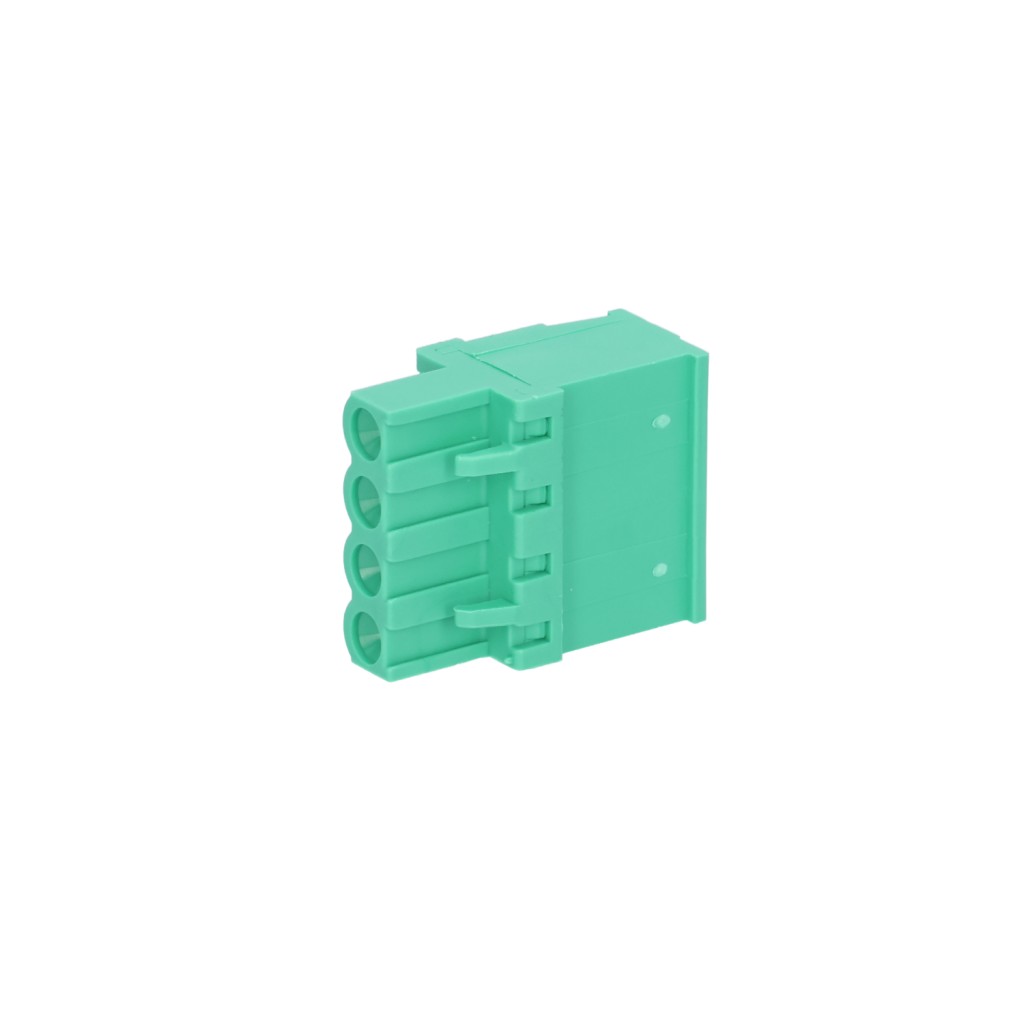

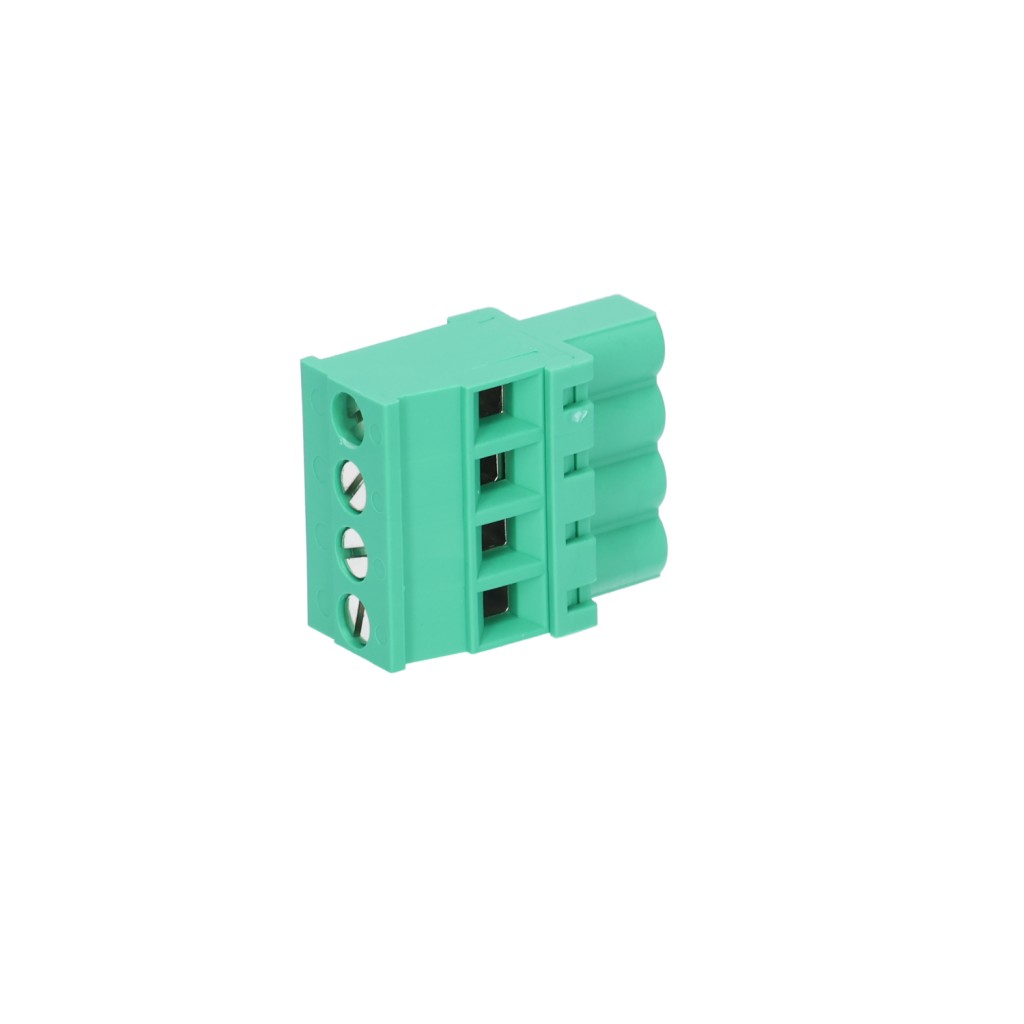

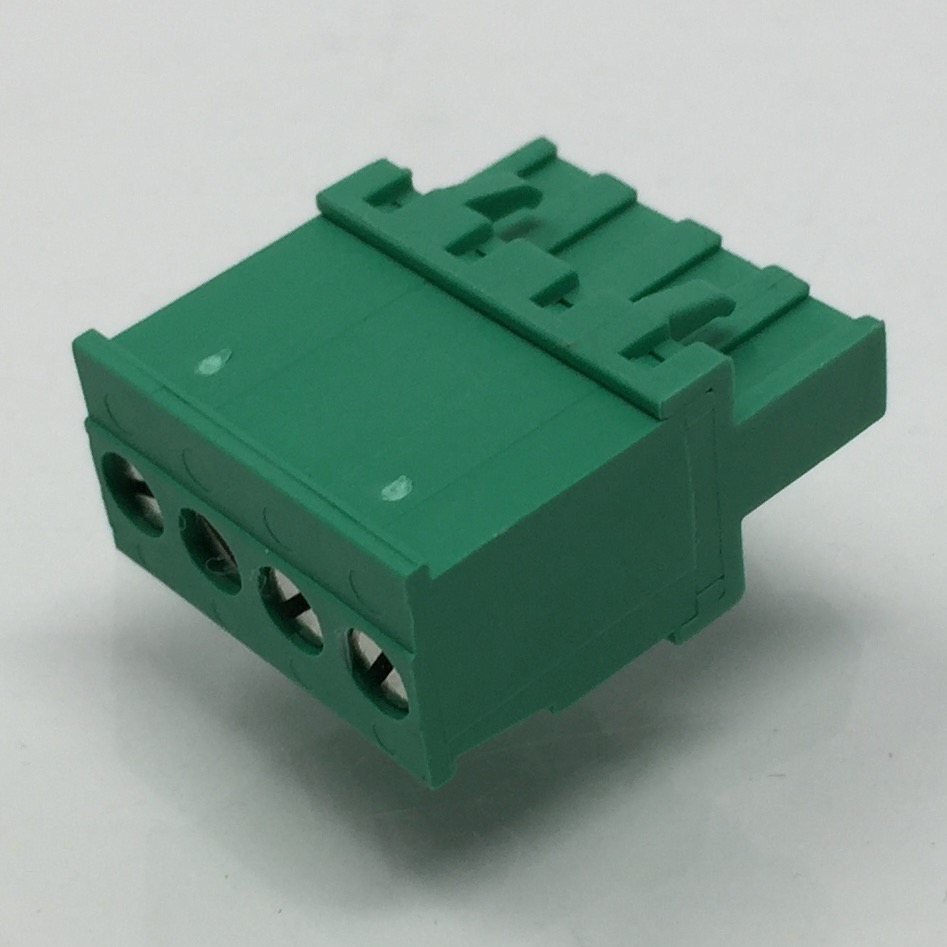

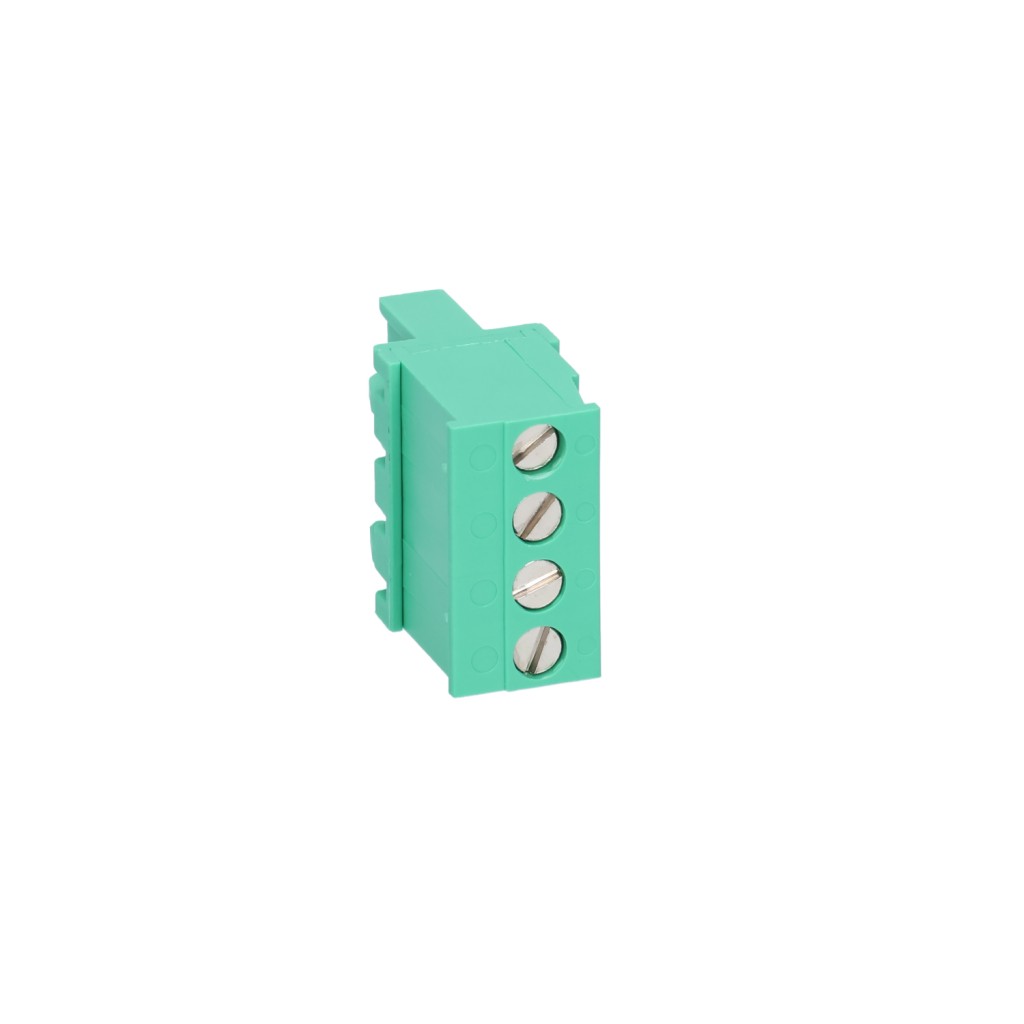

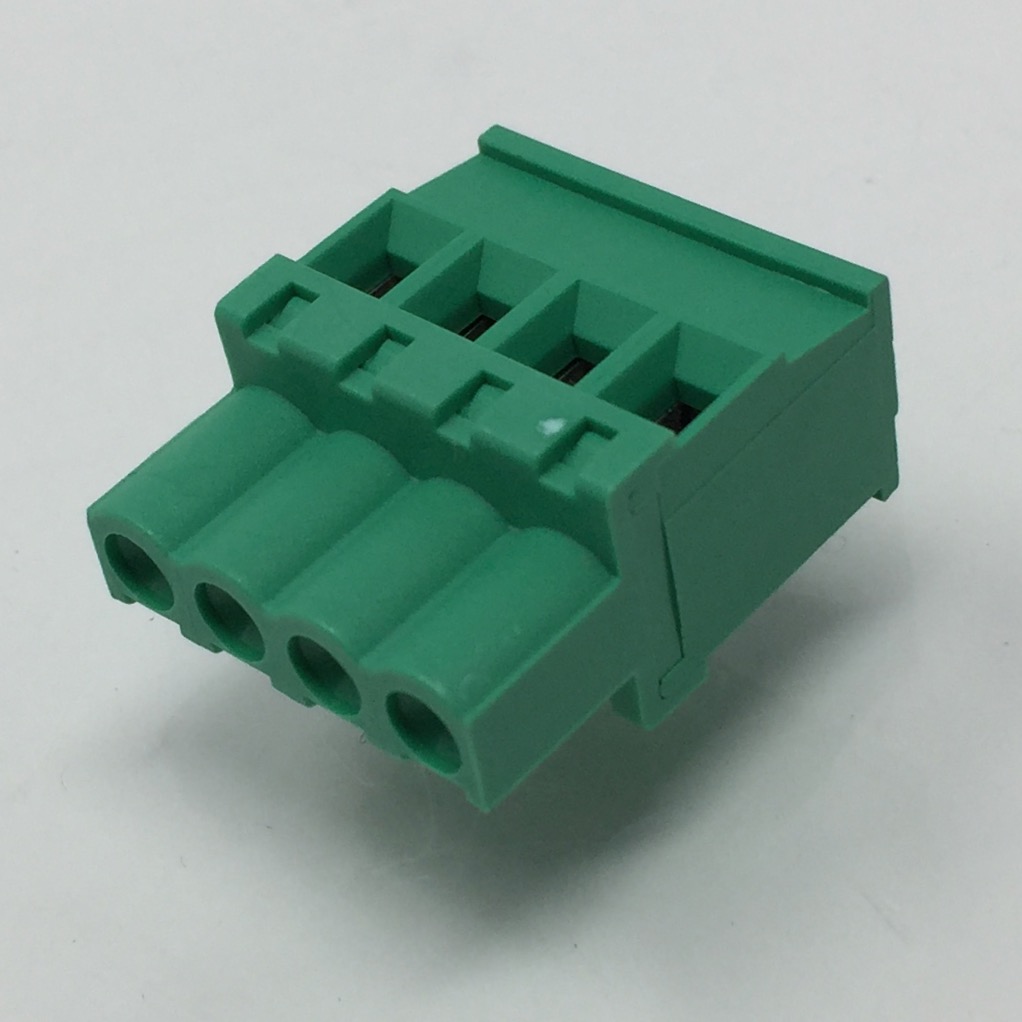

PB 04P 5.00mm Green Vert. Left Blockmaster PN: CVF040L1

$2.40

Min: 600  Mult: 300

Product Attributes

Color

Green

Torque

3.5 in-lb

Strip length

6mm

Spacing

5.00mm

Positions

4

Operating Temp

-40C to +110C

Material Spring

Phosphorus bronze,Tin plated

Material Screw

M3, copper alloy, Ni plated

Material Housing

Polyamide 6,6 (UL94V-0)

Material Clamp

Copper alloy, Ni plated

List Price@Factory Min

1.76

Insertion force

max 3 N

Current

12A @ 300V

Wire Range

12 to 30 AWG

Not available at this time.
