Price List
CTM039V8
Total Stock: 15
Factory Lead Time: TBD
RoHs Compliant

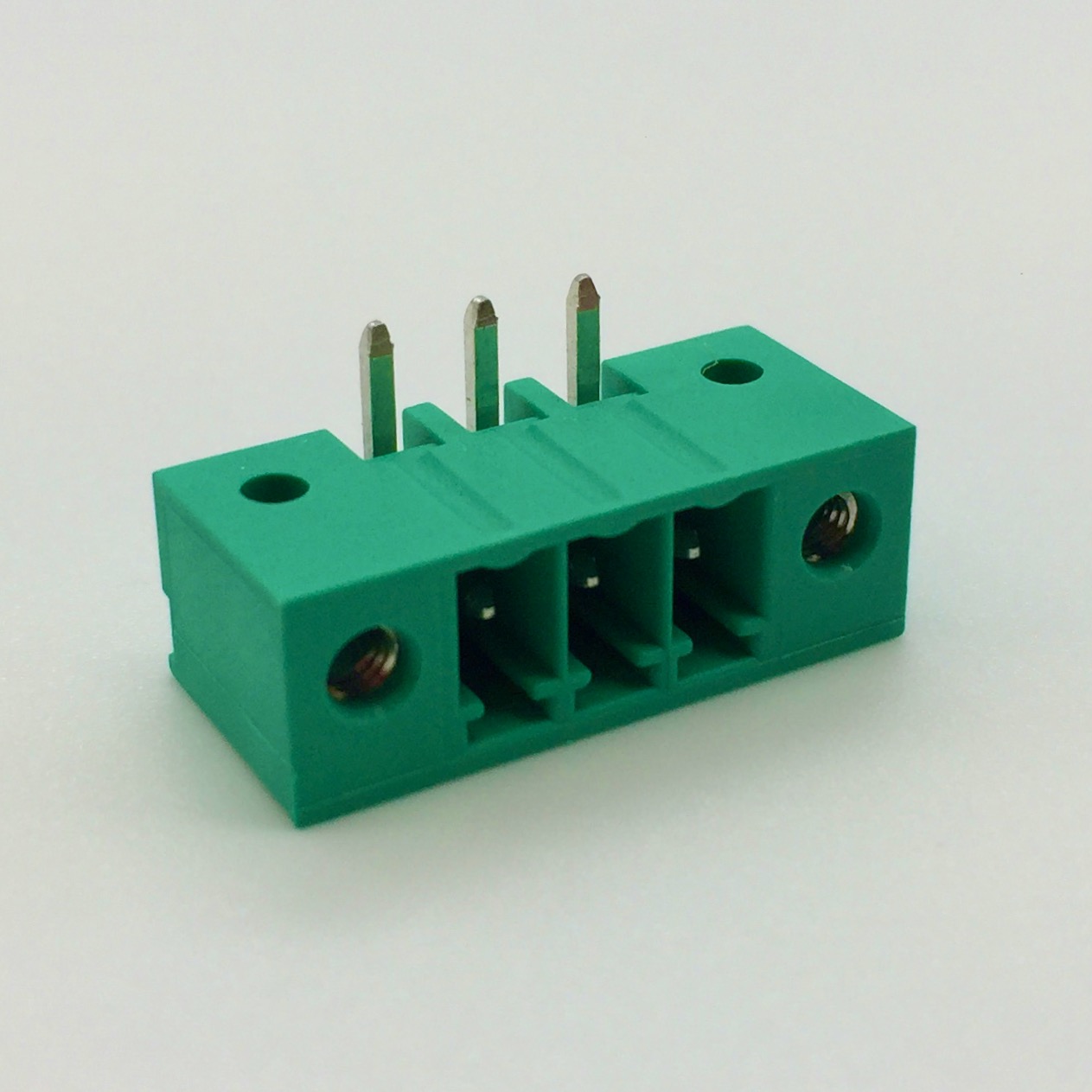

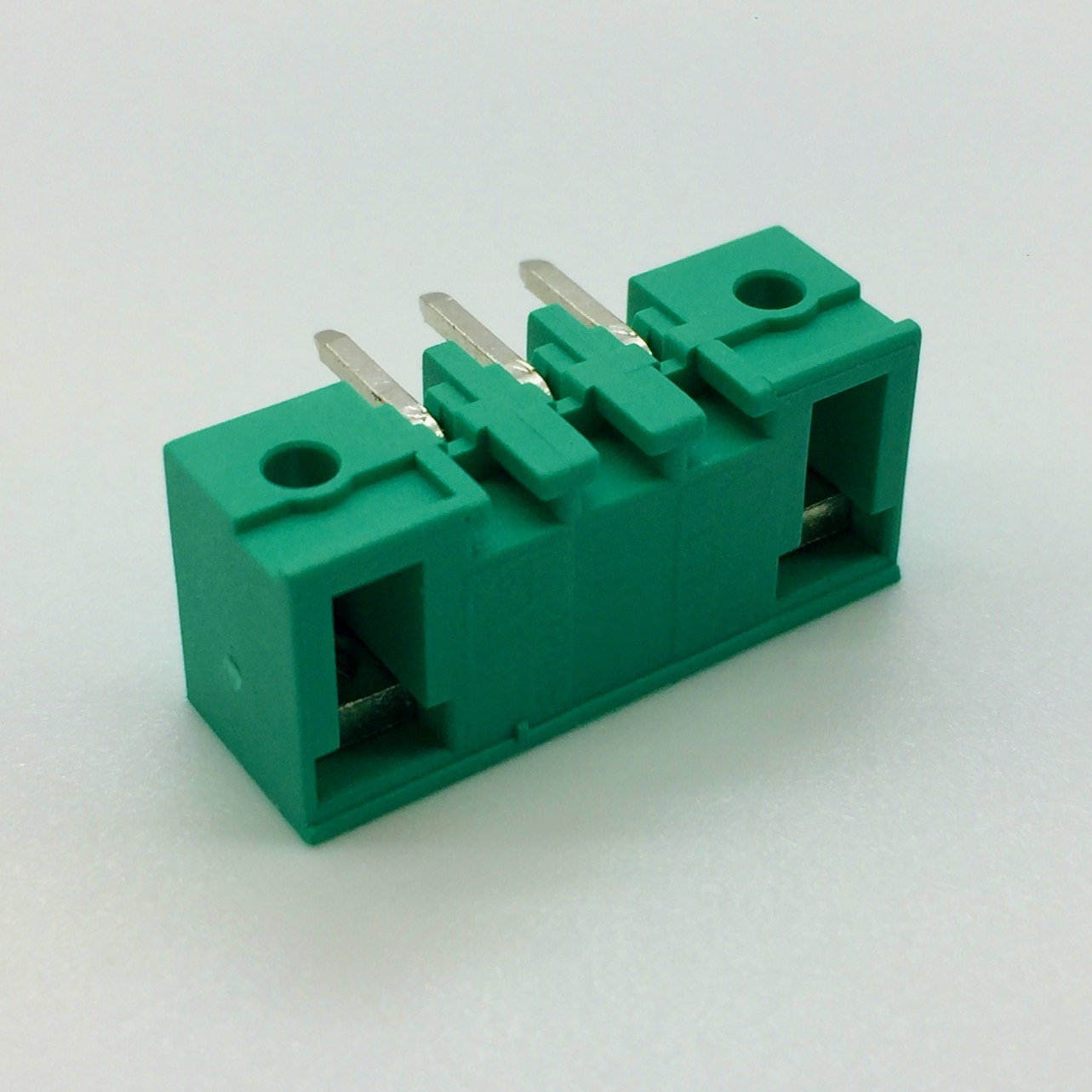

PB 03P 3.50mm header screwflng RACE Blockmaster PN: CTM039V8
Hawk Electronics
Total Stock: 15
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Green
Positions
3
Pin Dia.
0.8mm x 0.8mm
PCB thickness
max 2.4mm
PCB holes
min 1.2mm
Operating Temp
-40C to +110C
Material Pin
Bronze,Tin plated
Material Housing
Polyamide 6,6 (UL94V-0)
List Price@Factory Min
1.52
Current
8A @ 250V
Spacing
3.5mm
Series Attributes
Not available at this time.
