Price List
CIM020P7
Total Stock: 33
Factory Lead Time: TBD
RoHs Compliant

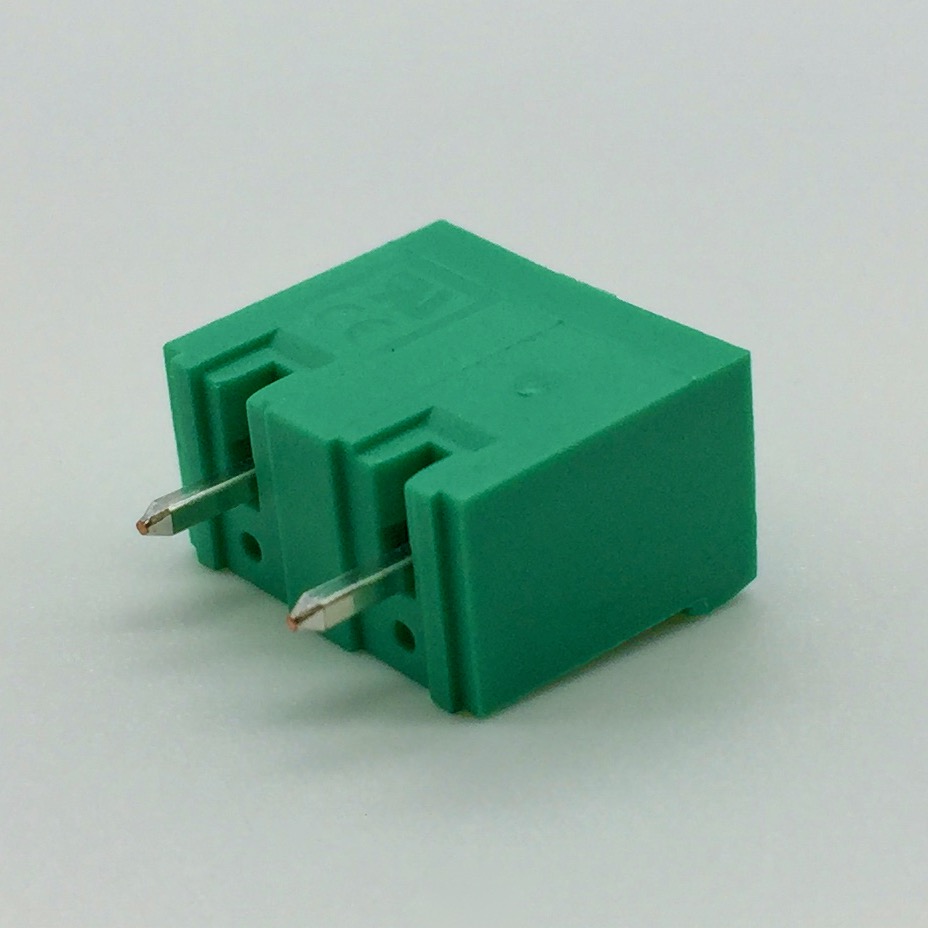

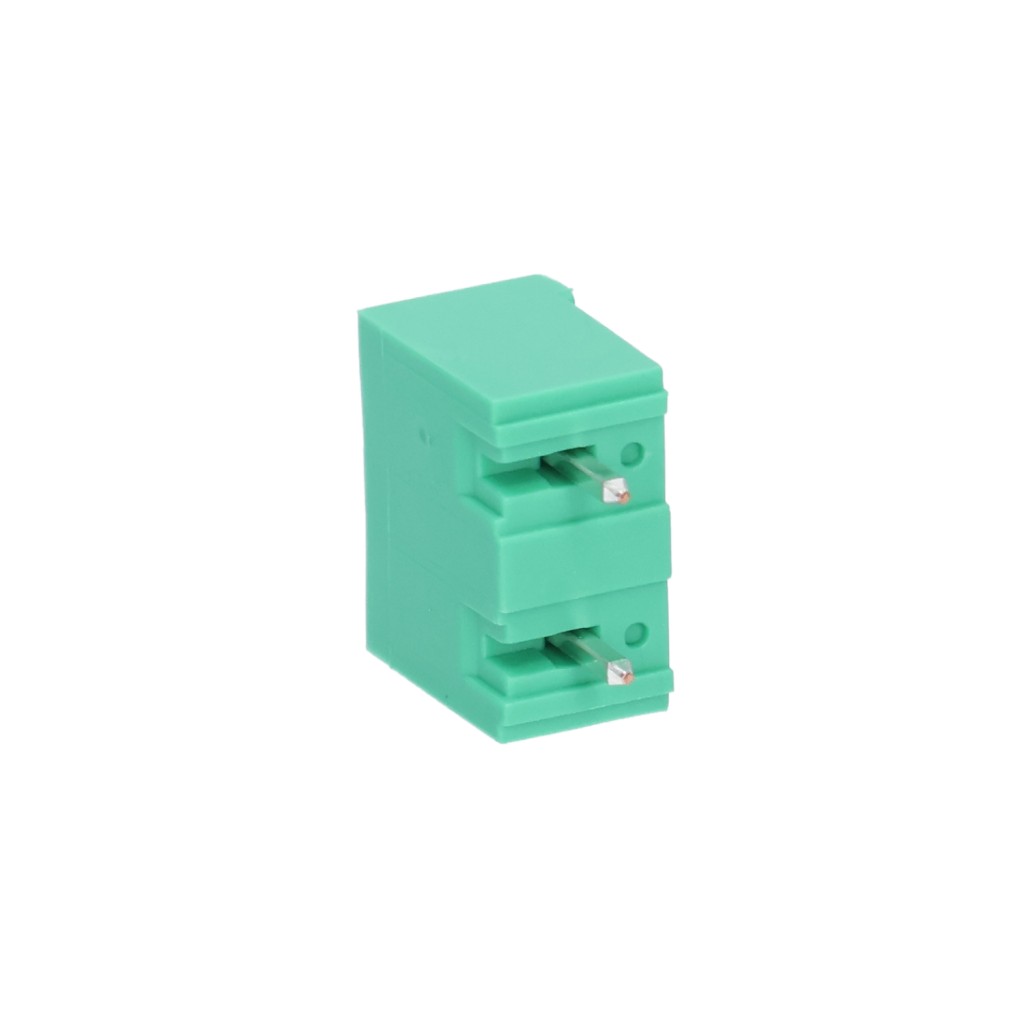

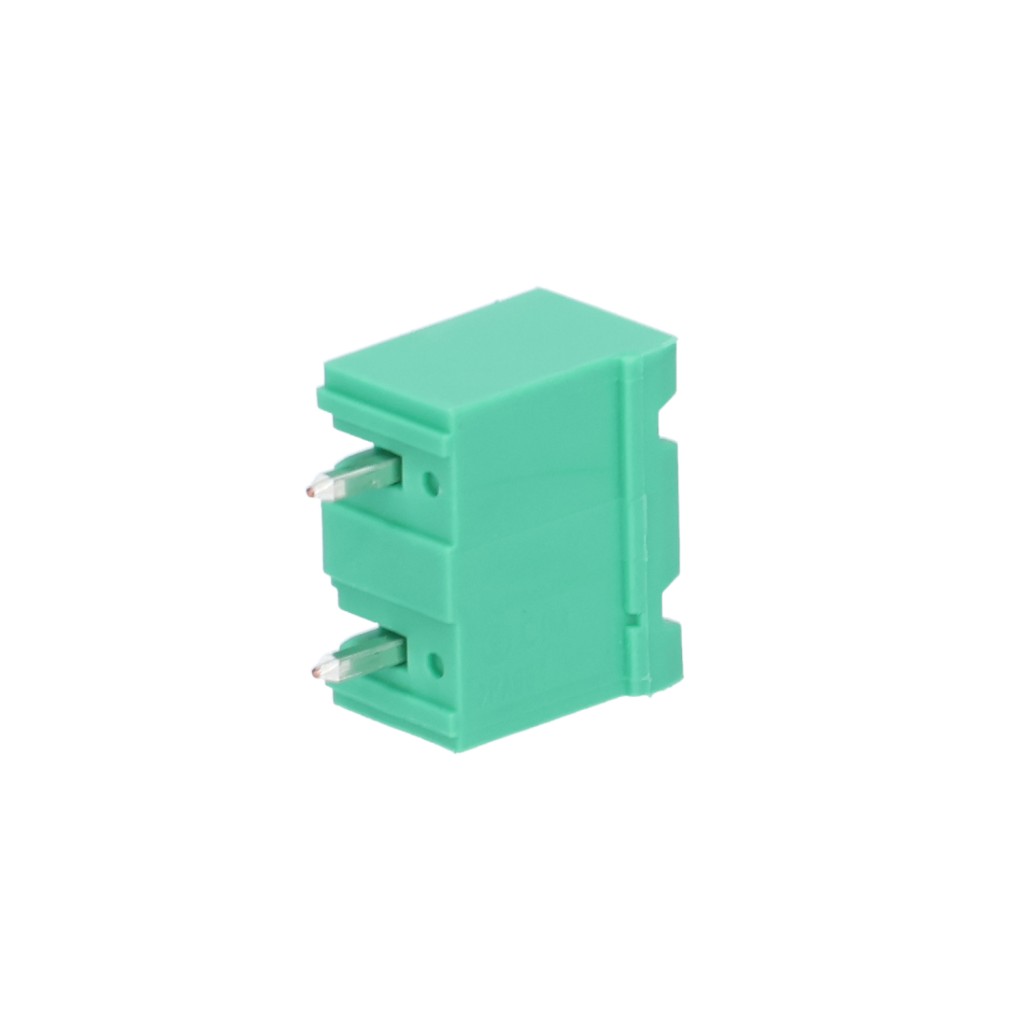

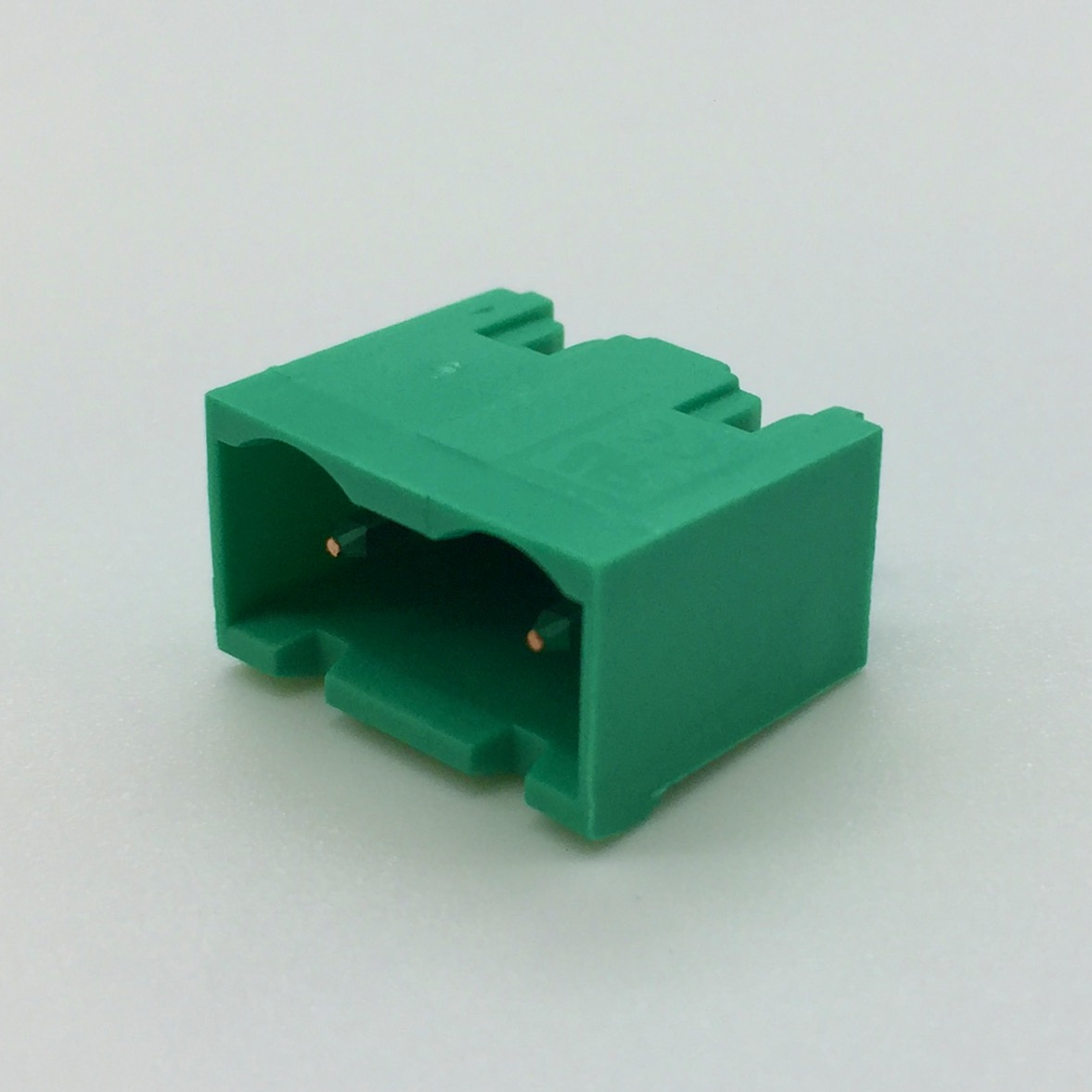

CIMPB 02P 7.62mm Green Header Vt CE Blockmaster PN: CIM020P7
Hawk Electronics
Total Stock: 33
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Green
Positions
2
PCB thickness
max 2.4mm
PCB holes
min 1.4mm
Operating Temp
-40C to +110C
Material Terminal
Bronze,Tin plated
Material Housing
Polyamide 6,6 (UL94V-0)
List Price@Factory Min
0.33
Insertion force
max 3 N
Current
12A @ 450V
Spacing
7.62mm
Series Attributes
Not available at this time.
