TS1D1U03A
Total Stock: 27
Factory Lead Time: TBD
RoHs Compliant

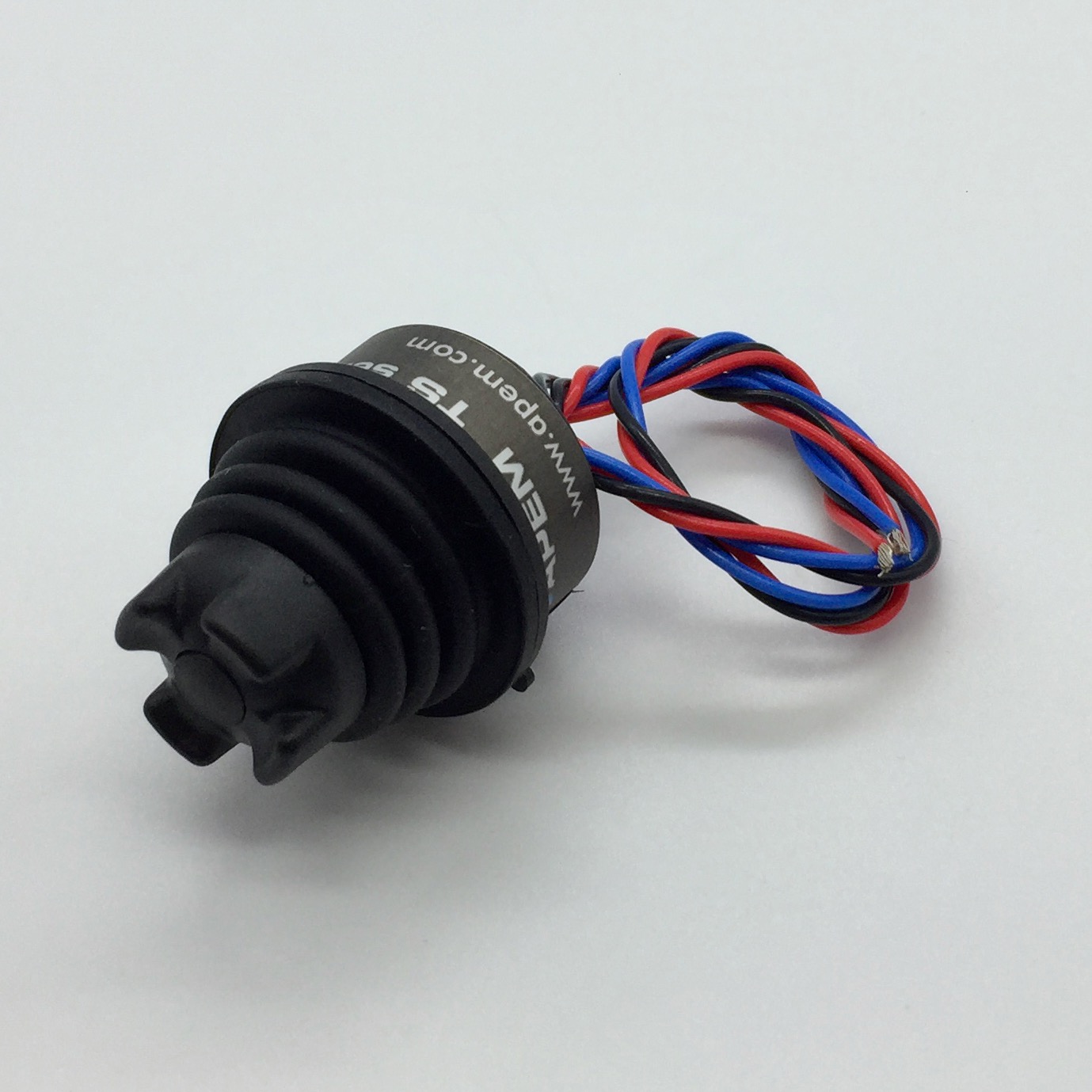

THUMB JOYSTICK 1-4 VOLT
Hawk Electronics
Total Stock: 27
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Handle
Castle
Pushbutton Contact Resistance
N/A
Pushbutton Insulation Resistance
N/A
Pushbutton Electrical Life
N/A
Pushbutton Dielectric Strength
N/A
Pushbutton Shock Resistance
N/A
Pushbutton Contact arrangement
N/A
Pushbutton Stop Strength
N/A
Pushbutton Terminal Material
N/A
Pushbutton Vibration Resistance
N/A
Operation Force
3.1 N +/- 0.5 N
Operating Temp
-40C to + 85C
Storage Temp
-40C to + 85C
Handle Material
Glass Filled Nylon
Pushbutton Rating
N/A
Mounting Options
Drop-In
Sealing
IP68, IP69K(drop in option does not prevent panel Ingress
Body Material
Glass Filled Nylon
Mounting Accessories Included
4 push in connectors, drop in bezel and O-ring
Termination
22AWG 25cm PTFE
Limiter
Single axis
Output Options Sensor 1
1V to 4V
Output Options Sensor 2
0V to 5V
Power Supply Options
Single
Series Attributes
Boot Material
Silicone
Reverse Polarity Max
-10V
Return to Center Voltage Tolerance
+/- 200mV initial
Resolution
1.22 mV
Overvoltage Max
20V
Output Impedance
2 Ohms
Mechanical Angle of Movement
50 degrees
Maximum Vertical Load
200 N
Maximum Horizontal Load
150 N
Mass/Weight
18.25g +/- 5.0g
Expected Mechanical Life
1 million cycles
ESD
EN61000-4-2
EMC Immunity Level
EN61000-4-3
EMC Emissions Level
EN61000-6-3 – 2001
Centering Lever Action
Spring Centering
Supply Voltage Range
5.00V +/- 0.01V
