12147AGX408

Apem | 12000 Toggle Switch | Toggle
green-check-icon Total Stock: 10
yellow-timer-icon Factory Lead Time: 154
onlycheckmark RoHs Compliant
12000

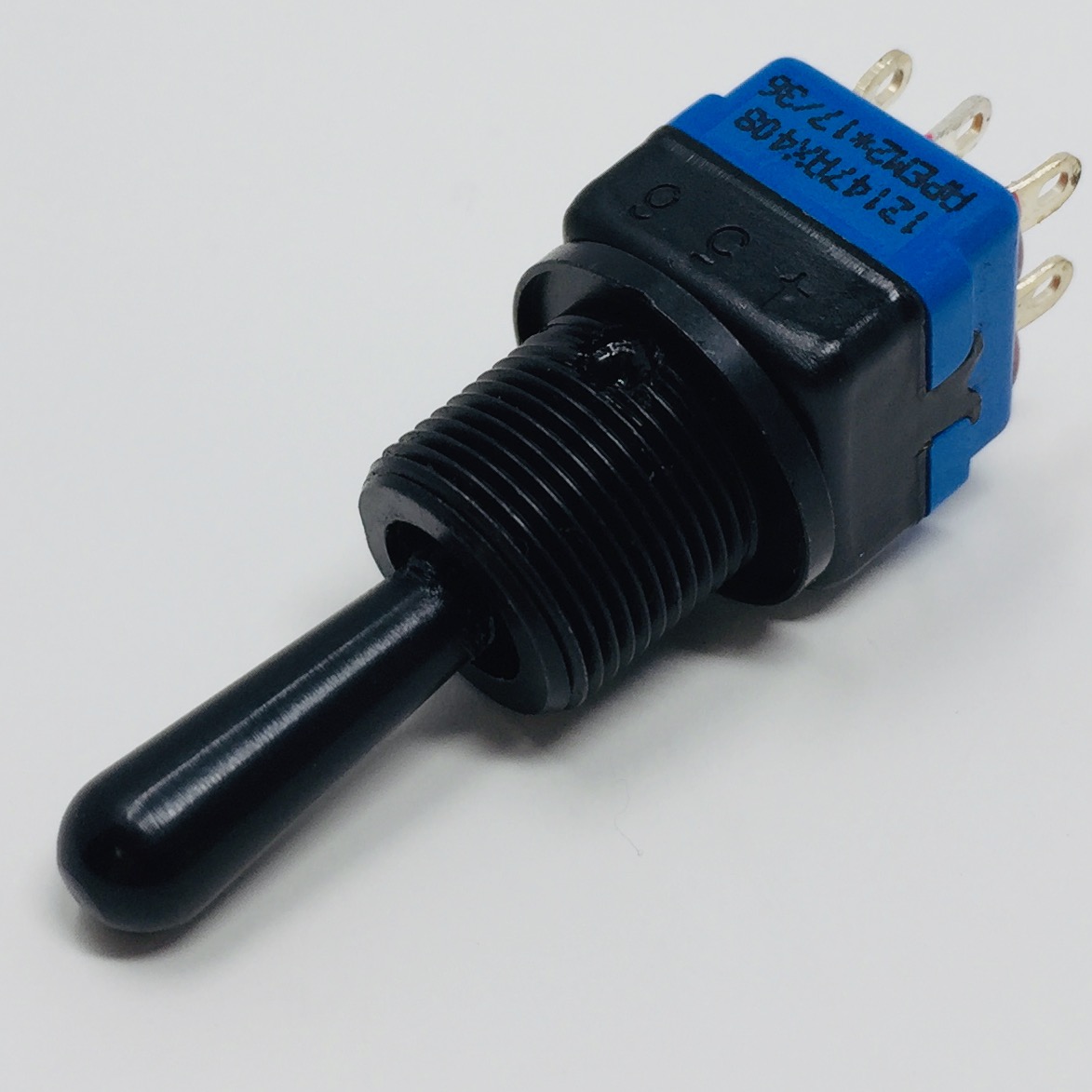

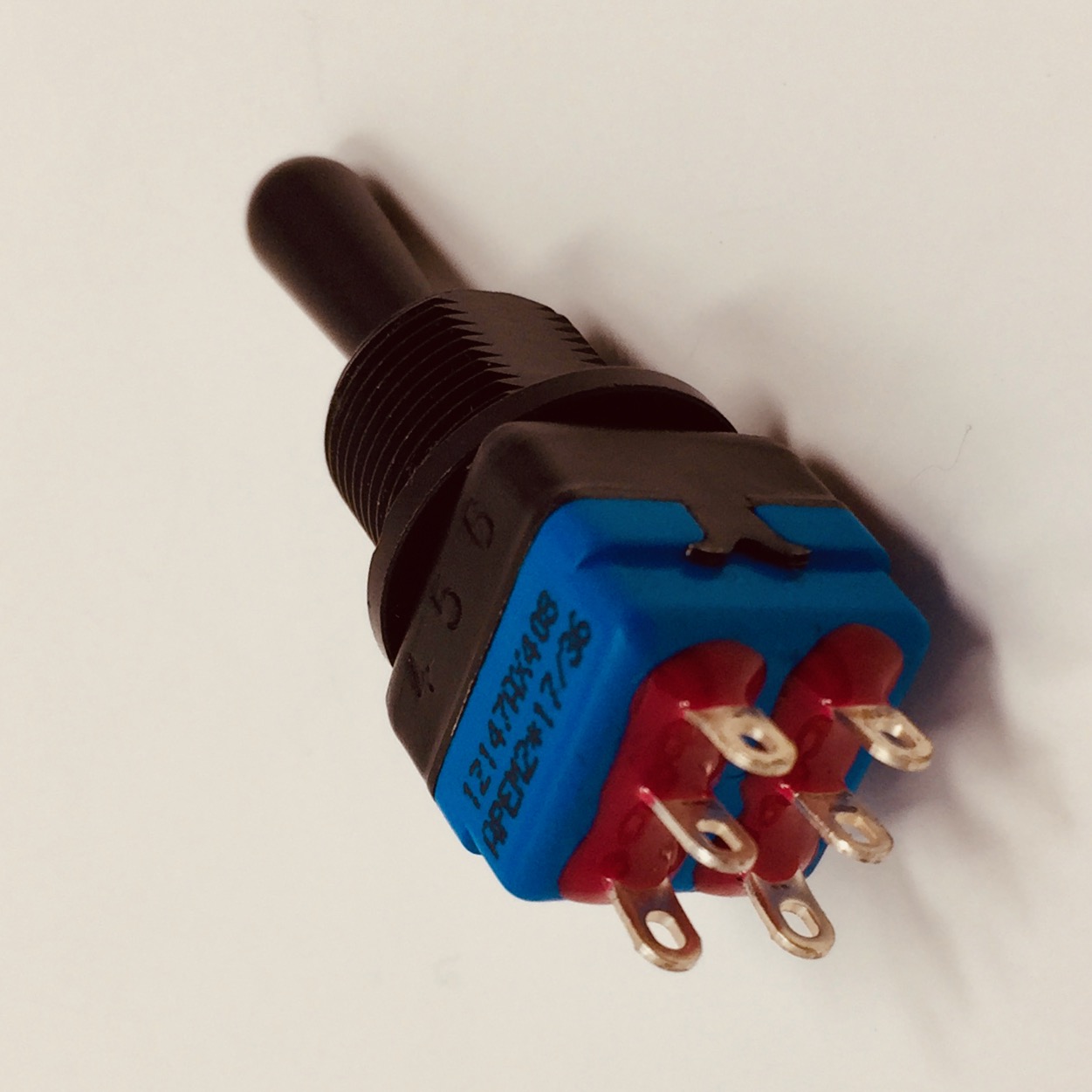

Apem 12000 Series Double pole (Mom) Off (Mom) Toggle Switch with Solder lug terminals and Silver contacts. Switch has a Black finish on Bushing, Actuator and hardware Finish.

$86.30

Min: 25  Mult: 25

Product Attributes

Terminals and bushings

Solder lug terminals

Number of poles

Double pole

Electrical functions

(Mom) Off (Mom)

Contact materials

Silver

Electrical life

50,000 Cycles

Finish

Black finish on Bushing, Actuator and hardware

Sealing

Epoky sealed Terminals

Fluorescent tip

None

Levers

Standard

Special options

Front Panel sealing with 2 orings

Contact bounce

2 ms Max

Dielectric strength Between Terminals

1.000 Vrms 50 Hz min

Initial contact resistance

10 mOhms Max

Material Actuator

brass, chrome plated

Material case

diallylphthalate (DAP)

Material Housing

brass, nickel plated

Operation Temperature

-40°C to +85°C

Standard Panel Thinkness

4.5 mm (.177) max

Torque

1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
