TW01BLK11

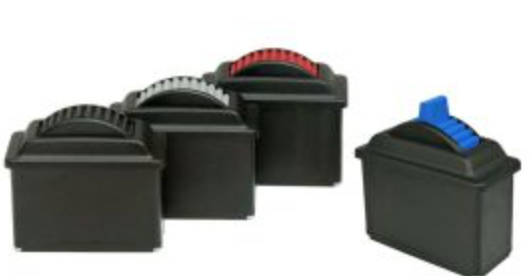

Apem | TW Thumb Joystick | Thumbwheel
yellow-timer-icon Factory Lead Time: 112
onlycheckmark RoHs Compliant
Thumbwheel With Tab Hall Effect with 0V to 5V output. Actuator is Black with Standard Tension. 2.54mm (0.100 inch) Pitch Male Header Terminals.

$205.60

Min: 5  Mult: 1

Product Attributes

Pricing Note

Price change of approx. 3.0% Effective 07/03/23

Lead Time (weeks)

16

APEM PROD GROUP

V931

Model

With Tab

Output Options Sensor 1

0V to 5V

Output Options Sensor 2

N/A

Actuator Color

Black

Spring Tension

Standard

Termination

2.54mm (0.100 inch) Pitch Male Header

Break Out Force

0.7N (0.15lbf)

Resolution

1.22mV

Return to Center Voltage (No Load)

+/- 200mV

Reverse Polarity Max.

-10V

RoHS

Yes

Sealing:

IP67

Sensor

Hall Effect

Storage Temp Celcius

-40C to +85C

Storage Temp Farenheit

-40C to +185C

Overvoltage Max.

20V

Output Impedance

2 OHMS

Operating Temp Farenheit

-40F to +185F

EMC Emissions Level

EN61000-6-3:2001

EMC Immunity Level

EN61000-4-3 (extended)

ESD

EN61000-4-2 (extended)

Expected Life

5 million cycles

Included Mounting Accessories

Steel Spring Retainer, Insertion Tool and Sealing Gasket

Lever Action

Spring Centering

Mechanical Angle of Movement

80 degrees (+/- from Center)

Operating Temp Celcius

-40C to +85C

Supply Voltage Range

5V +/- 0.01V
