GH36WW10001

Total Stock: 10

Factory Lead Time: 126

RoHs Compliant

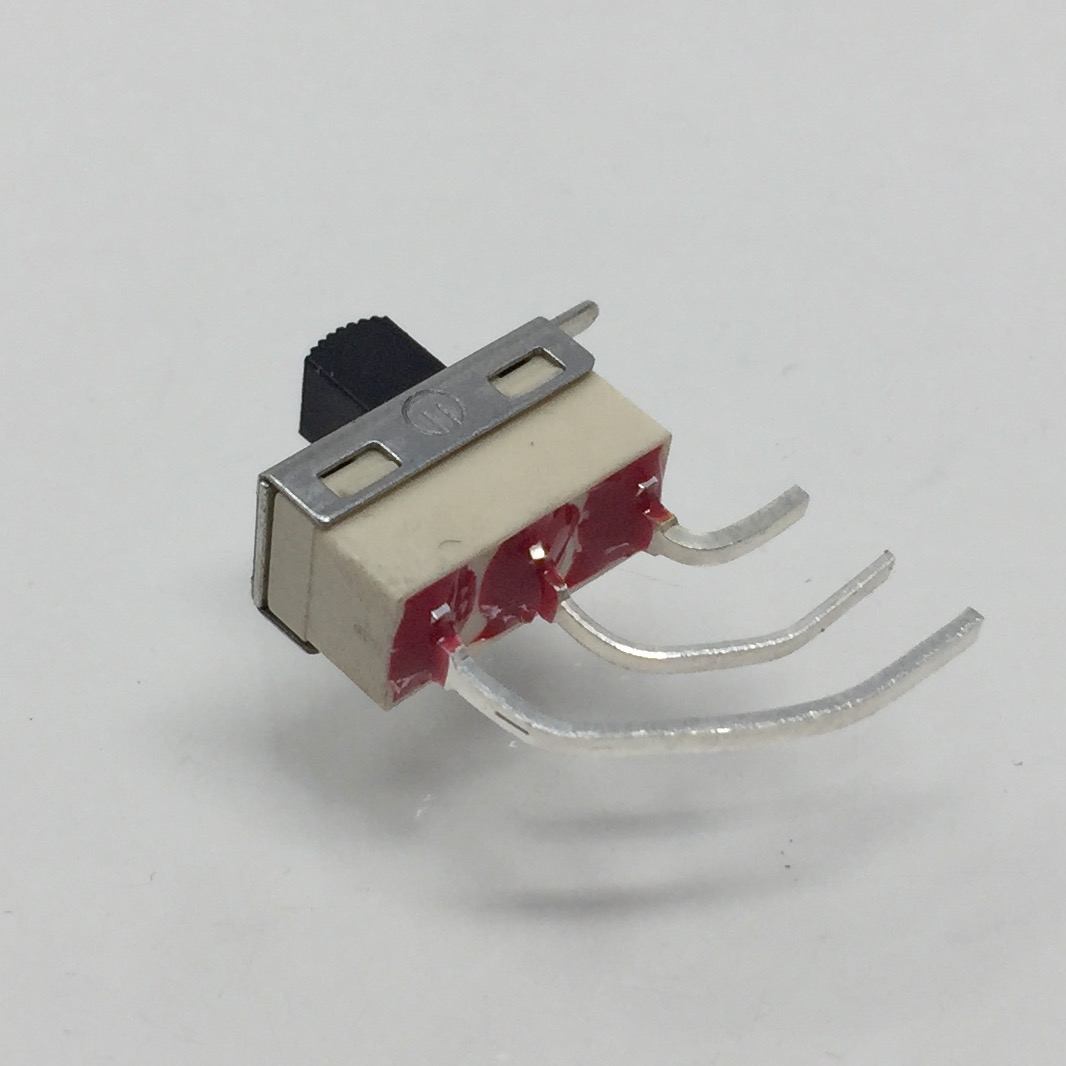

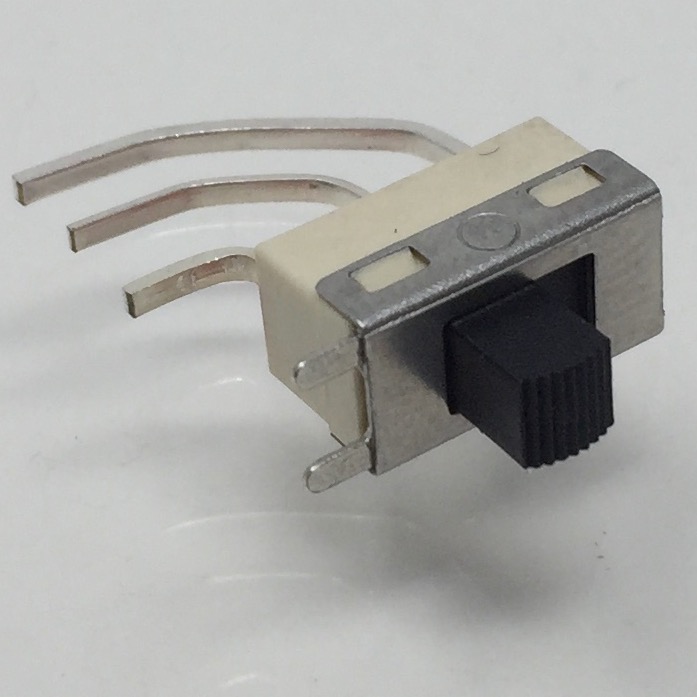

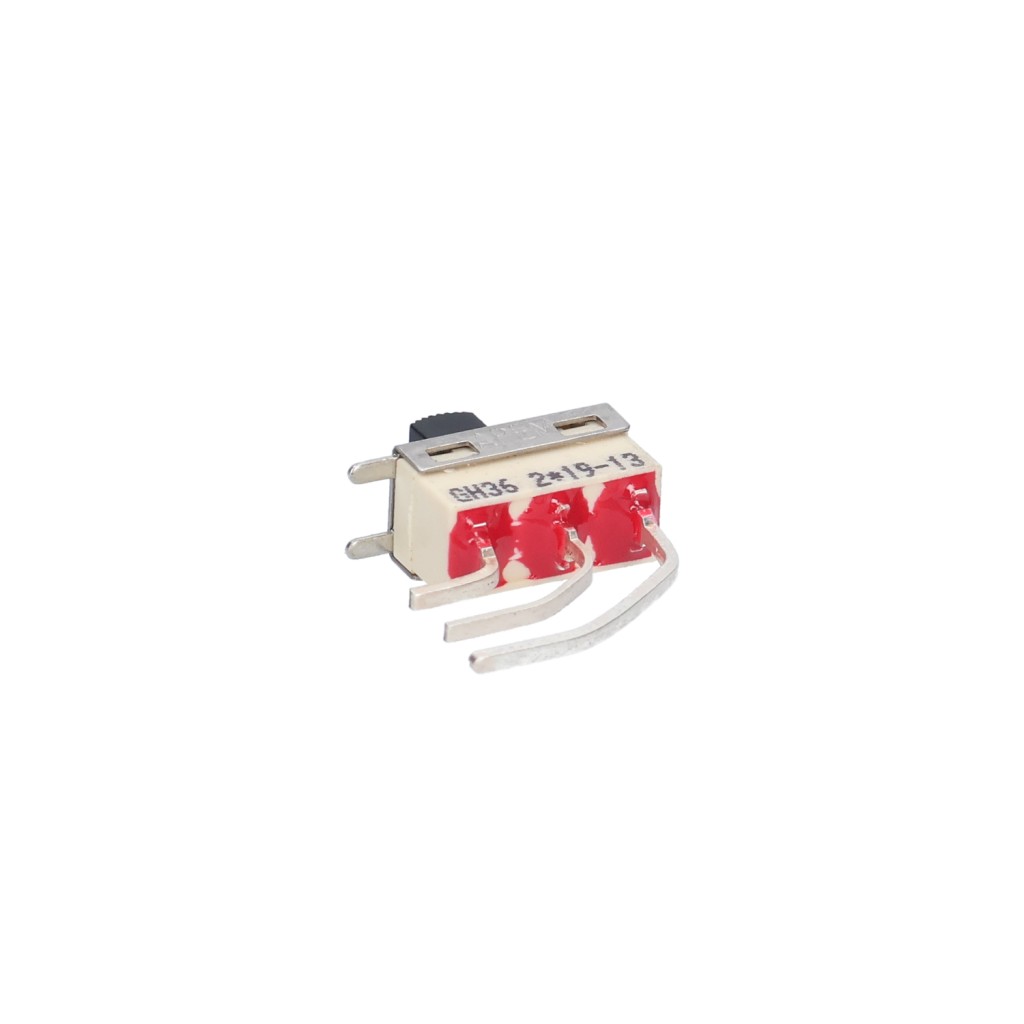

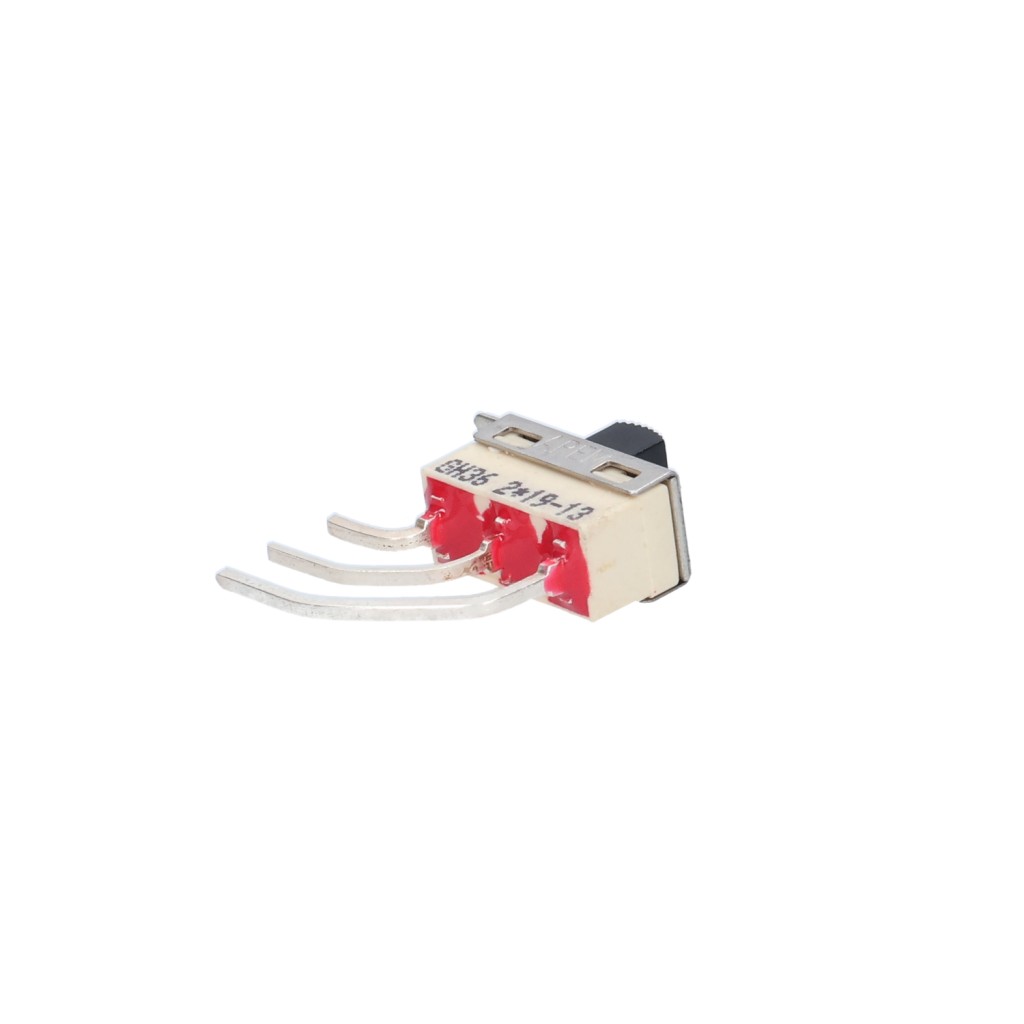

APEM Single Pole On - On Slid Switch with 5.1mm High Actuator and Right angle, vertical Terminals and Silver contacts. Standard model Epoxy sealed

Actuator Height

5.1mm

poles

Single Pole

functions

On - On

Terminals

Right angle, vertical

materials (contacts/terminals)

Silver

options 1

Standard model

options 2

Epoxy sealed

Dielectric strength

1.000 Vrms 50 Hz min

Initial contact resistance

10 mohms

Insulation resistance

1.000 Mohms Mins

Material Actuator

polyamide, glass filled

Materials Case

PES

Materials Cover

stainless steel

Materials Terminal Seal

epoxy
