GH36S000001

Total Stock: 186

Factory Lead Time: 126

RoHs Compliant

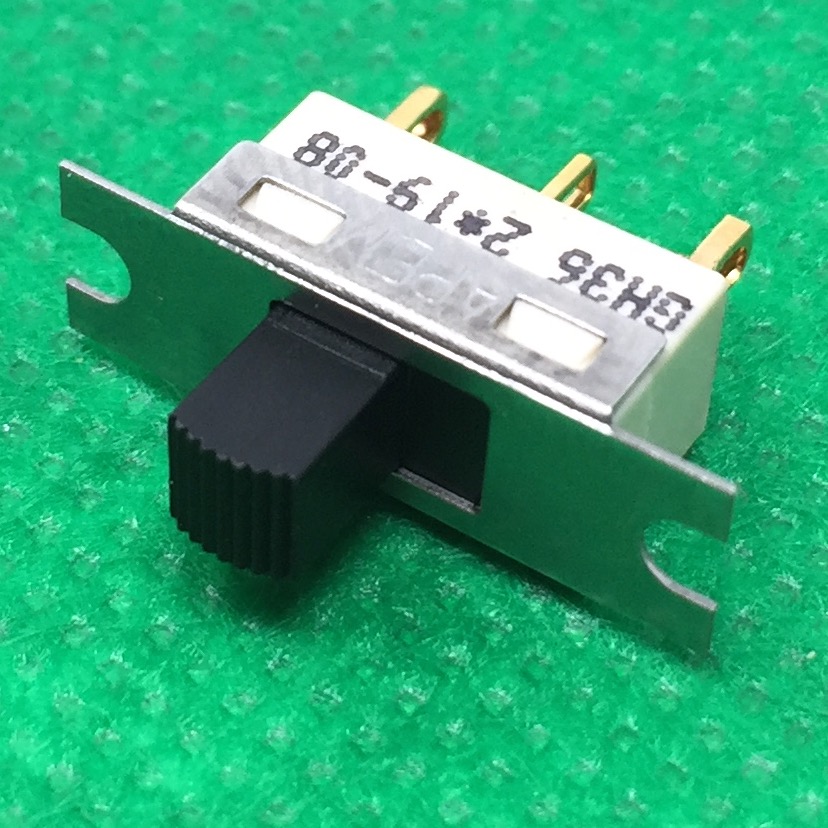

APEM Single Pole On - On Slid Switch with 5.1mm High Actuator and Solder lugs Terminals and Brass, gold plated contacts. Standard model Epoxy sealed

Actuator Height

5.1mm

poles

Single Pole

functions

On - On

Terminals

Solder lugs

materials (contacts/terminals)

Brass, gold plated

options 1

Standard model

options 2

Epoxy sealed

Dielectric strength

1.000 Vrms 50 Hz min

Initial contact resistance

10 mohms

Insulation resistance

1.000 Mohms Mins

Material Actuator

polyamide, glass filled

Materials Case

PES

Materials Cover

stainless steel

Materials Terminal Seal

epoxy
