TP33W008000

Apem | TP | Sealed Sub Mini Push
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: 98
onlycheckmark RoHs Compliant
TP

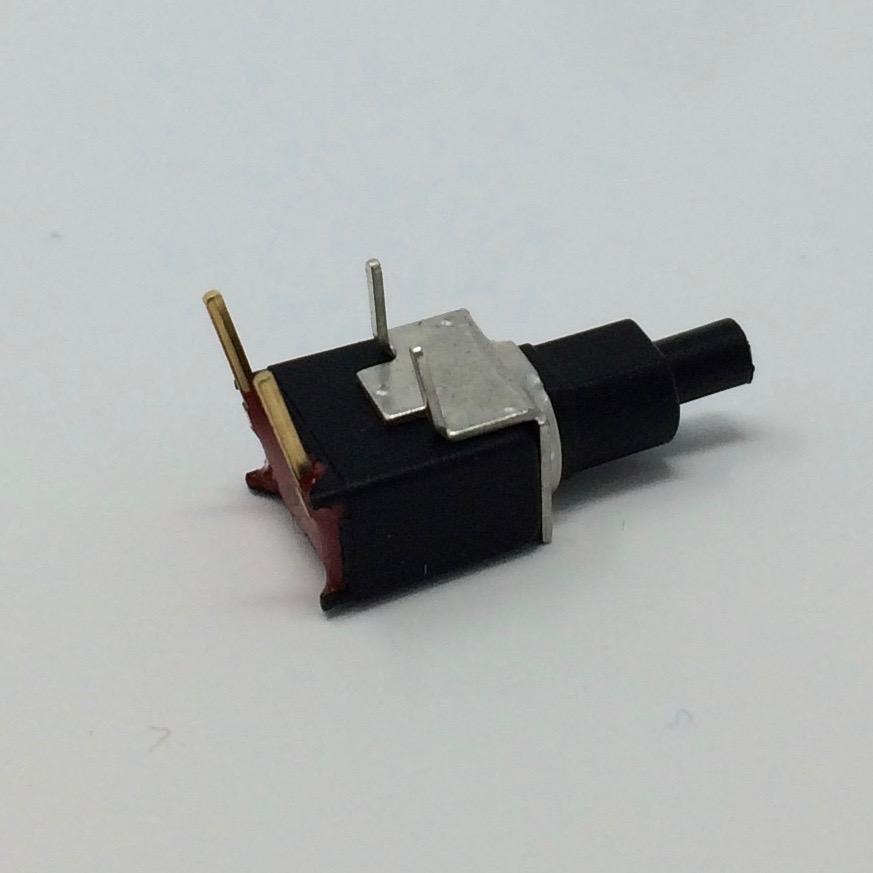

APEM Tiny Single pole Off - (MOM) Normally Open Right angle horizontal mount that are Brass, gold plated Plunger Short Standard with Black Case , and No Cap cap. Special Option No Special Requirements .

$7.80

Min: 100  Mult: 100

Product Attributes

Poles

Single pole

Function

Off - (MOM) Normally Open

Total Travel

0.8 mm (.031)

Terminals

Right angle horizontal mount

Materials

Brass, gold plated

Electrical Life full load

60.000 cycles

Max current/voltage rating

0,4VA 20V max. AC or DC

Plungers

Short Standard with Black Case

Special Options

No Special Requirements

Cap

No Cap

Cleaning

solvents or water + detergent

Terminal Seal

epoxy

Strength of Terminals

pull-out force - 10N max

Operating temperature

-30C to +85C

Moisture

21 days 95 % (NFC 20-603 - IEC 68-2-3)

Minimum load

10mA 50mV - 10μA 5VDC

Material Case

PBT

Material Actuator

polyamide, glass filled

Insulation resistance

1.000 MΩ min. at 500VDC

Dielectric Strength (Frame to Terminals)

1.000 Vrms 50 Hz min.

Dielectric Strength (Between Terminals)

500 Vrms 50 Hz min. between terminals

Contact resistance

50 mΩ max

Wave soldering

260C - 5Sec
