Price List
DA10
Total Stock: 66
Factory Lead Time: TBD
RoHs Compliant

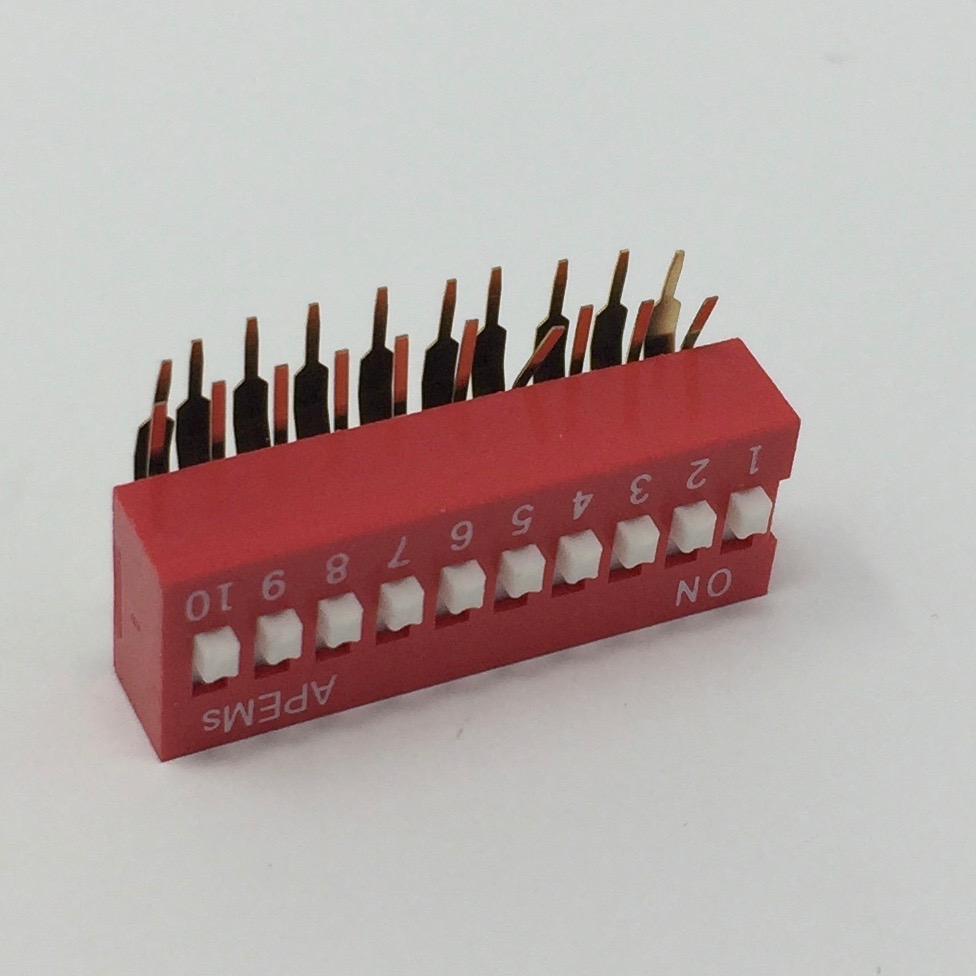

APEM 10 Position Right Angle Dip Switch
Hawk Electronics
Total Stock: 66
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Model
Right Angle
Operating Force
10N
Travel
2 mm
Positions
10
Tape Sealed
Series Attributes
Dielectric Strength
500VDC
Terminal Sealing
Epoxy
Rating
25mA 24VDC
Materials Terminals
Gold over Nickel plated phosphor Bronze
Materials Cover
UL94-V0 glass fiber filled PBT Red
Materials Case
UL94-V0 glass fiber filled PBT Black
Materials Actuator
UL94-V0 glass fiber filled PBT White
Insulation resistance
100MOhms at 500VDC
Initial contact Resistance
50mOhms Max
Hand Soldering Temp
320C Max for 2 Sec.
Function
SPST
Electrical Life
2000 Cycles Min
Wave Solding
260C max for 5 sec
