IXR3S12M

Apem | IX | Pushbutton
yellow-timer-icon Factory Lead Time: 210
onlycheckmark RoHs Compliant
IX

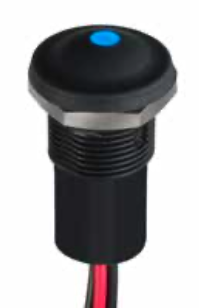

APEM 12 MM Round elastomeric Normally open Push Button with Solder lugs Terminals and Black Actuator with Non-illuminated LEDs and Silver Contacts

$25.40

Min: 25  Mult: 25

Product Attributes

ACTUATOR SHAPES

Round elastomeric

ELECTRICAL FUNCTION

Normally open

TERMINALS

Solder lugs

CONTACTS

Silver

Max current/voltage

2 A 28 VDC, 100,000 cycles

ACTUATOR COLORS

Black

LED COLORS

Non-illuminated

MARKING STYLE

No Markings

MARKING

No Marking

Dielectric strengt

1500 Vrms

Thomas

Asking Questions

Storage Temp

-40 to +85 C

Shock resistance

100 g according to IEC 512-4, test 6c

Salt spray

IEC 512-6, test 11f

Panel Thinkness

1.5 to 6 mm

Operating Force

7 N ± 2 N

Mechanical Life

1,000,000 cycles

Insul. Resistance

1 GΩ min. at 500 VDC

Initial Resistance

100 mΩ max

Front Panel Seal

IP67 according to IEC 60529

Total Travel

2 mm (.078) ± 0.3 mm
