IHLR015XF2

Apem | IHL | Pushbutton
green-check-icon Total Stock: 5
yellow-timer-icon Factory Lead Time: 224
onlycheckmark RoHs Compliant
IHL

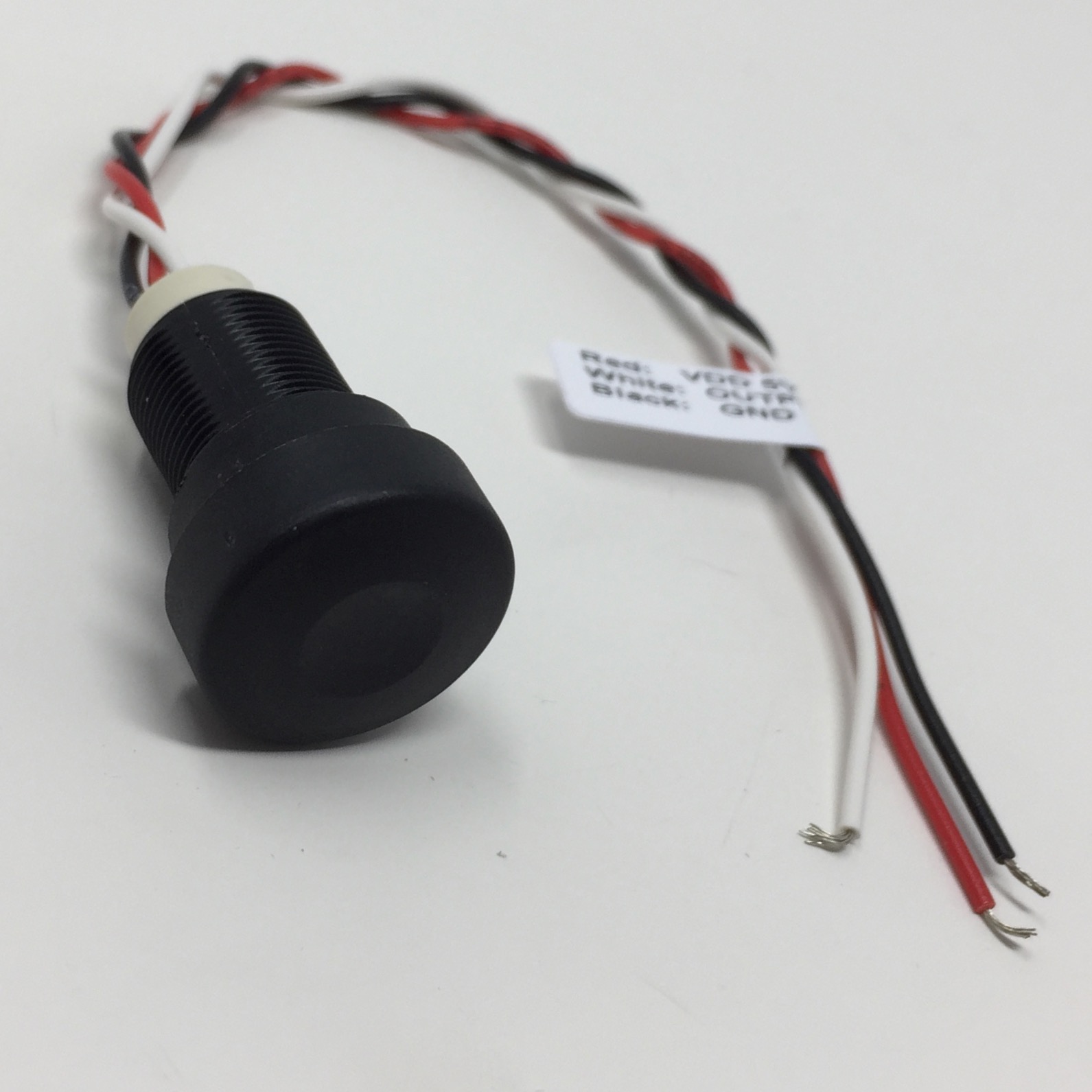

12 mm Round Hall Effect Switch with 0.5 to 4.5 V output and Standard Operating Force Regulator is None . Button color of Black with Flying Leads Terminals

$98.40

Min: 25  Mult: 25

Product Attributes

Actuator Shape

Round

Output Voltage

0.5 to 4.5 V

Operating Force

Standard

Regulator

None

Terminals

Flying Leads

Actuator Colors

Black

Actuator Material

ABS

Torque

1 Nm max applied to nut

Switch Function

Proportional Linear Ouput

Supply Voltage

4.5VDC to 5.5VDC without Regulator, 6.5VDC to 24VDC with 5V Regulator

Supply Current

9mA max

Sealing

Front Panel, IP67 according to EIC 60529

Packaging unit

25 pieces

Operating Temp

-40C to + 85C

Multi-wire lead

AWG26, 150 mm

Minimum Panel Thickness

1.5 mm (0.059)

Mechanical Life

5 million cycles

Maximum Panel Thickness

10mm (0.393)

Max Output Current

1.25mA

Hardware Supplied

1 hex nut 14mm (.551) across flats and 1 O-ring. Hex nut part number-U166

Electrical Function

Single

Case Material

PBT, UL94-V0

Bushing Material

Polyamide 6/6

Total Travel

4 mm (.160) +/- 0.3 mm
