5236AB

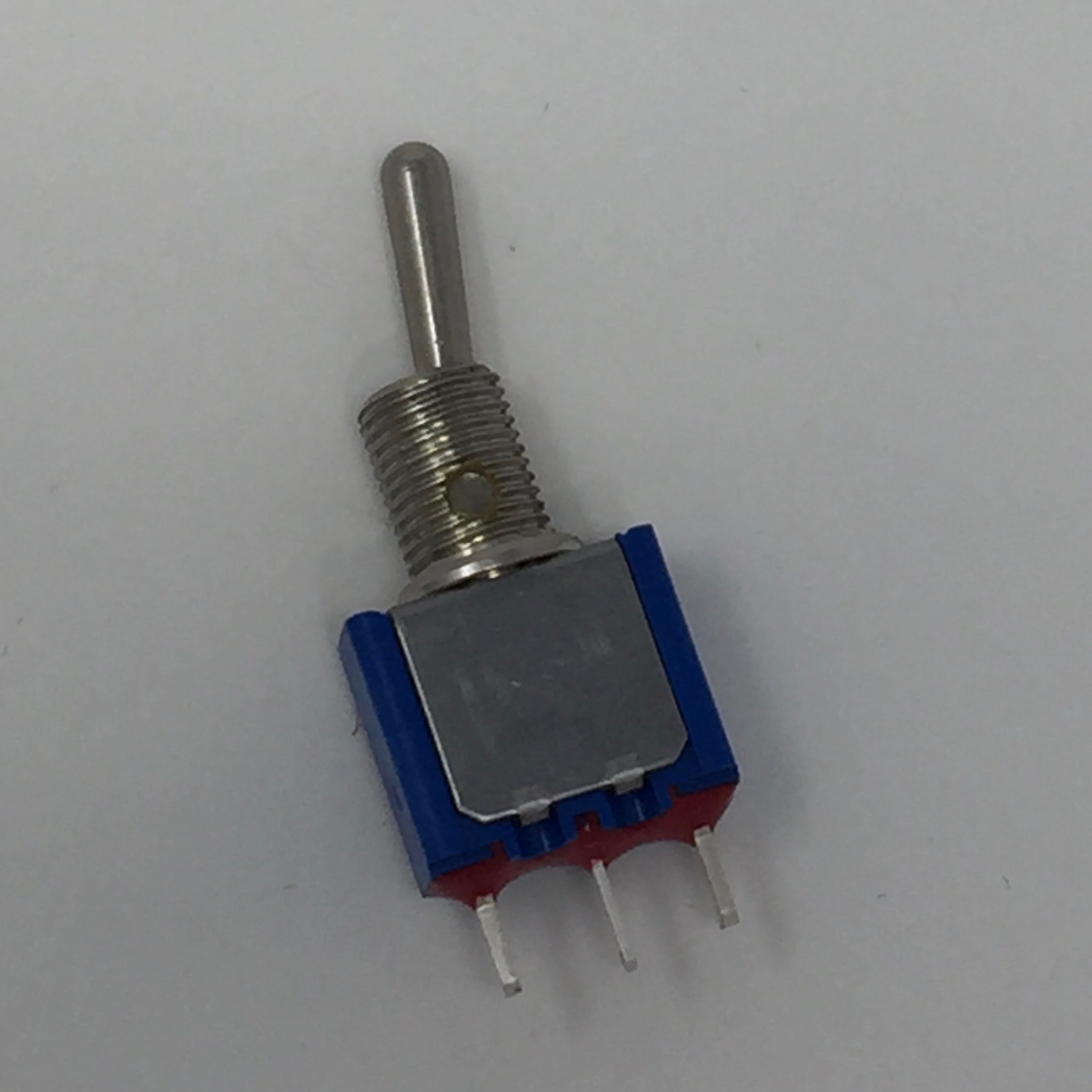

Apem | 5000 | Mini Toggle Switch
green-check-icon Total Stock: 597
yellow-timer-icon Factory Lead Time: 98
onlycheckmark RoHs Compliant
5000
Single Pole Toggle Switch with Solder Lugs or Straight PC Terminals Standard (.413) Threaded or (.531) Plain Actuator Straight PC Terminal(.185) spacing Right angle quick connect or wire wrap Threaded Bushing

$7.10

Min: 50  Mult: 50

Product Attributes

Terminals & Bushing

Straight PC Terminal(.185) spacing Right angle quick connect or wire wrap Threaded Bushing

Number of Poles

Single Pole

Electrical Life Full Load

50,000 Cycles

Electrical Function

ON - On

Terminals

Solder Lugs or Straight PC

F4 Wiring

Not Applicable (unless Function 4)

F4 Action

Not Applicable (unless Function 4)

Contact Materials

Silver

Electrical Rating

4A 30VDC

Finish

Bright Chrome

Sealing

Epoxy Sealed Terminals

Fluorescent Tip

None

Lever

Standard (.413) Threaded or (.531) Plain

Locking Option

No Locking

Special Option

No Special Options

Approvals

No Approvals required

Cap/Paddle

Replace with Value Sec-15 Pos-1

Cap/Paddle Color

N/A

Bushing Material

nickel over brass

Case Materials

diallylphthalate (DAP)

Init Contact Res

10 mOhms max.

Mechanical Life

100,000 Cycles

Operating Temp

-40C to +85C

Terminal Seal

Epoxy
