Price List
DP10
Total Stock: 58
Factory Lead Time: TBD
RoHs Compliant

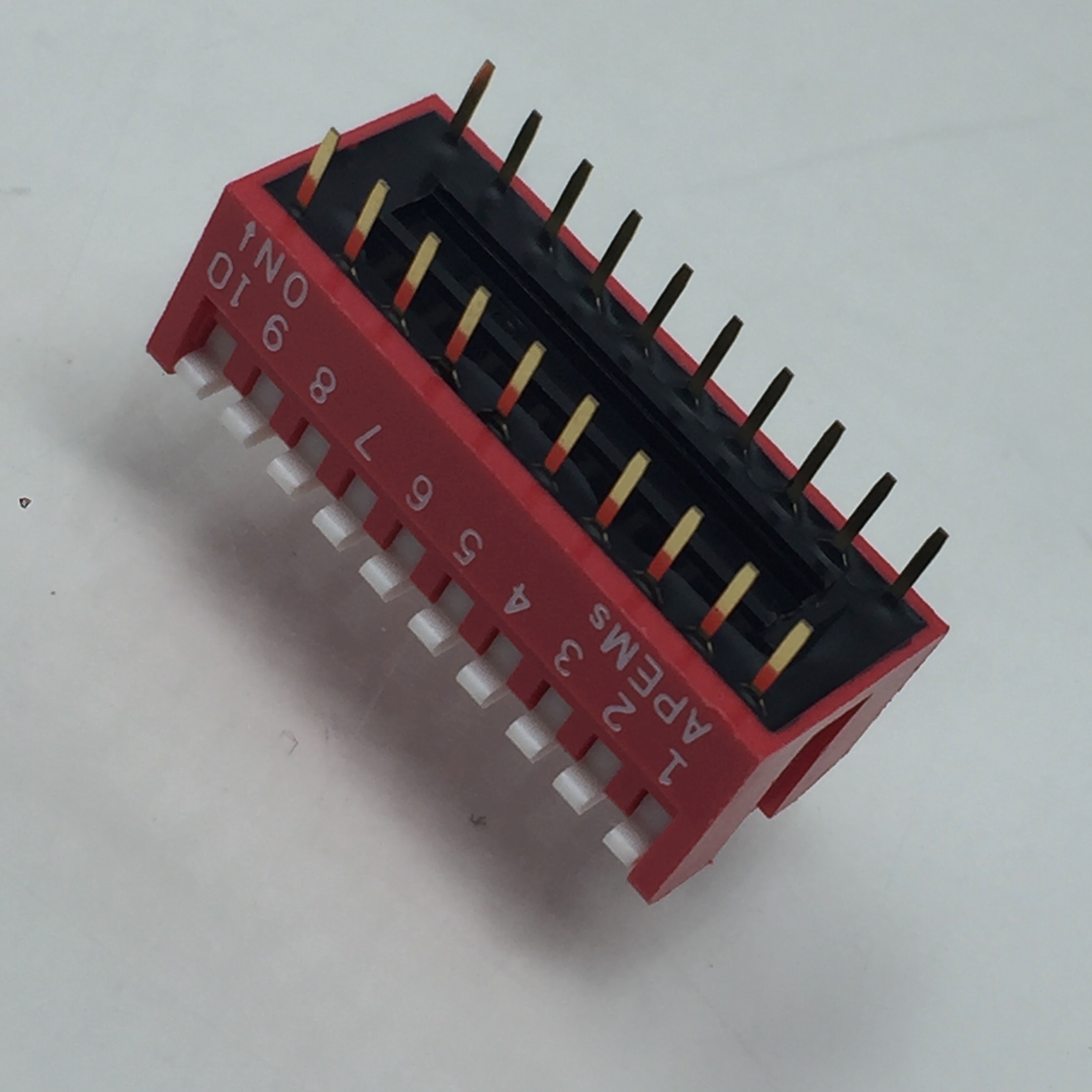

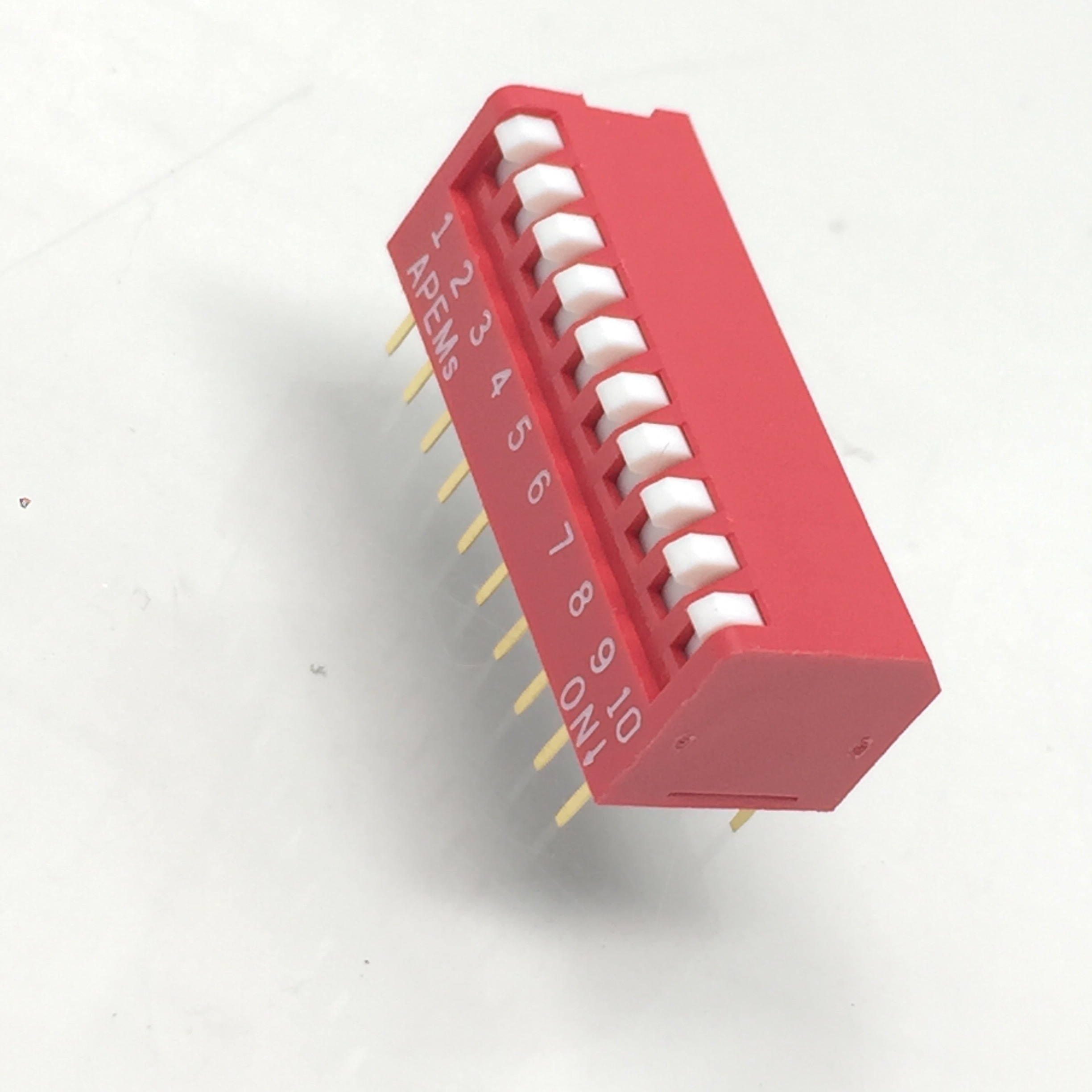

APEM 10 Position Piano Dip Short Actuator Dip Switch (Prices Valid while supplies last)
Hawk Electronics
Total Stock: 58
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Pricing Notes
Prices Valid while supplies last
Model
Piano Dip Short Actuator
Operating Force
4N
Travel
30 Deg
Positions
10
Tape Sealed
Series Attributes
Dielectric Strength
500VDC
Terminal Sealing
Epoxy
Rating
25mA 24VDC
Materials Terminals
Gold over Nickel plated phosphor Bronze
Materials Cover
UL94-V0 glass fiber filled PBT Red
Materials Case
UL94-V0 glass fiber filled PBT Black
Materials Actuator
UL94-V0 glass fiber filled PBT White
Insulation resistance
100MOhms at 500VDC
Initial contact Resistance
50mOhms Max
Hand Soldering Temp
320C Max for 2 Sec.
Function
SPST
Electrical Life
2000 Cycles Min
Wave Solding
260C max for 5 sec
