AS39P0000

Apem | AS | Panel Mount Rocker
green-check-icon Total Stock: 51
yellow-timer-icon Factory Lead Time: 98
onlycheckmark RoHs Compliant
AS

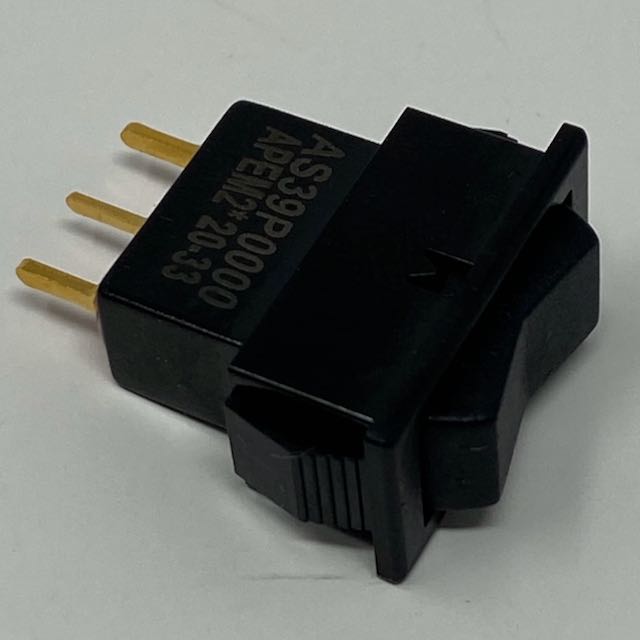

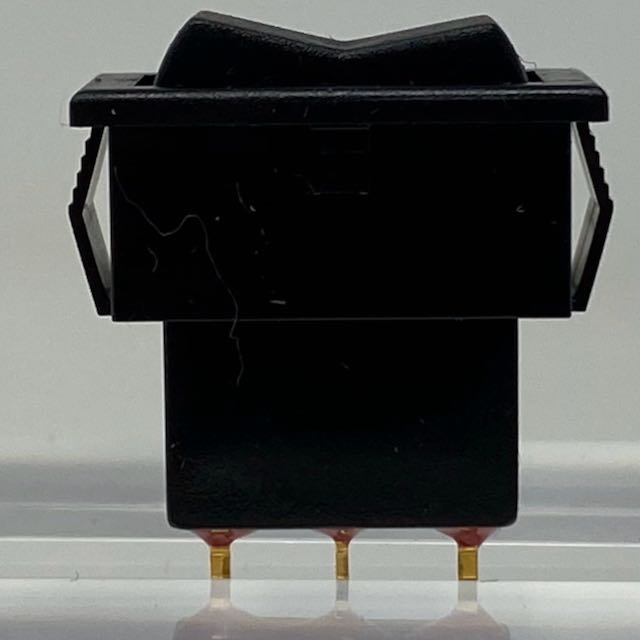

Snap-in On-Off-On Rocker Switch Brass, Gold Plated PC Thru-Hole Terminals and Black Actuator

$7.10

Min: 50  Mult: 50

Product Attributes

Switch Function

On-Off-On

Terminal Type

PC Thru-Hole

Contact Materials

Brass, Gold Plated

Max Current Rating with Resistive Load

0.4 VA 20V Ac or DC

Actuator Color

Black

Other Options

None

Actuator Material

Polyamide

Seal

O-ring between actuator and bushing

Panel Thickness

1 (.039) to 3 mm (.118) max

Packaging unit

50 pieces

Operating Temp

-40C to + 85C

Insulation Resistance

10,000 Mega Ohms Minimum

Initial Contact Resistance

10 milli Ohms max

Electrical Life

50,000 cycles

Dielectric Strength between terminals and Panel

4,000 Vrms 50Hz min

Dielectric Strength between terminals

1,000 Vrms 50Hz min

Case Material

PES

Terminal Seal

Epoxy
