AS36S0100
Total Stock: 20
Factory Lead Time: 98
RoHs Compliant

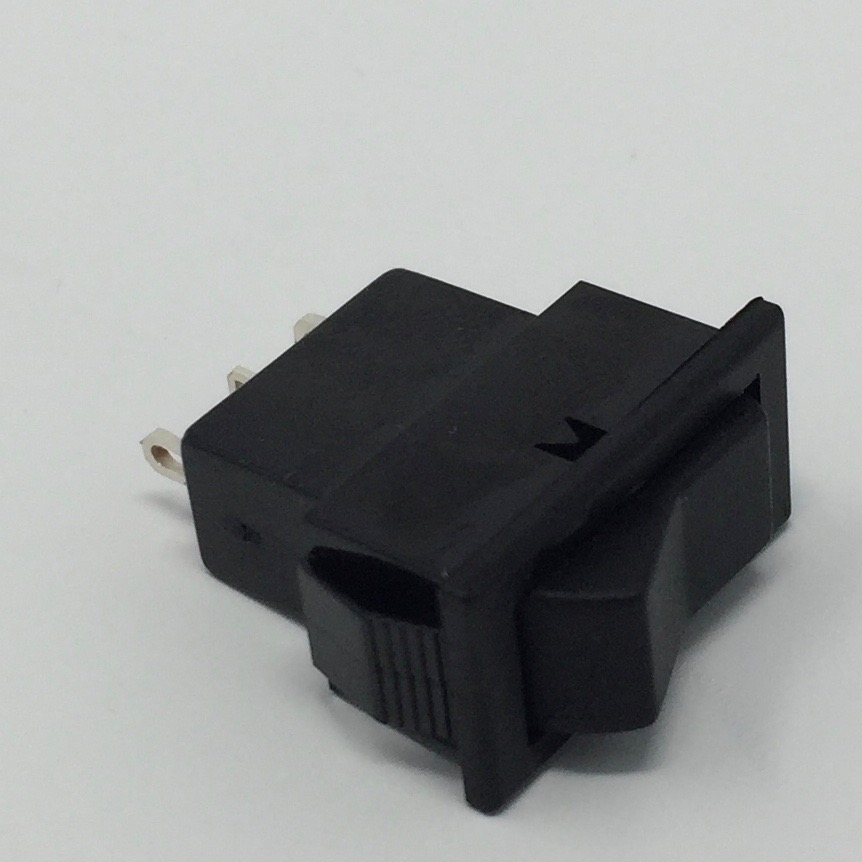

ASSnap-in On-None-On Rocker Switch Silver Solder Lug Terminals and Black Actuator
Hawk Electronics
Total Stock: 20
Factory Lead Time: 98
RoHs Compliant
Product Attributes
Switch Function
On-None-On
Terminal Type
Solder Lug
Contact Materials
Silver
Max Current Rating with Resistive Load
4A 30VDC
Actuator Color
Black
Other Options
None
Series Attributes
Actuator Material
Polyamide
Seal
O-ring between actuator and bushing
Panel Thickness
1 (.039) to 3 mm (.118) max
Packaging unit
50 pieces
Operating Temp
-40C to + 85C
Insulation Resistance
10,000 Mega Ohms Minimum
Initial Contact Resistance
10 milli Ohms max
Electrical Life
50,000 cycles
Dielectric Strength between terminals and Panel
4,000 Vrms 50Hz min
Dielectric Strength between terminals
1,000 Vrms 50Hz min
Case Material
PES
Terminal Seal
Epoxy
