Price List
903-505J-51S1
Factory Lead Time: 40
RoHs Compliant

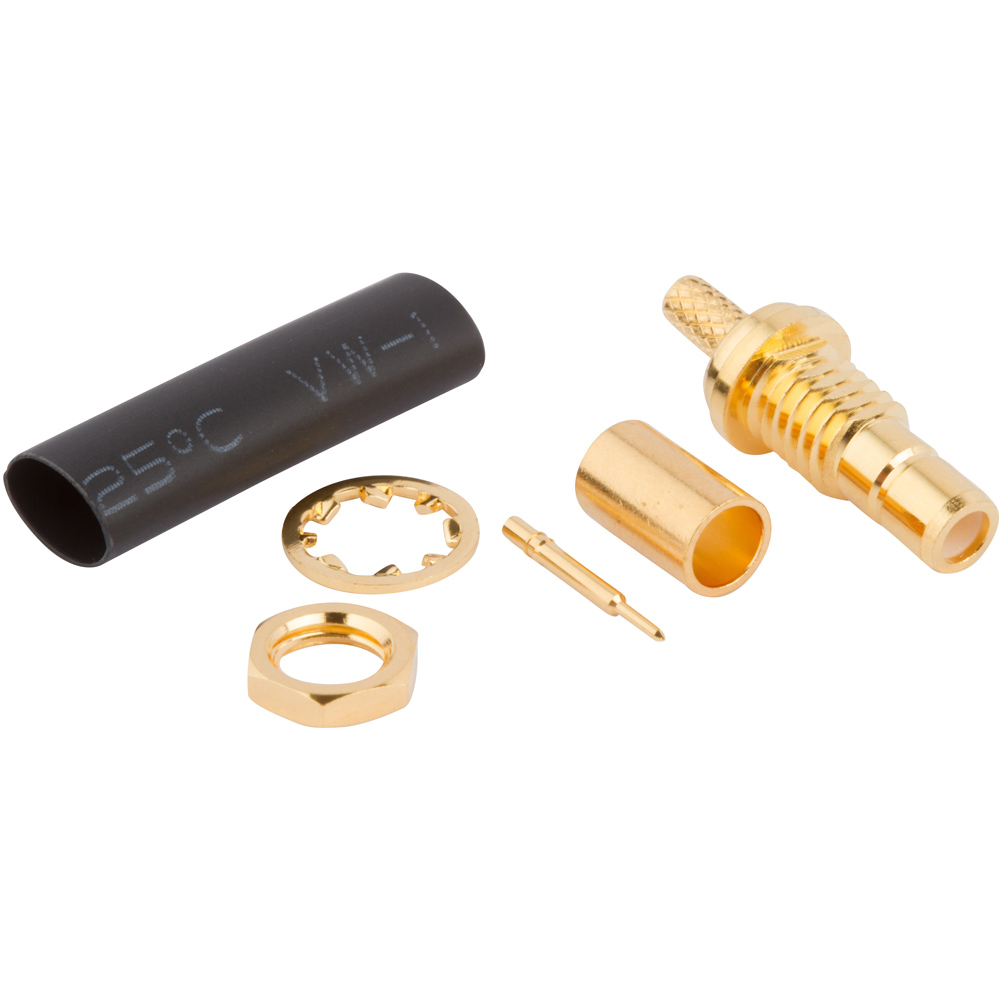

RF Connector SMB Straight Crimp Jack for RG-316 Double Braided Bulkhead 50 Ohm
Hawk Electronics
Factory Lead Time: 40
RoHs Compliant
Product Attributes
BRAND
AMPHENOL RF
Product Page
Gender
Jack
Mounting
Bulkhead - Rear Mount
Orientation
Straight
Termination Style
Cable - Crimp
Operating Temperature
-65C to +165C
Mating Cycles
500
Unit wt
3.5
Impedance
50
Coupling Mechanism
Slide-on
Contact Termination
Solder
Cable Group
B2
Cable Type
M17/152-RD316 RG-179 DB RG-188 DB RG-316 DB
Body Finish
Gold
Body Material
Brass
Contact Finish
Gold
Contact Material
Brass
Max Freq
4
Insulator Material
PTFE
Series Attributes
Not available at this time.
