Price List
082-67
Factory Lead Time: 40
RoHs Compliant

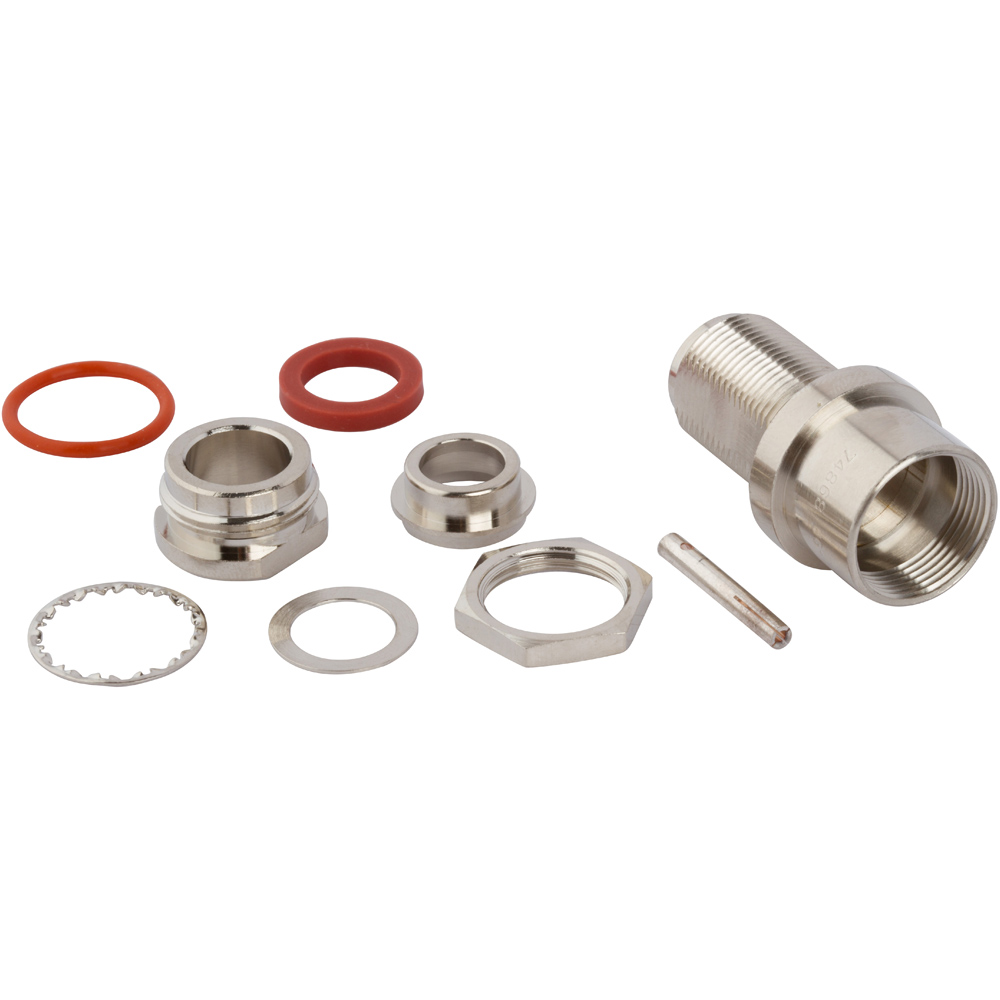

RF Connector UG-160A/U N-Type Straight Clamp Jack for RG-8 Bulkhead 50 Ohm
Hawk Electronics
Factory Lead Time: 40
RoHs Compliant
Product Attributes
BRAND
AMPHENOL RF
Product Page
Mounting
Bulkhead - Rear Mount
Termination Style
Cable - Clamp
Orientation
Straight
Gender
Jack
Mating Cycles
500
Operating Temperature
-65C to +165C
Impedance
50
Coupling Mechanism
Threaded
Contact Termination
Solder
Cable Type
RG-213 RG-214 RG-225 RG-302 RG-393 RG-8 RG-87 RG-8A RG-9 RG-9A RG-9B
Cable Group
G4
Body Material
Brass
Body Finish
Nickel
Max Freq
11
Thread Direction
Standard
Contact Material
Beryllium Copper
Contact Finish
Silver
MIL Qualified
Yes
MIL Part Number
UG-160A/U
Insulator Material
PTFE
Series Attributes
Not available at this time.
