082-62
Factory Lead Time: 91
RoHs Compliant

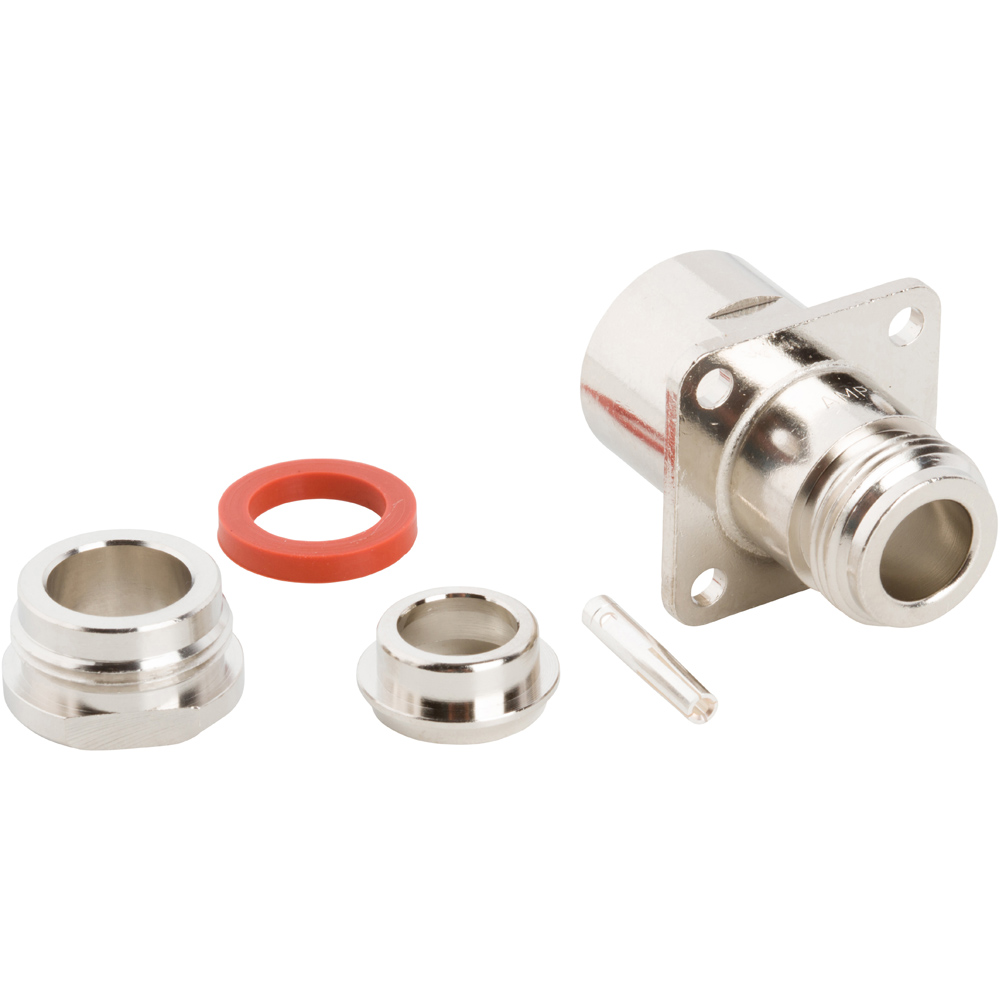

UG-22B/U N-Type Panel Mount 4-Hole Flange Jack RG-8X Times LMR-240 Optimized 50 Ohm
Hawk Electronics
Factory Lead Time: 91
RoHs Compliant
Product Attributes
BRAND
AMPHENOL RF
Product Page
Product Category
connectors
Package Type
Individual Bag
Taxonomy 1
Connectors > N-Type Connectors
Gender
Jack
Alias
UG-22B/U
Mounting
4-Hole Flange
Orientation
Straight
Termination Style
Cable - Clamp
PACKING
Individual Bag
Operating Temperature
-65C to +165C
Mating Cycles
500
Lead Time Note
12 to 14 Weeks
Unit wt
55.52
Impedance
50
Cable Group
G2
Coupling Mechanism
Threaded
Contact Termination
Solder
Cable Type
Belden 9258 LMR-240
UNITS PER PACKAGE
1
Packaging Type Note
Individual Bag
Body Finish
Nickel
Unit Weight (Grams)
58.059
Body Material
Brass
Part Status
Active
Thread Direction
Standard
Military Reference
UG-22B/U
Contact Finish
Silver
Contact Material
Beryllium Copper
Leadtime Note
7-9 Weeks
Max Freq
11
Weight-Grams
58.06
MFG Product Category
Connectors
MFG Product Series
N-Type
Insulator Material
PTFE
Grams
58.059
MIL Qualified
Yes
MIL Part Number
UG-22B/U
Series Attributes
Not available at this time.
