082-209
Factory Lead Time: 91
RoHs Compliant

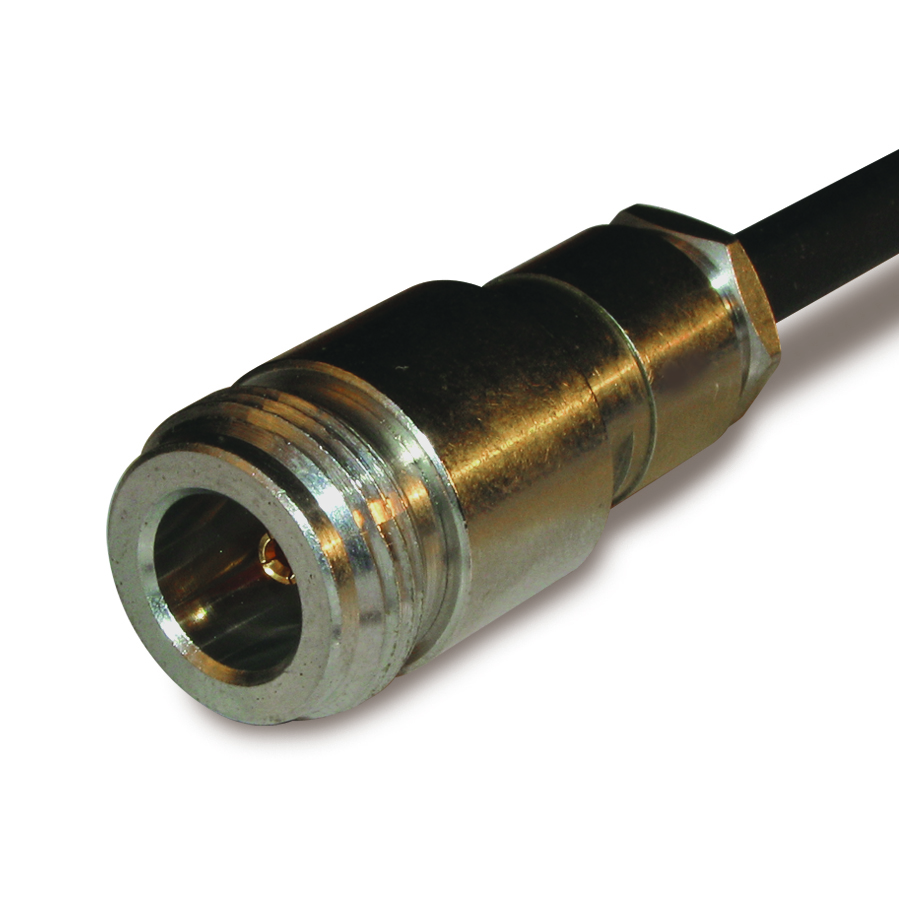

RF Connector UG-23D/U N Type Straight Clamp Jack for RG-8 RG-213 RG-225 50 Ohm
Hawk Electronics
Factory Lead Time: 91
RoHs Compliant
Product Attributes
BRAND
AMPHENOL RF
Product Page
Product Category
connectors
Taxonomy 1
Connectors > N-Type Connectors
Unit Weight (Grams)
48.08
Orientation
Straight
Gender
Jack
Termination Style
Cable - Clamp
Coupling Mechanism
Threaded
Mating Cycles
500
Lead Time Note
12 to 14 Weeks
Cable Group
G4
Impedance
50
Cable Type
RG-213 RG-214 RG-225 RG-302 RG-393 RG-8 RG-87 RG-8A RG-9 RG-9A RG-9B
Contact Termination
Solder
Operating Temperature
-65C to +165C
Packaging Type Note
Individual Bag
Body Material
Brass
Body Finish
Nickel
Max Freq
18
Thread Direction
Standard
Contact Finish
Silver
Leadtime Note
7-9 Weeks
Part Status
Active
Contact Material
Beryllium Copper
Grams
48.080
Insulator Material
PTFE
MFG Product Category
Connectors
MIL Qualified
Yes
MIL Part Number
UG-23D/U
MFG Product Series
N-Type
Series Attributes
Not available at this time.
