082-805

Amphenol-RF | HN-Type | RF HN-Type Connectors
yellow-timer-icon Factory Lead Time: 91
onlycheckmark RoHs Compliant

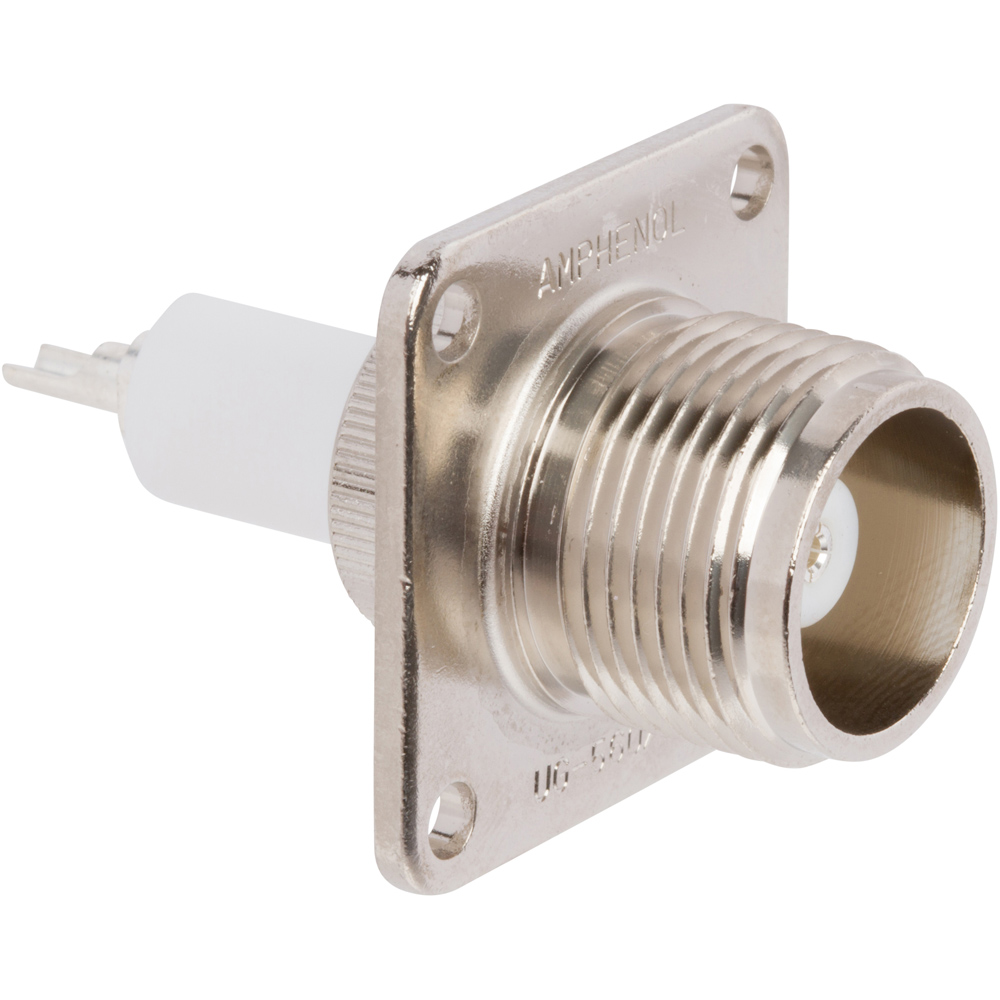

Amphenol RF - UG-560/U HN-Type Panel Mount Jack 4-Hole Flange Solder Cup 50 Ohm Part Number: 082-805 -->> Connectors > HN-Type Connectors

$56.40

Min: 25  Mult: 1

Product Attributes

Product Page

Click Here

BRAND

AMPHENOL RF



MFG SKU

082-805

STD or Custom

Custom Product NCNR

Alias

UG-560/U

Mounting

4-Hole Flange

Orientation

Straight

Gender

Jack

Termination Style

Solder Cup

Mating Cycles

500

Operating Temperature

-65C to +165C

PACKING

Individual Bag

Unit wt

37.59

Lead Time Note

12 to 14 Weeks

Contact Termination

Solder

Impedance

50

Factory Lead Time

12 to 14 Weeks

Alternate Part Number

UG-560/U

Coupling Mechanism

Threaded

Pkg Size

1

Package Type

Individual Bag

Packaging Type Note

Tray

UNITS PER PACKAGE

1

Body Finish

Nickel

Body Material

Brass

Product Category

connectors

Contact Finish

Silver

Contact Material

Beryllium Copper

Part Status

Active

Thread Direction

Standard

Weight-Grams

42.18

Leadtime Note

7-9 Weeks

Military Reference

UG-560/U

Max Freq

4

Grams

42.184

Unit Weight (Grams)

42.184

MFG Product Category

Connectors

MFG Product Series

HN-Type

Taxonomy 1

Connectors > HN-Type Connectors

Ext. Dielectric length

0.359

MIL Part Number

UG-560/U

MIL Qualified

Yes

Ext. Dielectric

Yes

Insulator Material

PTFE
