CAFL4U

Total Stock: 445

Factory Lead Time: TBD

RoHs Compliant

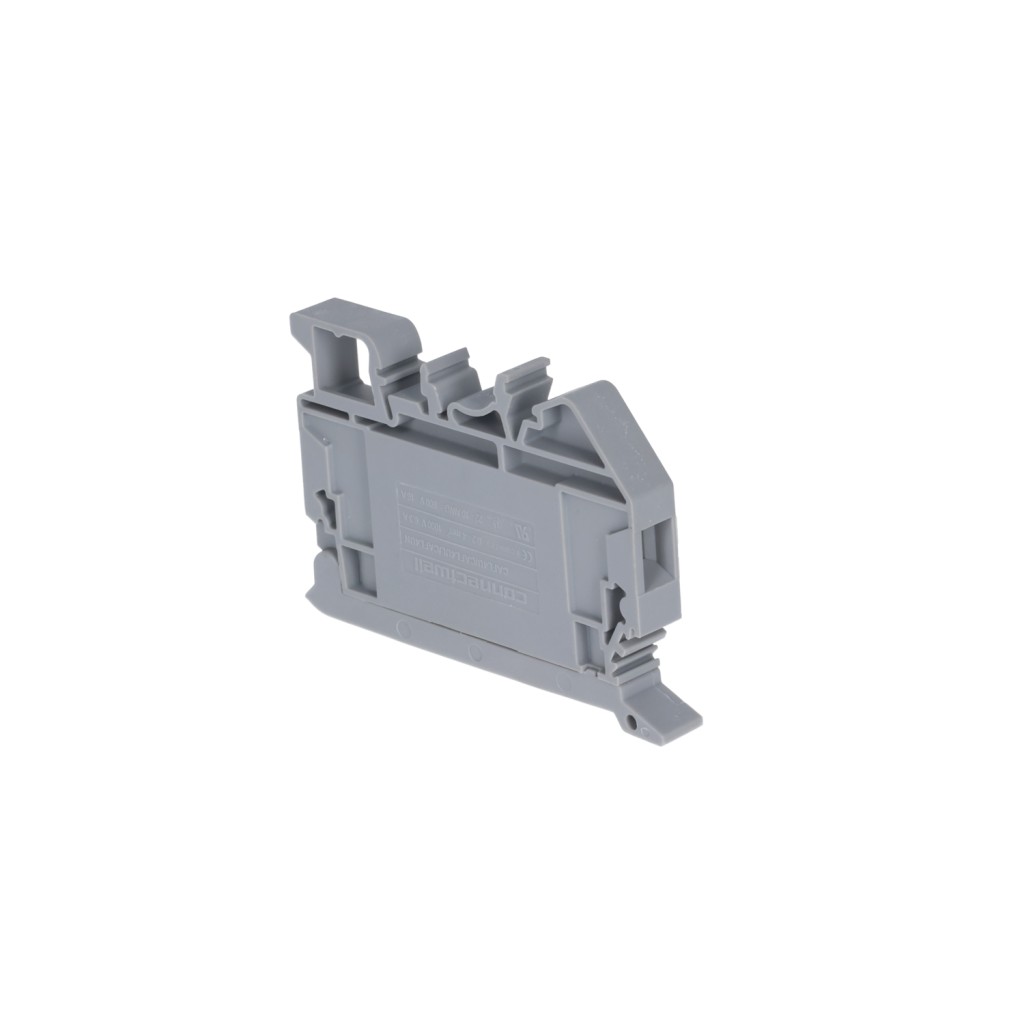

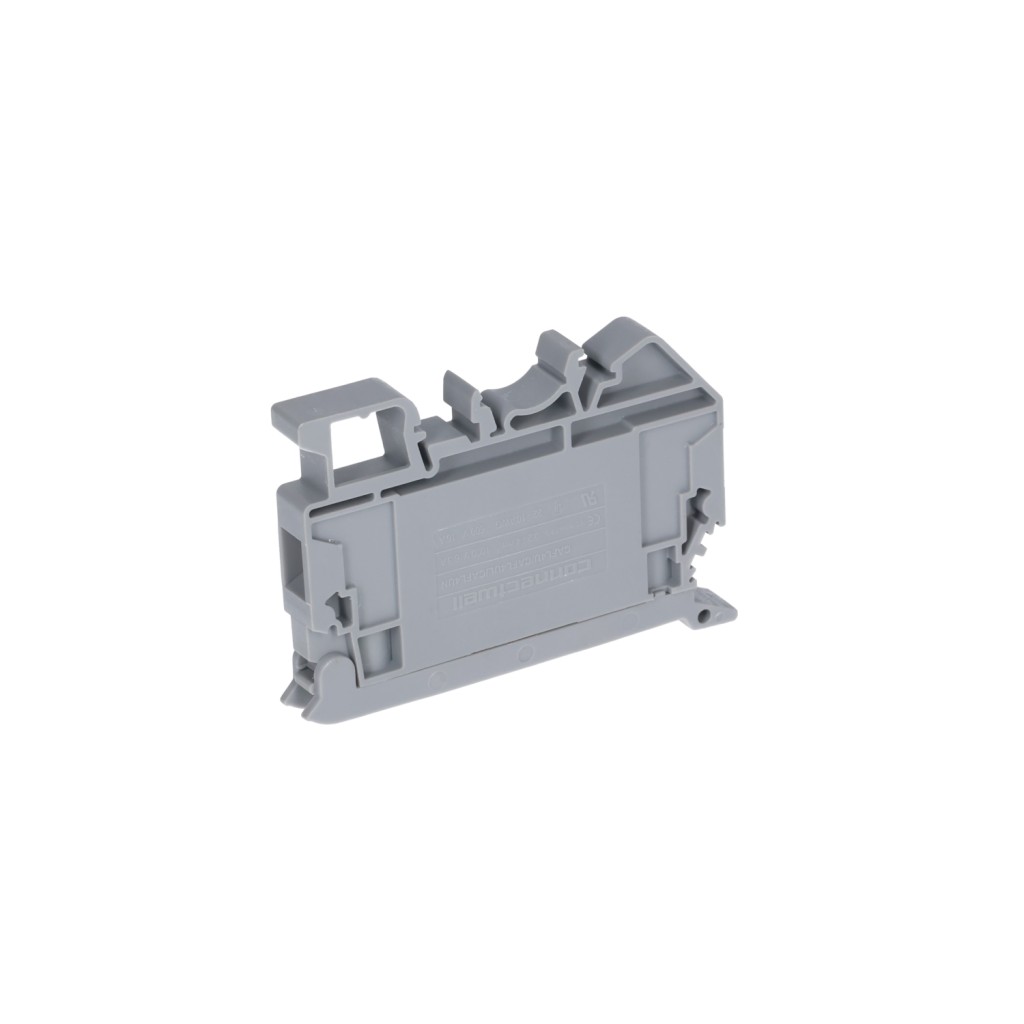

Fuse Blocks, 1/4 x 1 and 1/4 x 1 1/4 in, 9 mm

Hawk Stock

445 reported as of 02/06/24

Factory Stock

27700 reported as of 02/06/24

Approvals

CSA, IEC, UL

Voltage Rating

600V, 1000V, 600V

Type of Connection

2 screw clamps

Torque

7 lb-in, 0.5 Nm, 7 lb-in

Terminal Width

9 mm

Stripping Length

9.5 mm

Spec Sheet

Click Here


Click Here

PACKAGE INFO

STD Pack 25

Insulation Material

Polyamide 6.6

Height x Length

50 x 72 mm

Current Rating

16 A, 6.3 A, 16 A

Wire Range

22-10 AWG, 0.2-4 sq.mm, 22-10 AWG

Not available at this time.

Price Table
