DDFL4U
Total Stock: 40
Factory Lead Time: TBD
RoHs Compliant

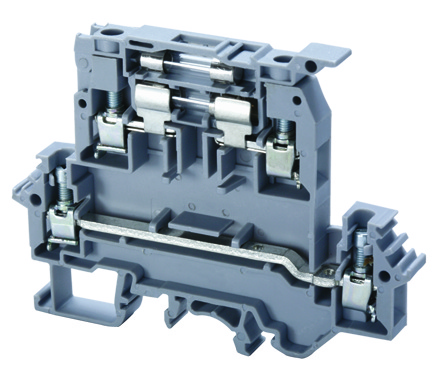

Fuse Blocks, 5 x 20 and 5 x 25 mm, 8 mm
Hawk Electronics
Total Stock: 40
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
40 reported as of 02/06/24
Factory Stock
5450 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
600 V, 800 V, 600 V
Type of Connection
4 screw clamps & 1 tapped hole for cross connection
Torque
7 lb-in, 0.5 Nm, 7 lb-in
Terminal Width
8 mm
Stripping Length
9.5 mm
Spec Sheet
PACKAGE INFO
STD Pack 20
Insulation Material
Polyamide 6.6
Height x Length
66 x 88 mm
Current Rating
Top Level: 6.3 A, 6.3 A, 6.3 A. Bottom Level: 35 A, 32 A, 35 A
Wire Range
22-10 AWG, 0.2-4 sq.mm 22-10 AWG
Series Attributes
Not available at this time.
