Price List
CTL2.5U
Total Stock: 70
Factory Lead Time: TBD
RoHs Compliant

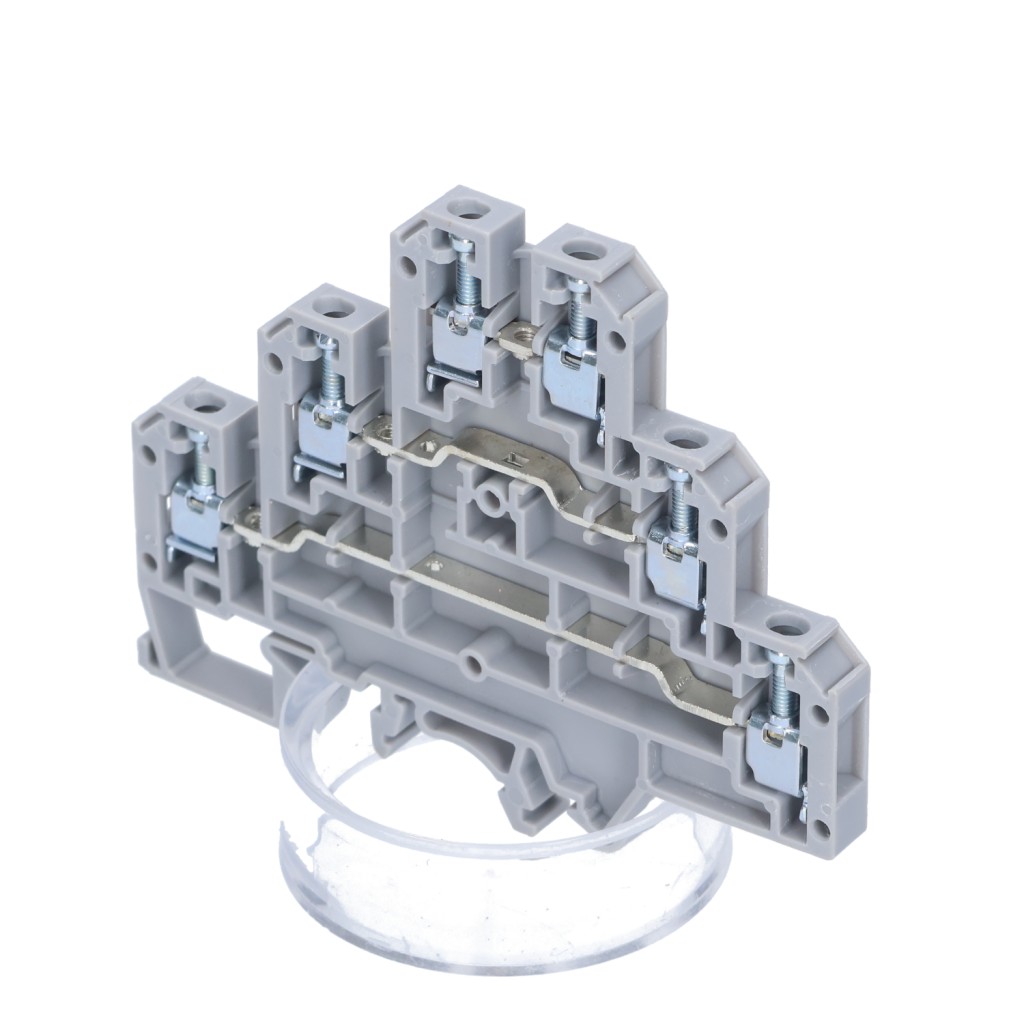

Feed-Through Triple Level 6 mm
Hawk Electronics
Total Stock: 70
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Hawk Stock
60 reported as of 02/06/24
Factory Stock
9700 reported as of 02/06/24
Approvals
CSA, IEC, UL
Voltage Rating
300 V, 500 V, 300 V
Type of Connection
6 Screw clamps & 3 tapped holes for cross connect
Torque
4.5 lb-in, 0.4 Nm, 4.5 lb-in
Terminal Width
6 mm
Stripping Length
9 mm
Spec Sheet
PACKAGE INFO
STD Pack 50
Insulation Material
Polyamide 6.6
Height x Length
67 x 84 mm
Current Rating
25 A, 24 A, 25A
Wire Range
22-12 AWG, 0.2-25 sq,mm, 22-12 AWG
Series Attributes
Not available at this time.
